LM2901EYFV-CE2 is an automotive excellent EMI immunity high-gain and ground sense comparator. This IC is monolithic IC integrated quad independent comparator on a single chip. An operating voltage range is wide with 3V to 36V. This comparator is the most suitable for automotive requirements such as engine control unit, electric power steering, anti-lock braking system and so on because it has features of low supply current. Furthermore, this has the advantage of EMI tolerance. It makes easier replacing with conventional products or simpler designing EMI. Application includes engine control unit, electric power steering (EPS), anti-lock braking system (ABS), automotive electronics.
- SSOP-B14 package, operating temperature range from -40°C to +150°C
- 1.2mA low supply current (typ)
- 5nA input offset current (typ), 50nA input bias current (typ)
- EMARMOUR� series, AEC-Q100 qualified (grade 1)
- Operable from almost GND level for input
- Standard comparator pin-assignments
- Low supply current
- Wide operating supply voltage range
- Wide operating temperature range
Other details
| Brand |
ROHM |
| Part Number |
LM2901EYFV-CE2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

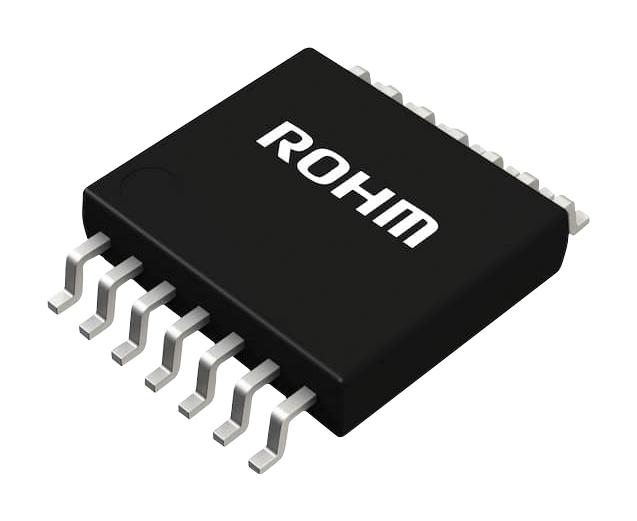

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
