BV1HLC45EFJ-CE2 is an automotive IPD series built-in output diagnosis 1ch high-side switch. It has a built-in overcurrent limit function, thermal shutdown protection function, open load detection function, low power output-OFF function, and short-to-VCC detection function. It is equipped with a diagnostic output function for abnormality detection. Application includes resistance load, inductance load and capacitance load for automotive application.

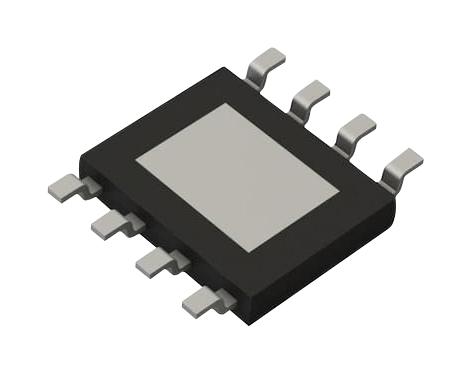

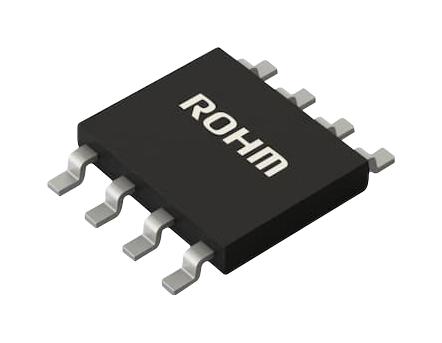

- HTSOP-J8 package, operating temperature range from -40 to +150°C
- 6V to 28V power supply operating range, 45mohm ON-resistance (Tj = 25°C, typ)
- 2.5A overcurrent limit (min), 0.5µA standby current (Tj = 25°C, max)
- 120mJ active clamp tolerance (Tj = 25°C), built-in dual TSD
- AEC-Q100 qualified (grade 1), built-in overcurrent protection function (OCP)
- Built-in thermal shutdown protection function (TSD), built-in open load detection function
- Built-in short-to-VBB detection function, built-in low voltage output OFF function (UVLO)
- Built-in reverse battery connection protection, built-in diagnostic output
- Low on-resistance single Nch MOSFET switch
- Monolithic power management IC with control unit (CMOS) and power MOSFET mounted on a single chip
Other details
| Brand |
ROHM |
| Part Number |
BV1HLC45EFJ-CE2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
