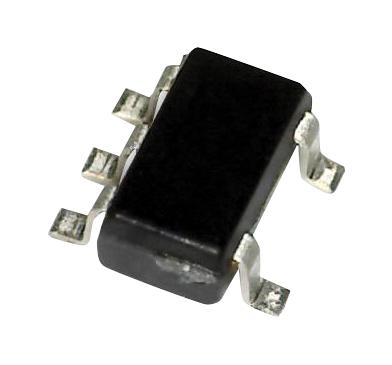

BU7250G-TR is a input full swing, open drain output low supply current CMOS comparator. It is a low supply current and open drain output comparator. It has an expanded operating temperature range. This features low operating supply voltage of +1.8V to +5.5V, low supply current and extremely low input bias current. Applications include battery monitor, mobile equipments, limit comparator and consumer electronics.
- Low operating supply voltage, low supply current
- High speed operation, input full swing
- Open drain output type, wide operating temperature range
- Supply voltage is 7V
- 1 channel
- 1mV input offset voltage at 25°C, 90dB large signal voltage gain at RL=10Kohm
- Input offset current of 1pA (typ), input bias current of 1pA (typ) at 25°C
- 80dB common-mode rejection ratio, 80dB power supply rejection ratio
- SSOP-5 package
- Operating temperature range from -40°C to +85°C
Other details
| Brand |
ROHM |
| Part Number |
BU7250G-TR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
