BU7230SG-TR is a input full swing, open drain output low supply current CMOS comparator. It is an input full swing and open drain comparator. BU7230SG has an expanded operating temperature range. This features low operating supply voltage of +1.8V to +5.5V, low supply current and extremely low input bias current. Applications include battery monitor, mobile equipments, limit comparator and consumer electronics.
- Low operating supply voltage, low supply current
- Input full swing, open drain output type
- Wide operating temperature range, low Input bias current
- Operating supply voltage (single supply +1.8V to +5.5V, split supply ±0.9V to ±2.75V)
- 5µA supply current
- Temperature range from -40°C to +105°C
- Input offset current of 1pA (typ), input bias current of 1pA (typ)
- SSOP5 package
- 1mV input offset voltage at 25°C, 90dB large signal voltage gain at RL=10Kohm
- 80dB common-mode rejection ratio, 80dB power supply rejection ratio
Other details
| Brand |
ROHM |
| Part Number |
BU7230SG-TR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

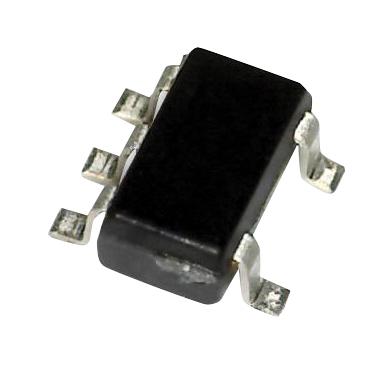

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
