Description

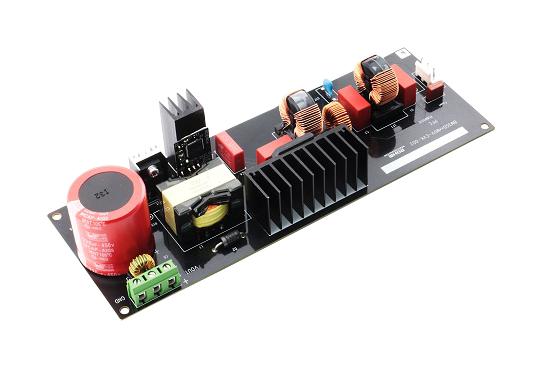

BM3G007MUV-EVK-002 is a power factor correction 240W 400V BM3G007MUV reference board. BM3G007MUV has a built-in GaN HEMT (650V 70mohm), driver and protection circuit. By using this GaN power stage, achieved a maximum efficiency of 97.8%. The BD7695FJ which is BCM method PFC controller IC is used. The BD7695FJ supplies the system which is suitable for all of products that requires PFC.
- Reference board outputs 400V voltage from the input of 90VAC to 264VAC
- Output current supplies up to 0.6A
- Output voltage range from 376 to 415V
- Input frequency range from 47Hz to 63Hz
- THD is 8.4% typical
- Max output ripple voltage is 20Vpp
- BCM is used for PFC part and Zero current detection reduces both switching loss and noise
- Hold time is 20ms (min) at VOUT min 280V
- 0.97 power factor (PF) at AC230V, IOUT = 0.6A
- Operating temperature range from -10 to +55°C
Product details
Other details
| Brand | ROHM |
| Part Number | BM3G007MUV-EVK-002 |
| Quantity | Each |
| Technical Data Sheet EN |  |
