BM2P151X-Z is a PWM type DC/DC converter for AC/DC. It provides an optimum system for all products that include an electrical outlet. It enables simpler design of a high effective converter specializing in non-isolation. By a built-in start-up circuit that tolerates 650V, this IC contributes to low power consumption. A current detection resistor as internal device realizes the small power supply designs. Since a current mode control is utilized, the current can be restricted in each cycle and an excellent performance is demonstrated in the bandwidth and transient response. The switching frequency is fixed to 65KHz. A frequency hopping function is also on chip, and it contributes to low EMI. In addition, a built-in super junction MOSFET which tolerates 650V makes the design easy. It is used in application such as household appliances such as LED lights, air-conditioners and cleaners etc.
- PWM current mode method, frequency hopping function
- Burst operation at light load, Built-in 650V super junction MOSFET
- VCC UVLO (under voltage lockout), VCC OVP (over voltage protection)
- Over current detection function per cycle, soft start function
- VCC control voltage is 15V
- Maximum duty cycle is 40% typical at (Ta = 25°C)
- Current at switching operation is 850µA typical
- Current at burst operation is 450µA typical
- MOSFET ON resistor is 1.5 ohm typical
- Operating temperature is -40°C to +105°C, package style is DIP7K
Other details
| Brand |
ROHM |
| Part Number |
BM2P151X-Z |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

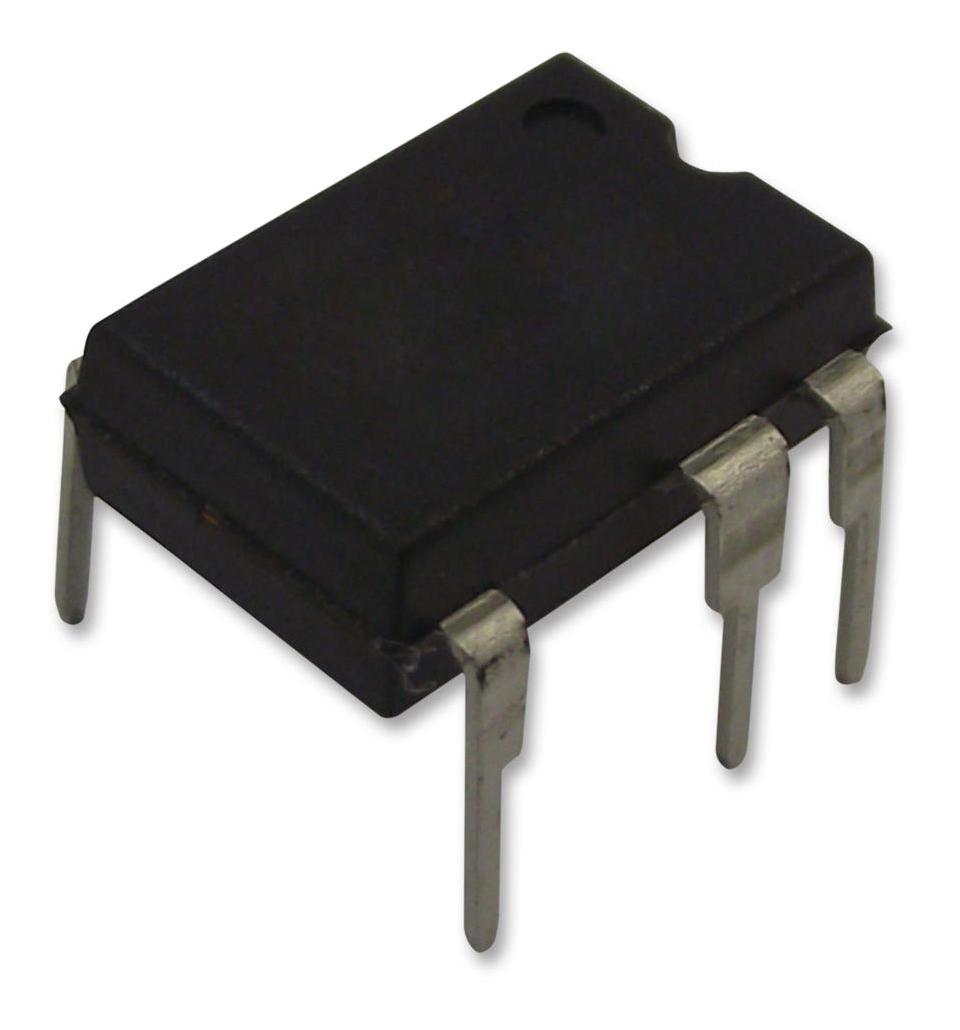

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
