BM2P10B3J-Z is a BM2P10xxJ-Z series built-in switching MOSFET PWM-type DC/DC converter IC. This PWM-type DC/DC converter for AC/DC supplies the optimum system for all products in which an outlet is present. It is compatible with both insulated and non-insulated, and various types of low-power consumption converters can be easily designed. The built-in 730V startup circuit contributes to low power dissipation. A highly flexible power supply design is achieved by externally installing a current detection resistor for switching. Because of the use of current mode control, the current is limited every cycle, providing excellent performance in bandwidth and excessive response. The switching frequency is fixed at 100KHz. When turned light load, the frequency is reduced to achieve high efficiency. Built-in frequency hopping function contributes to low EMI. Built-in 730V switching MOSFET enables easy designing.
- PWM current mode control, frequency hopping function
- Burst operation at light load, frequency reduction function
- Built-in 730V startup circuit, built-in 730V switching MOSFET
- VCC UVLO (under voltage lockout), VCC OVP (over voltage protection)
- SOURCE pin open protection, SOURCE pin function of leading edge blanking
- Over-current detection function per cycle, over current detection AC compensation function
- Soft start function, secondary over current protection circuit
- Operating power supply voltage range VCC pin is 8.9V to 26V, 3ohm MOSFET ON resistance
- Frequency range from 100KHz (typical), operating temperature range from -40°C to +105°C

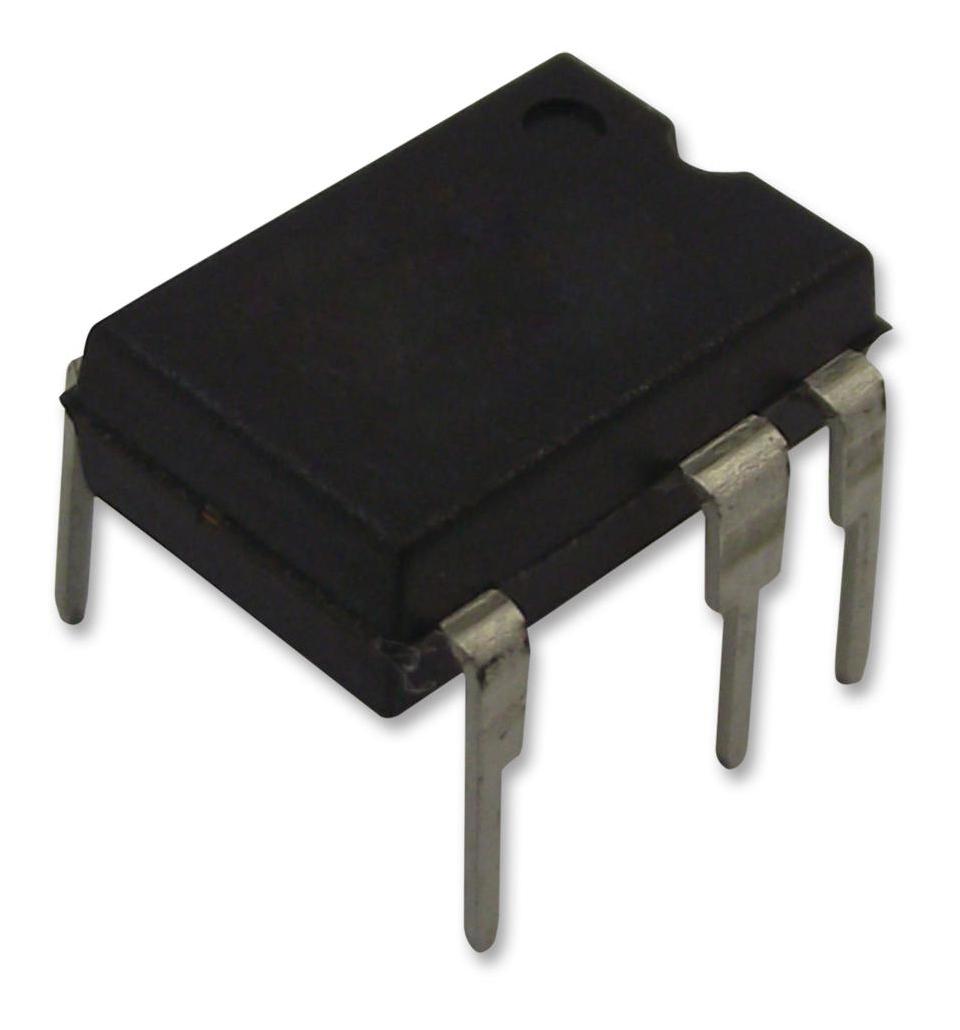

- Dimension is 9.27mm W (typ) x 6.35mm D (typ) x 8.63mm H (max), DIP7K package
Other details
| Brand |
ROHM |
| Part Number |
BM2P10B3J-Z |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
