BM1390GLV-Z is piezo-resistive pressure sensor. It performs temperature compensation for MEMS inside chip internally, so it's very easy to get pressure information. BM1390GLV-Z realizes waterproof by potting gel inside to protect. Applications include smartphone, healthcare, mobile device (e.g. game).
- Pressure range is from 300hPa to 1300hPa
- Built-in temperature compensation function
- I2C bus interface (f/s mode support)
- Built-in FIFO

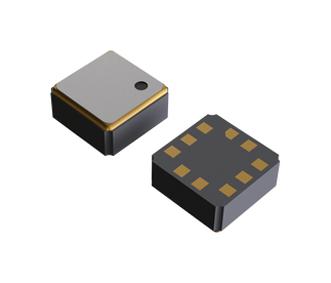

- Small package RLGA10VG020T (2mm x 2mm x 1mm (W x D x H))
- Waterproof
- Relative pressure accuracy: ±0.06hPa(typ), absolute pressure accuracy: ±1hPa(typ)
- Operating temperature range from -40°C to +85°C
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
ROHM |
| Part Number |
BM1390GLV-ZTR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
