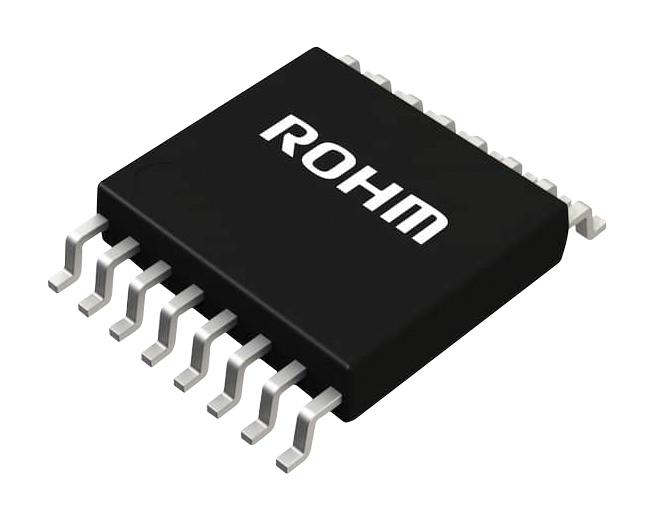

BD88030FV-E2 is a monolithic IC for gas water heater with two channel 4-bit D/A converters for water heaters, a pseudo-sine wave output circuit, and an external analogue-signal detector. Application includes water heater.
- SSOP-B16 package, operating temperature range from -20°C to +80°C
- 4.5V to 5.5V operating power supply voltage range
- 2.5mA circuit current (typ), 250KHz detection frequency (typ)
- Built-in 2 channels of 4-bit D/A converter
- Built-in pseudo-sine wave output circuit (divided by 1/16 of the external clock)
- External analogue signal detection circuit
- Built-in analogue switch 2 channels
- Built-in electrostatic protection circuit
Other details
| Brand |
ROHM |
| Part Number |
BD88030FV-E2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
