BD82024FVJ is a single channel high side switch IC employing N-channel power MOSFET with low on resistance and low supply current for the power supply line of universal serial bus (USB). This IC has a built-in over current detection circuit, thermal shutdown circuit, under voltage lockout and soft start circuits. It is widely used in application such as USB hub in consumer appliances, PC, PC peripheral equipment, and so forth etc.
- Over-current protection is 2.5A
- Control input logic is active-high
- Output discharge function, reverse current protection when power switch off
- Thermal shutdown, open-drain fault flag output
- Under-voltage lockout, OCP fast response
- Soft-start circuit, ESD protection
- Input voltage range is 2.8V to 5.5V
- ON resistance (VIN=5V) is 90Mohm typical
- Standby current is 0.01µA typical
- Operating temperature is -40C to +85C, package style is TSSOP-B8J
Other details
| Brand |
ROHM |
| Part Number |
BD82024FVJ-E2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

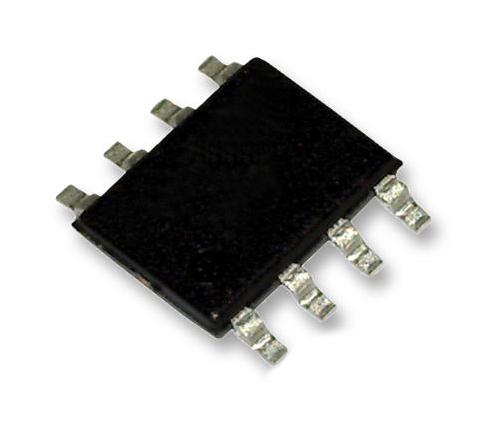

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
