| ₹ 533.38 includes GST and import duties. | |
| B2B customers can avail ₹ 81.34 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

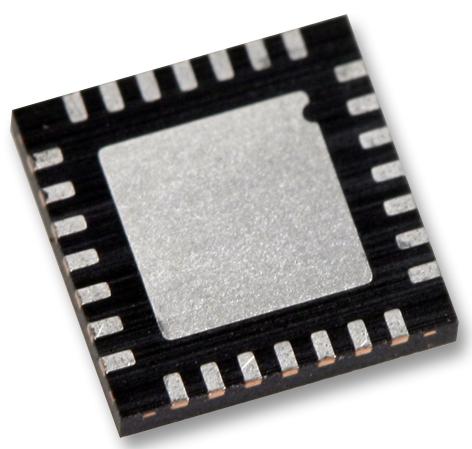

This is a LED Driver, Boost, Buck-Boost, 4 Outputs, 4.5V to 35V in, 2.2MHz Switch, 40V/480mA out, VQFN-28 product from ROHM with the model number BD81A74MUV-ME2
Product details
| Device Topology | Boost, Buck-Boost |
| Input Voltage Min | 4.5V |
| Input Voltage Max | 35V |
| Output Voltage Max | 40V |
| Output Current Max | 480mA |
| Switching Frequency | 2.2MHz |
| No. of Outputs | 4Outputs |
| IC Mounting | SMD |
| Driver Case Style | VQFN |
| No. of Pins | 28Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | - |
| Automotive Qualification Standard | AEC-Q100 |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | ROHM |
| Part Number | BD81A74MUV-ME2 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 522.71 |
| 3-5 | ₹ 517.38 |
| 5-10 | ₹ 506.71 |
| 10+ | ₹ 496.04 |
Bulk discount will be automatically applied during checkout based on quantity.
