BD7F105EFJ-CE2 is an isolated type fly-back converter IC with integrated switching MOSFET for automotive. This is an opto-coupler-less isolated flyback converter. Feedback circuit by optocouplers or the auxiliary winding of transformers becomes unnecessary, contributing to reduction of set parts. Furthermore, the adoption of original adapted ON-time control technology enables fast load response. In addition, the various protection function realizes the designs of isolated power supply application for high reliability. Application includes automotive isolated power supplies (E-Comp, Inverter etc), industrial isolated power supplies.
- HTSOP-J8 package, operating ambient temperature range from -40°C to +125°C
- 3.4V to 42.0V input voltage range (VIN pin), 363KHz switching frequency (typ)
- Reference voltage precision is ±2.8% (typ), 0µA shutdown current (typ)
- AEC-Q100 qualified (grade 1)
- No need for optocoupler and third winding of transformer
- Set output voltage with two external resistors and ratio of transformer turns
- Adopt of original adapted ON-time control technology fast load response
- High efficiency at light load mode (PFM operation)
- Shutdown function / enable control, built-in 60V switching MOSFET
- Frequency spectrum spread, soft start function
Other details
| Brand |
ROHM |
| Part Number |
BD7F105EFJ-CE2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

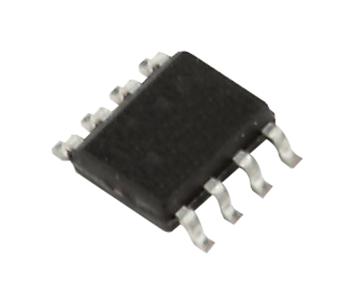

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
