| ₹ 236.17 includes GST and import duties. | |
| B2B customers can avail ₹ 36.02 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

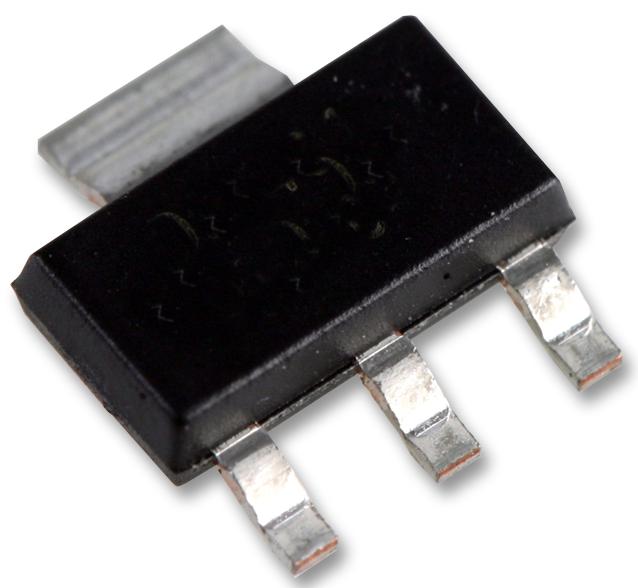

This is a Fixed LDO Volt- Regulator, AEC-Q100 Qualified, 4.37V-45V, 600mV Dropout, 3.3Vout, 0.2Aout, SOT-223-4 product from ROHM with the model number BD733L2FP3-CE2
Product details
| Output Type | Fixed |
| Input Voltage Min | 4.37V |
| Input Voltage Max | 45V |
| Fixed Output Voltage Nom. | 3.3V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 200mA |
| Dropout Voltage Vdo | 600mV |
| LDO Regulator Case Style | SOT-223 |
| No. of Pins | 4Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | 3.3V 200mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | To Be Advised |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | ROHM |
| Part Number | BD733L2FP3-CE2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 231.45 |
| 3-5 | ₹ 229.08 |
| 5-10 | ₹ 224.36 |
| 10+ | ₹ 219.64 |
Bulk discount will be automatically applied during checkout based on quantity.
