BD730L05G-CTR is a BD7xxL05G-C series for automotive LDO regulator is designed as low current consumption products for power supplies in various automotive applications. This product is designed for up to 45V absolute maximum supply voltage and operate until 50mA output current with low current consumption of 6µA (Typ). It can regulate the output at a very high accuracy of ±2%. This device features an integrated over current protection to keep the device from a damage that is caused by short-circuit or overload. This product also integrates a thermal shutdown protection to avoid the damage from overheating. Furthermore, low ESR ceramic capacitors are sufficiently applicable for the output phase compensation. Application includes power train, body car infotainment etc.
- SSOP5 package, wide temperature range from (Tj) -40°C to +150°C
- 3V to 45V wide operating input voltage range, 6µA low current consumption (Typ)
- 50mA output current (Max), ±2% high output voltage accuracy
- AEC-Q100 Qualified (grade 1)
- Qualification planned for automotive application
- Over current protection (OCP)
- Thermal shutdown protection (TSD)
Other details
| Brand |
ROHM |
| Part Number |
BD730L05G-CTR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

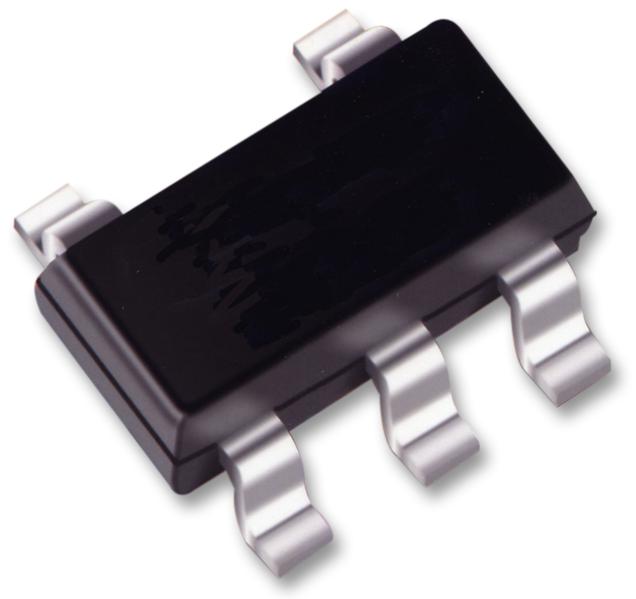

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
