BD6528HFV is a high side switch IC using an N-channel power MOSFET and used as a power switch for memory card slot. This switch IC has an ON-resistance of 110Mohm for device. Operations using low input voltage (VIN >= 2.7V) are possible for various switch applications. It is widely used in application such as load switches for mobile phone, digital still camera, PDA, MP3 player, PC, etc.
- Built-in single N-channel MOSFET with low on-resistance
- Low-voltage switching capability, soft-start function
- Output discharge circuit, reverse current flow blocking at switch off condition
- Input voltage range is 2.7V to 4.5V
- Output current is 0.5A maximum
- Standby current is 0.01µA typical
- Operating current is 20µA typ at (VEN = 1.2V)
- Switch leakage current is 0.01µA typ at (VEN = 0V, VOUT = 0V)
- Operating temperature is -25°C to +85°C

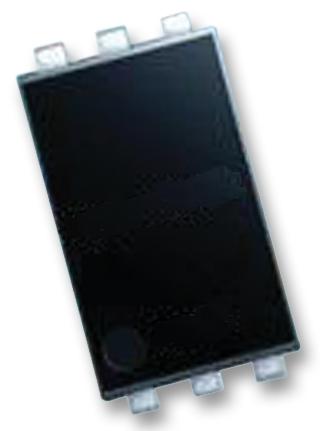

- Package style is HVSOF6
Other details
| Brand |
ROHM |
| Part Number |
BD6528HFV-TR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
