BD5310xG-CZ series is an automotive S pole detection hall effect switch. This IC with wide VDD voltage range and wide operation temperature range. It can detect magnetic field with superior sensitivity stability by using the chopper stabilized way. Typical applications include open and close detection, attaching detection, proximity detection, position sensing.
- AEC-Q100 qualified
- Nch open drain
- Output overcurrent protection
- Over temperature protection
- Reverse supply voltage protection
- Undervoltage lockout
- Input power supply voltage range from 2.7V to 38V
- 28mT operate point (typ)
- 1.3mA (typ) supply current, 10KHz (max) magnetic signal input frequency
- Operating temperature range from -40°C to +105°C and SSOP3A package
Other details
| Brand |
ROHM |
| Part Number |
BD53108G-CZTL |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

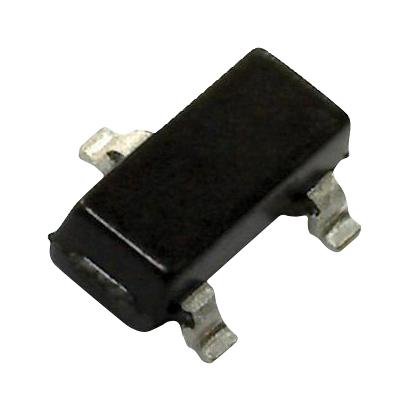

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
