BD4xxS2-C series automotive 45V input and fixed output LDO regulator. It is ideal for applications requiring a direct connection to the battery and a low current consumption. Ceramic capacitors can be used for compensation of the output capacitor phase. Furthermore, this IC also features overcurrent protection to protect the device from damage caused by short-circuiting and an integrated thermal shutdown to protect the device from overheating at overload conditions. Typical applications include body, audio system and navigation system.
- Qualified for automotive applications
- Wide operating input range from 3V to 42V
- Low quiescent current of 40µA (typ)
- Output current of 200mA
- High output voltage accuracy is ±2%
- Includes enable input
- ±2000V ESD withstand voltage (HBM)
- Functional safety supportive automotive products
- 5V output voltage

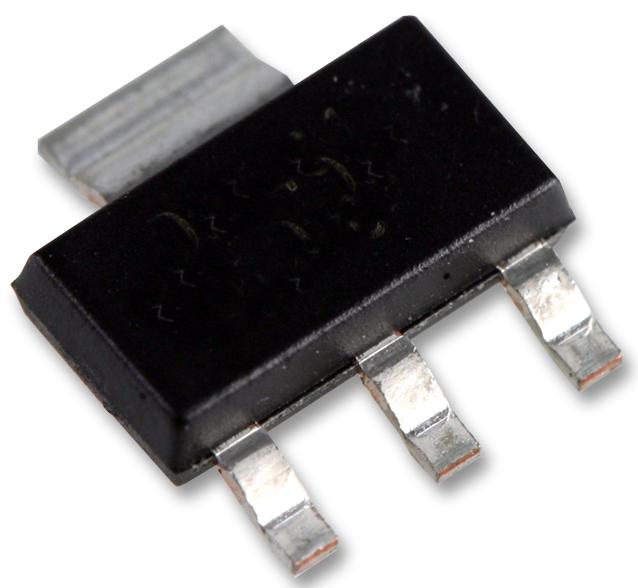

- Wide temperature range from -40°C to +150°C and SOT223-4 package
Product details
| Output Type:
Fixed
|
| Input Voltage Min:
3V
|
| Input Voltage Max:
42V
|
| No. of Outputs:
1Outputs
|
| Output Voltage Nom:
5V
|
| Output Voltage Min:
-
|
| Output Voltage Max:
-
|
| Polarity:
Positive Output
|
| Output Current Max:
200mA
|
| Dropout Voltage Typ @ Current:
160mV
|
| IC Mounting:
Surface Mount
|
| IC Case / Package:
SOT-223
|
| No. of Pins:
4Pins
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
150°C
|
| Product Range:
5V 200mA LDO Voltage Regulators
|
Other details
| Brand |
ROHM |
| Part Number |
BD450S2WFP3-CE2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
