Description

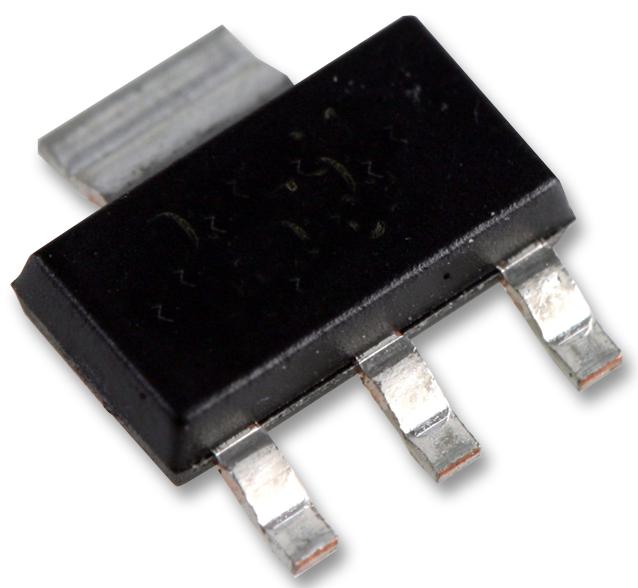

This is a Fixed LDO Volt- Regulator, AEC-Q100 Qualified, 4.3V-42V, 200mV Dropout, 3.3Vout, 0.2Aout, SOT-223-4 product from ROHM with the model number BD433M2FP3-CE2
Product details
| Output Type | Fixed |
| Input Voltage Min | 4.3V |
| Input Voltage Max | 42V |
| Fixed Output Voltage Nom. | 3.3V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 200mA |
| Dropout Voltage Vdo | 200mV |
| LDO Regulator Case Style | SOT-223 |
| No. of Pins | 4Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 150°C |
| Product Range | 3.3V 200mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | To Be Advised |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | ROHM |
| Part Number | BD433M2FP3-CE2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
