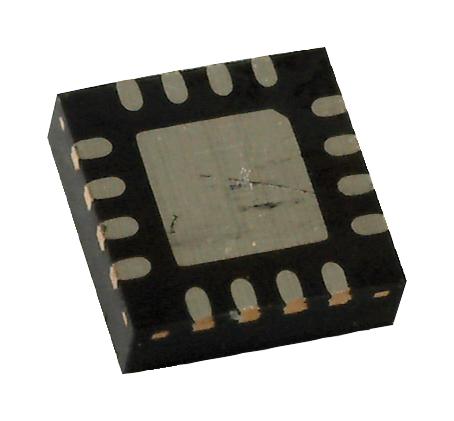

The BD39040MUF-CE2 is a supervisor IC with quad power good, watchdog timer and reset in 16 pin VQFN-V package. This IC enables existing system to improve its ASIL level easily.
- AEC-Q100 qualified
- Quad power good for external inputs
- Overvoltage detection (OVD)
- Undervoltage detection (UVD)
- Adjustable window watchdog timer(WDT)
- Reset for VDD input (POR)
- Built-in self test (BIST)
- VDD input voltage range from 2.7V to 5.5V
- Operating temperature range from -40°C to +125°C
Other details
| Brand |
ROHM |
| Part Number |
BD39040MUF-CE2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
