Description

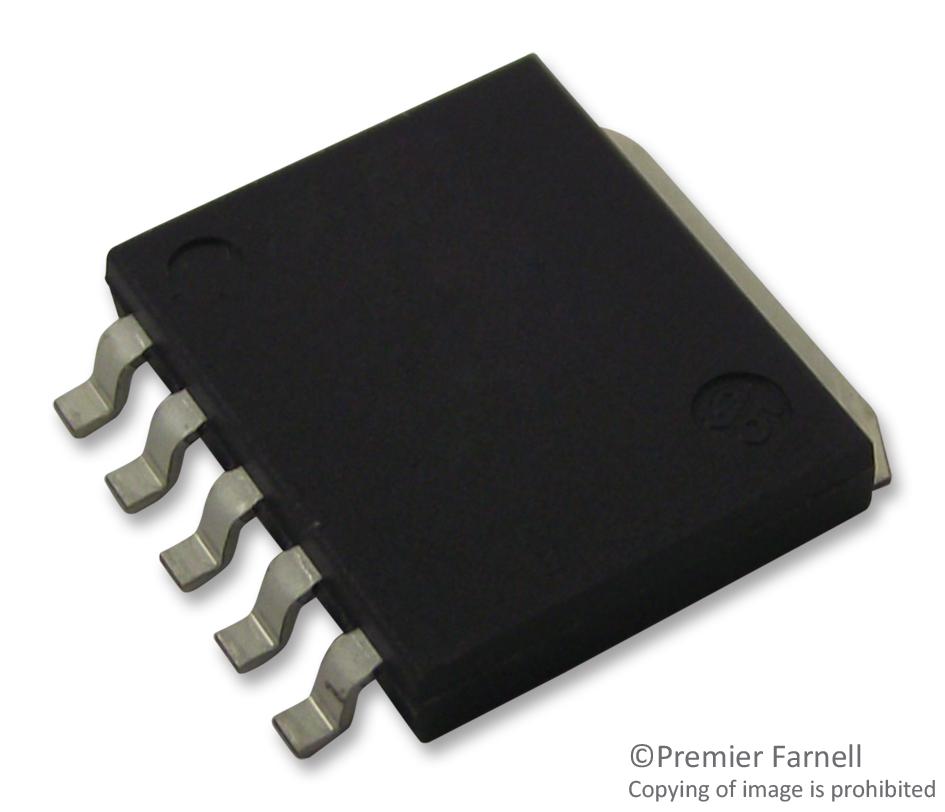

This is a Adjustable LDO Voltage Regulator, 4.5V to 36V, 250mV drop, 2.8V to 12V/500mA out, HRP-5 product from ROHM with the model number BD3575YHFP-MTR
Product details
| Output Type | Adjustable |
| Input Voltage Min | 4.5V |
| Input Voltage Max | 36V |
| Fixed Output Voltage Nom. | - |
| Adjustable Output Voltage Min | 2.8V |
| Adjustable Output Voltage Max | 12V |
| Output Current | 500mA |
| Dropout Voltage Vdo | 250mV |
| LDO Regulator Case Style | HRP |
| No. of Pins | 5Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | Adj 500mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | To Be Advised |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | ROHM |
| Part Number | BD3575YHFP-MTR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
