Description

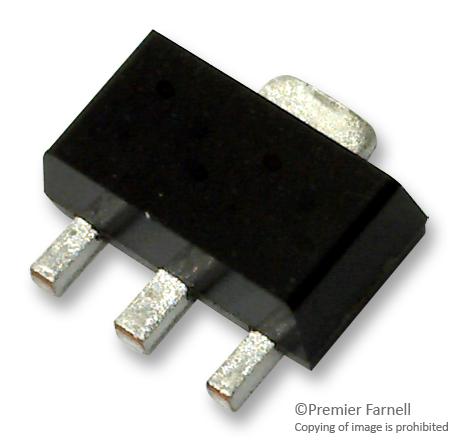

This is a Fixed LDO Voltage Regulator, 6.3V to 25V, 1V drop, 3.3V/100mA out, SOT-89-3 product from ROHM with the model number BD33FA1FP3-ZTL
Product details
| Output Type | Fixed |
| Input Voltage Min | 6.3V |
| Input Voltage Max | 25V |
| Fixed Output Voltage Nom. | 3.3V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 100mA |
| Dropout Voltage Vdo | 1V |
| LDO Regulator Case Style | SOT-89 |
| No. of Pins | 3Pins |
| Operating Temperature Min | -25°C |
| Operating Temperature Max | 85°C |
| Product Range | 3.3V 100mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | ROHM |
| Part Number | BD33FA1FP3-ZTL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 59.55 |
| 3-5 | ₹ 58.95 |
| 5-10 | ₹ 57.73 |
| 10+ | ₹ 56.52 |
Bulk discount will be automatically applied during checkout based on quantity.
