BD1HDU50EFJ-CE2 is a BD1HxU50 series automotive 1ch high-side switch. It has a built-in overcurrent protection circuit, thermal shut down (TSD) circuit, open load detection circuit, under voltage lockout circuit, and has diagnostic (ST) output function at the time during abnormal detection. Typical applications are automotive (air conditioner, body equipment, meter, etc).
- Built-in overcurrent protection circuit, built-in thermal shut down (TSD)
- Built-in open load detection circuit (when output is OFF)
- Possibility to control directly from CMOS logic IC, low standby current
- Built-in under voltage lock out circuit, built-in diagnostic (ST) output function
- Low on resistance of RDS(ON)=500mohm (typ) (VDD=12V, Ta=25°C, Io=0.25A)
- Monolithic power IC that has a built in control part (CMOS) and a power MOSFET on 1chip
- 1ch high-side switch for the mechanical relay coil drive
- AEC-Q100 grade1 qualified
- Operating voltage range from 4V to 18V
- Overcurrent limit (typ) is 1.45A, active clamp energy (25°C) is 33mJ
Other details
| Brand |
ROHM |
| Part Number |
BD1HDU50EFJ-CE2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

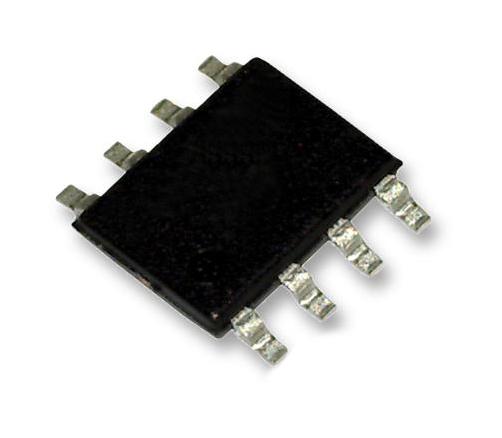

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
