| ₹ 776.48 includes GST and import duties. | |
| B2B customers can avail ₹ 118.41 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

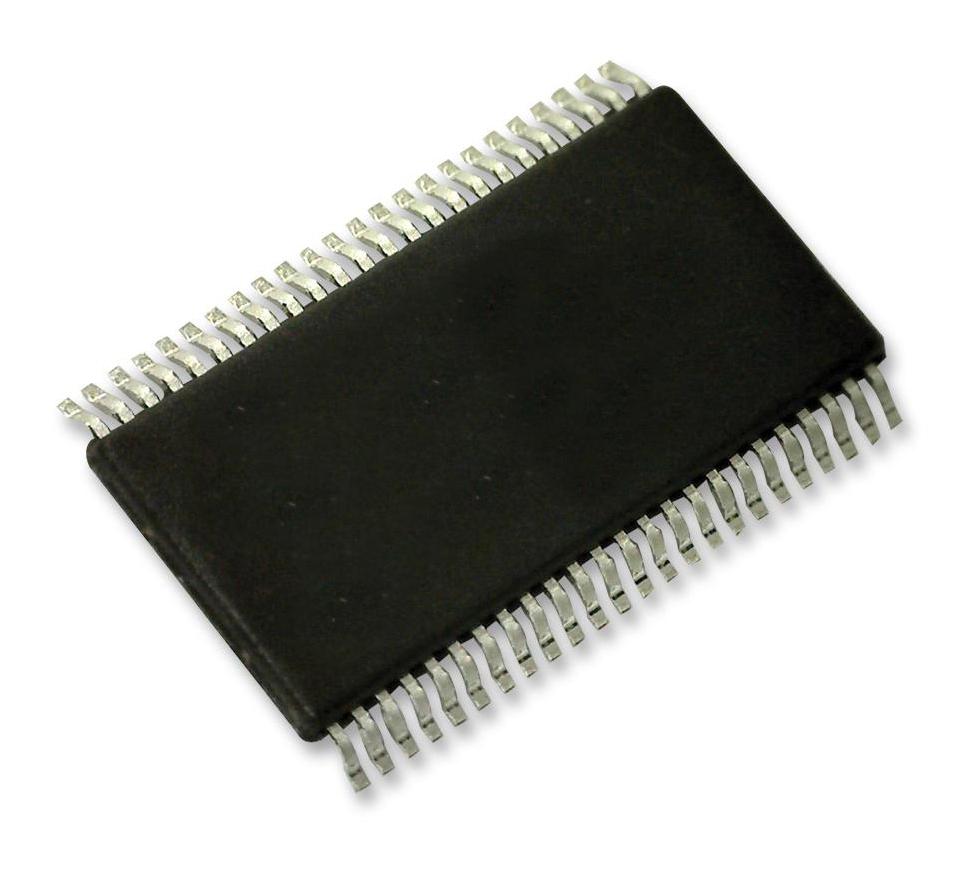

BD18332EUV-ME2 is a 24-channel constant current driver with 8- bit PWM dimming and 8bit local DC dimming individual channels. Communication with ?-controller is available via UART. Applications include rear lamps (+ animation), position/DRL (+ animation), turn (+ animation).
- Nano Cap� integrated, AEC-Q100 qualified
- Integrated 24CH LED constant current driver, UART interface, independent 4bit delay function
- Independent 8bit PWM dimming function, independent 8bit local DC dimming function
- LSI protection function (UVLO, TSD), LED abnormality detection function (open/short)
- LED cathode short detection function, integrated abnormality output the FAILB pin
- Operating input voltage range from 4.5V to 40.0V
- Circuit current is 12.5mA typ at (VEN = high, 24CH current driver OFF)
- Standby current is 7?A typ at (VEN = low, VIN = 13V, Tj= -40°C to +150°C)
- Dimension W (Typ) x D (Typ) x H (Max is 12.5mm x 8.1mm x 1.0mm
- Operating temperature range from -40°C +125°C, HTSSOP-C48 package
Product details
Other details
| Brand | ROHM |
| Part Number | BD18332EUV-ME2 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 760.95 |
| 3-5 | ₹ 753.19 |
| 5-10 | ₹ 737.66 |
| 10+ | ₹ 722.13 |
Bulk discount will be automatically applied during checkout based on quantity.
