BD14210G-LATR is a current sense amplifier. This is the product guarantees long time support in industrial market. This device operates from a single 2.7V to 5.5V power supply. It has wide common mode voltage range from -0.2V to +26V, outputs analogue voltage. The gain is 20V/V. The matched gain resistor minimizes gain error and realizes low offset voltage. The input bias current is 1µA (Typ) at typical condition. There is no need to adjust the gain error. Applications includes industrial equipment, telecom equipment and overcurrent detection.
- Typical quiescent current is 170µA, maximum gain accuracy is ±1.0%
- Long time support product for industrial applications
- Wide common mode voltage range
- High accuracy, low offset voltage
- Low input bias current

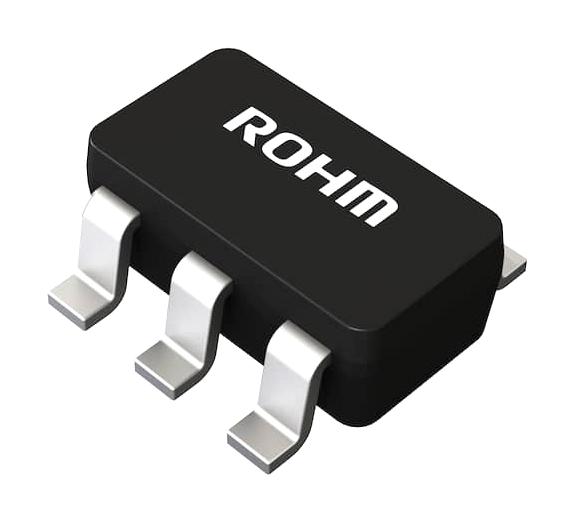

- SSOP6 package
- Operating temperature range from -40°C to +125°C
Other details
| Brand |
ROHM |
| Part Number |
BD14210G-LATR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
