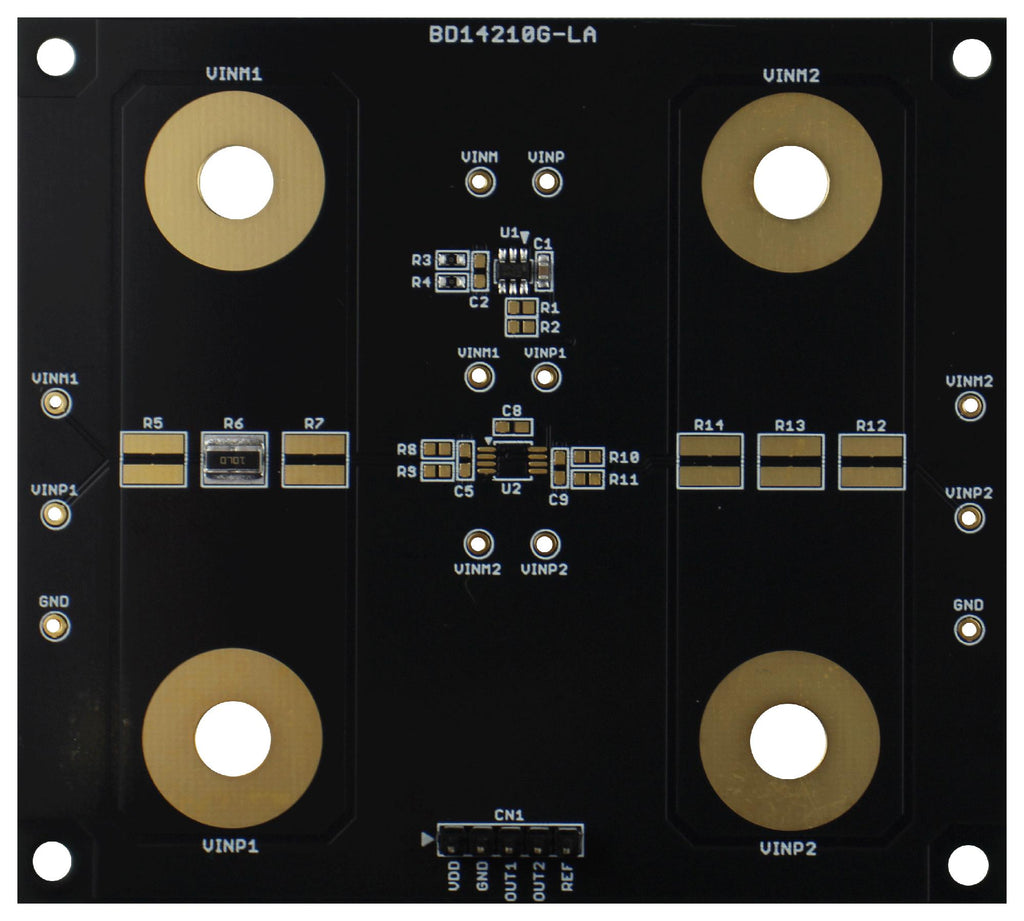

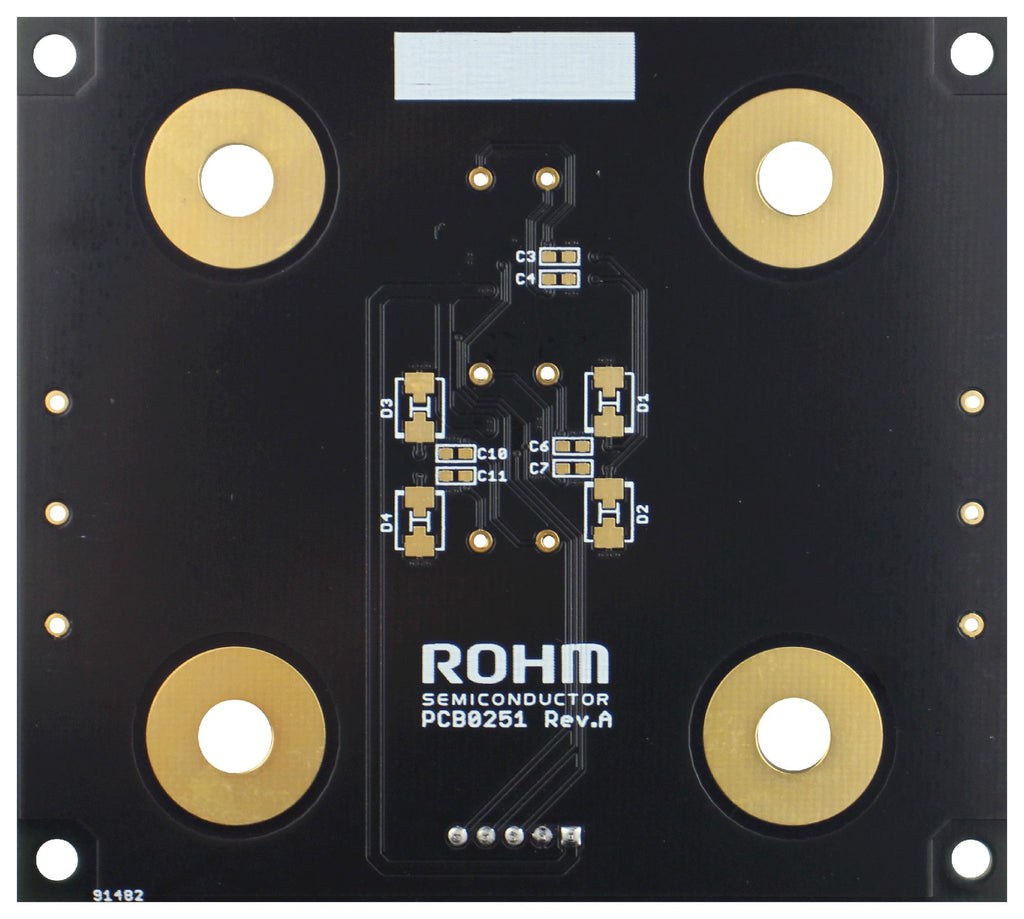

BD14210G-EVK-001 is an evaluation board for BD14210G-LA, which is ROHM's current sense amplifier. BD14210G-LA is a current sense amplifier. This is the product guarantees long time support in Industrial market. This device operates from a single 2.7V to 5.5V power supply. It has wide common mode voltage range from -0.2V to +26V, outputs analogue voltage. The gain is 20 V/V. The matched gain resistor minimizes gain error and realizes low offset voltage. The input bias current is 1 µA (Typ) at typical condition. There is no need to adjust the gain error.
- Long time support product for industrial applications
- Wide common mode voltage range
- High accuracy
- Low offset voltage
- Low input bias current
- 90mm x 80mm x 1.6mm size
Other details
| Brand |
ROHM |
| Part Number |
BD14210G-EVK-001 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
