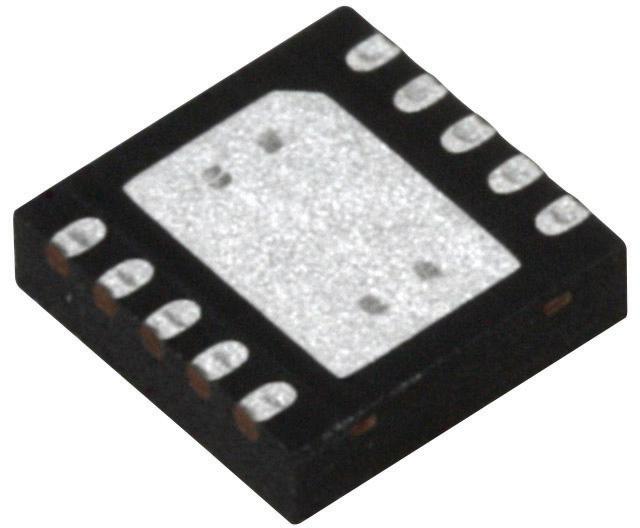

BD00JC0MNUX-ME2 is a LDO regulator with power good. It is a low-voltage output 1ch linear regulator IC that operates from a very low input supply and offers ideal performance in low-input voltage to low-output voltage applications. It has a built-in N-MOSFET power transistor that minimizes the input-to-output voltage differential producing a very small ON resistance (RON=200mR) level. By lowering the dropout voltage in this way, the IC can operate even at a high current (Iomax=1A) with very low power loss. As a result, this eliminates the need for a switching regulator and its associated components. It is designed for small packages that cause cost reduction. Its output voltage can be varied from 0.65V to 2.7V and it has a soft start (NRCS) function that enables an output voltage ramp-up which can be set to whatever power supply sequence is required.
- High output voltage accuracy is ±1%
- Built-in VCC under voltage lock out circuit
- With soft start function (NRCS), low ON resistance
- Built-in over-current protection circuit, built-in thermal shut down circuit (TSD)
- Variable output, with tracking function
- Output current is 1.0A variable output
- Operating temperature rating range from -40°C to +105°C
- Small package VSON010X3030
- Dimension is 3.0mm W (typ) x 3.0mm D (typ) x 0.6mm H (max)
- 3.0V to 5.5V input voltage 1 (VCC), 0.95V to 4.5V input voltage 2 (VIN)
Product details
| Output Type:
Adjustable
|
| Input Voltage Min:
3V
|
| Input Voltage Max:
5.5V
|
| No. of Outputs:
1Outputs
|
| Output Voltage Nom:
-
|
| Output Voltage Min:
650mV
|
| Output Voltage Max:
2.7V
|
| Polarity:
Positive Output
|
| Output Current Max:
1A
|
| Dropout Voltage Typ @ Current:
200mV
|
| IC Mounting:
Surface Mount
|
| IC Case / Package:
VSON010X3030
|
| No. of Pins:
10Pins
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
105°C
|
| Product Range:
Adj 1A LDO Voltage Regulators
|
Other details
| Brand |
ROHM |
| Part Number |
BD00JC0MNUX-ME2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
