Description

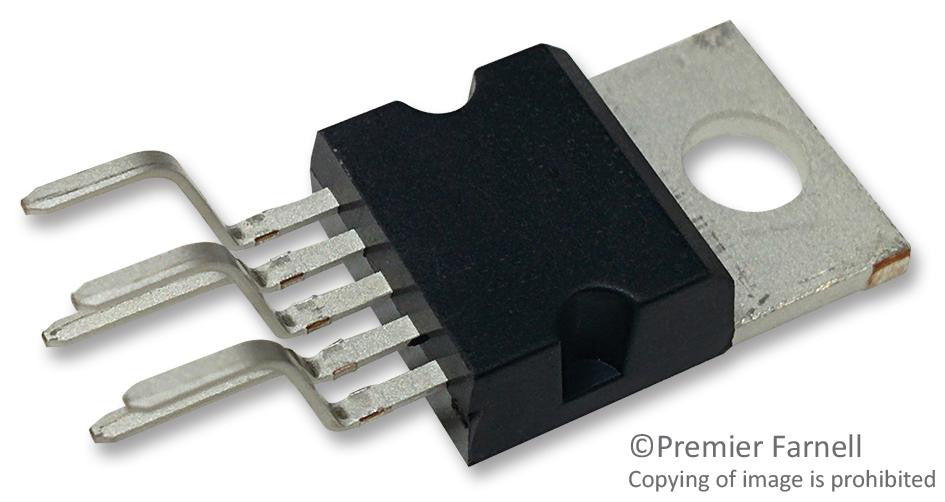

This is a LDO Voltage Regulator, Adjustable, 3V to 16V in, 300mV drop, 1.5V to 12V/1.5A out, TO-220FP-5 product from ROHM with the model number BA00JC5WT
Product details
| Output Type | Adjustable |
| Input Voltage Min | 3V |
| Input Voltage Max | 16V |
| Fixed Output Voltage Nom. | - |
| Adjustable Output Voltage Min | 1.5V |
| Adjustable Output Voltage Max | 12V |
| Output Current | 1.5A |
| Dropout Voltage Vdo | 300mV |
| LDO Regulator Case Style | TO-220FP |
| No. of Pins | 5Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 105°C |
| Packaging | Each |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | - |
Other details
| Brand | ROHM |
| Part Number | BA00JC5WT |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 347.85 |
| 3-5 | ₹ 344.3 |
| 5-10 | ₹ 337.2 |
| 10+ | ₹ 330.1 |
Bulk discount will be automatically applied during checkout based on quantity.
