This is a

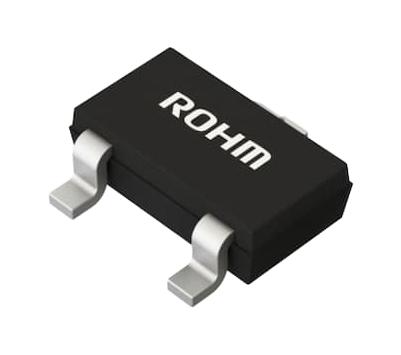

2SAR514RHZGTL Bipolar (BJT) Single Transistor , PNP, 80 V, 700 mA, 500 mW, SOT-346T, Surface Mount New product from ROHM with the model number 2SAR514RHZGTL
Product details
| Transistor Polarity |
PNP |
| Collector Emitter Voltage Max |
80V |
| Continuous Collector Current |
700mA |
| Power Dissipation |
500mW |
| Transistor Case Style |
SOT-346T |
| Transistor Mounting |
Surface Mount |
| No. of Pins |
3Pins |
| Transition Frequency |
380MHz |
| DC Current Gain hFE Min |
120hFE |
| Operating Temperature Max |
150°C |
| Product Range |
- |
| Qualification |
AEC-Q101 |
Other details
| Brand |
ROHM |
| Part Number |
2SAR514RHZGTL |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
