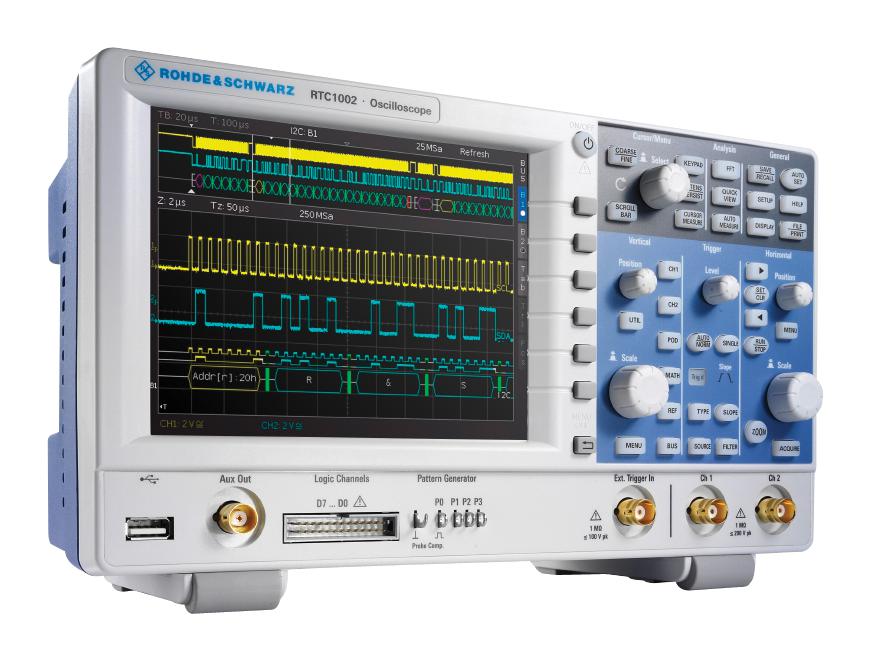

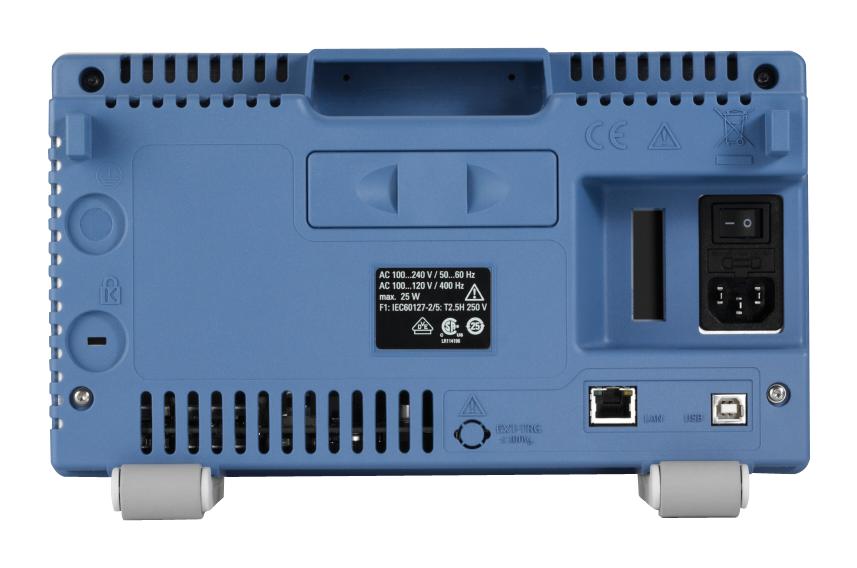

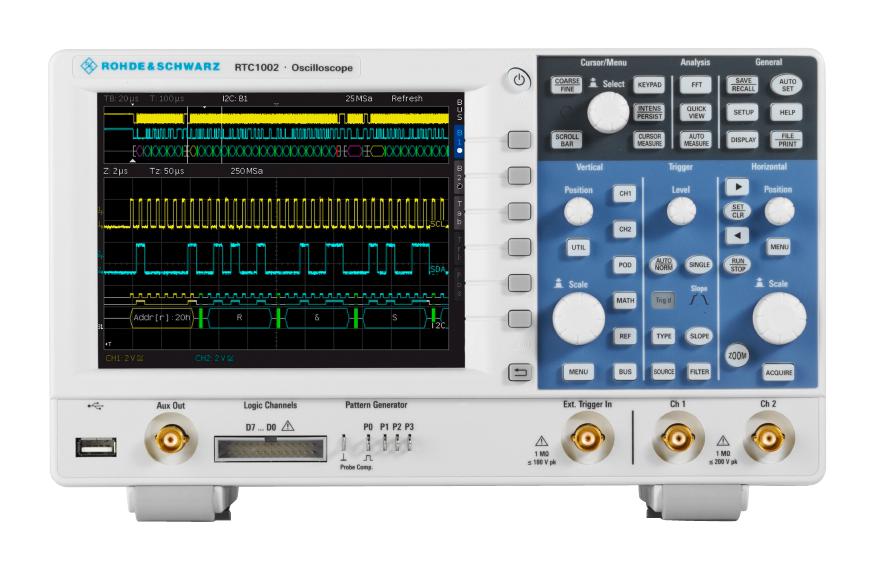

The RTC1K-B1 from Rohde & Schwarz is a RTM1000 series 2 channel digital oscilloscope with R&S®RTC-B1 (300MHz) frequency upgrade and MSO option. The X-in-one instrument offers the functionality of an oscilloscope, logic analyser, protocol analyser, frequency analyser, pattern generator, function generator, digital voltmeter and component tester in a single instrument. This oscilloscope include a wide range of upgrade options with these options users get more value with a minimal footprint on bench space.
- 6.5" VGA colour display (640 x 480 pixels)
- Sampling rate of up to 2Gsample/s, memory depth of up to 2Msample
- Optimized for fast button operation
- 50ppm timebase accuracy, 8 bit ADC
- 1mV/div minimum input sensitivity
- 10000waveforms/s update rate
- 1 x USB host, USB device, LAN interfaces
- I2C, SPI, UART/RS232/RS422/RS485, CAN, LIN protocol (optional)
- Waveform generator and 4bit pattern generator
- Oscilloscope size is 285mm x 175mm x 140mm (W x H x D), 1.7Kg weight
- Saver bundle - up to 49% off, already included in price
Contents
RTM1002 DSO with R&S®RTC-B1 (300MHz) bandwidth upgrade, MSO option, R&S®RT-ZP03 passive probe per channel, R&S®RTC-B6 waveform generator, Power cord, Getting started manual, Safety instructions.
Product details
| Product Range |
RTC1000 Series |
| Scope Channels |
2 Analogue, 8 Digital |
| Bandwidth |
300MHz |
| Sampling Rate |
2GSPS |
| Display Memory Depth |
2 Mpts |
| Calculated Rise Time |
1.15ns |
| Scope Display Type |
VGA Touch Screen LCD Colour |
| Kit Contents |
RTC1002 DSO with RTC-B1 MSO Upgrade, Passive Probe/Power Cord/Adapter BNC/Banana/Manual |
| Manufacturer Warranty |
3 Years |
| Plug Type |
- |
Other details
| Brand |
ROHDE & SCHWARZ |
| Part Number |
RTC1K-COM2 |
| Quantity |
1 Kit |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
| Operating Instructions EN |
|
