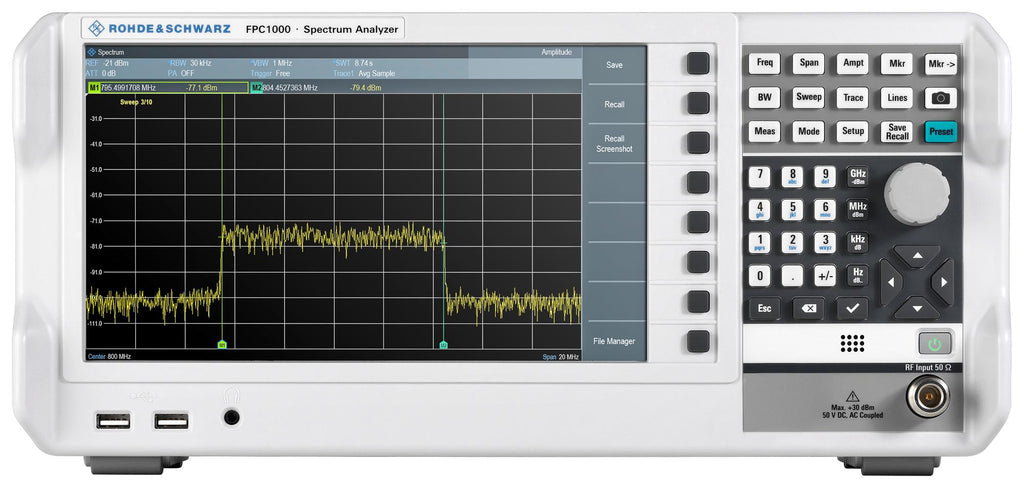

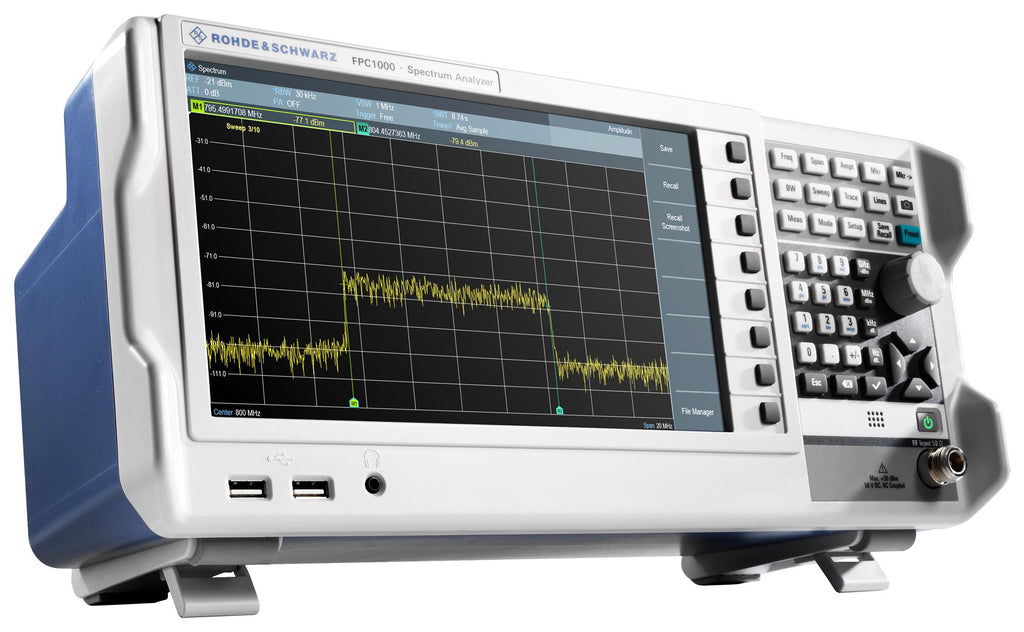

R&S FPC1000 features 10.1", WXGA (1366 × 768 pixel) resolution with 26% larger display and has a 160% higher resolution than other instruments. It can be controlled via smart wireless remote control software. This spectrum analyzer is used in education, production, service or basic research. Supports wired Ethernet and wireless Wi-Fi connectivity. R&S InstrumentView for Windows as well as the iOS/Android app-based R&S MobileView platforms enables remote control and measurement anytime, anywhere.
- 100% software upgradeable
- Provides low noise floor of -150dBm add optional FPC1000-B22 preamplifier to increase sensitivity
- R&S FPC1000 is capable of measuring high power signals of up to +30dBm (1W)
- 6 markers shown vividly in different colours
- Two USB2.0 ports for storage media & connecting accessories, headphone jack, audio speaker, RF input
- Soft menu selection for quick access to key tools, measurement setup buttons
- Power key approximately 15seconds boot time
- Documentation as a screenshot or of instrument settings, control knob
- Optional R&S FPC-K43 receiver mode, R&S FPC-K7 modulation analysis, R&S FPC-K55 advanced measurement
- Dimension is 396mm x 185mm x 156mm, weight is 3Kg
- Option package: preamplifier, modulation analysis, receiver mode, advanced measurements
- Saver bundle - up to 42% off, already included in price
Applications
Medical
Product details
| Spectrum Analyzer Type |
Bench |
| Product Range |
FPC Series |
| Test Frequency Range |
5kHz to 3GHz |
| External Height |
178mm |
| External Width |
396mm |
| External Depth |
147mm |
| Weight |
3kg |
| Manufacturer Warranty |
3 Years |
| Plug Type |
- |
Other details
| Brand |
ROHDE & SCHWARZ |
| Part Number |
FPC-COM1 |
| Quantity |
1 Kit |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
| Miscellaneous EN |
|
| Manufacturer Product Page EN |
|
| Application Note EN |
|
| Drawing EN |
|
| Operating Instructions EN |
|
