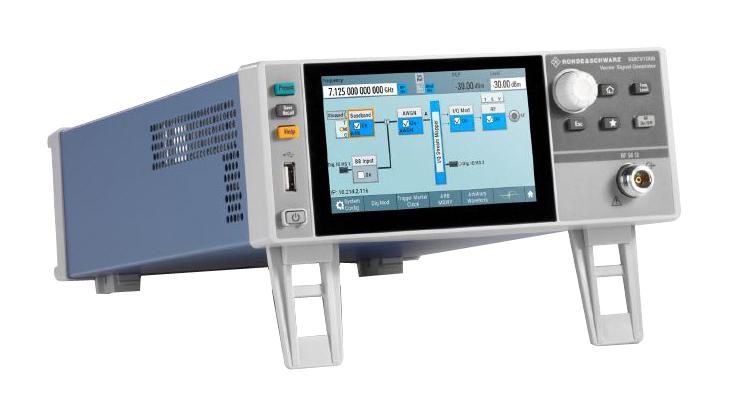

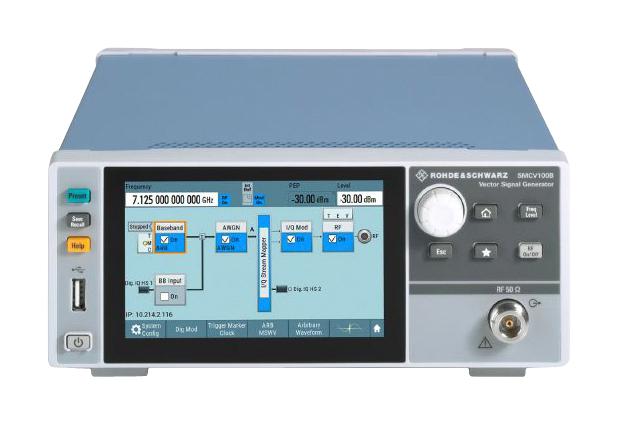

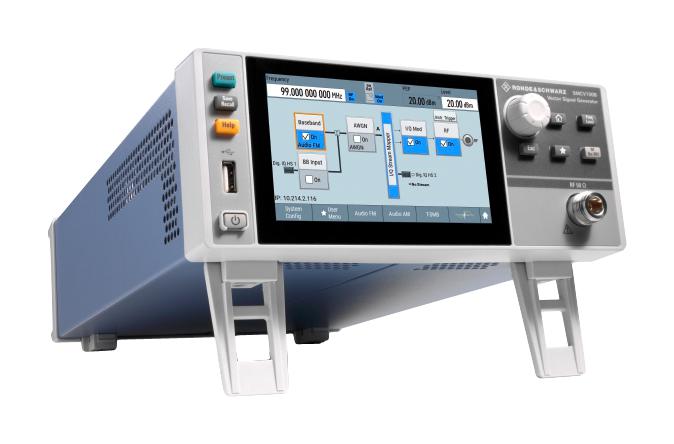

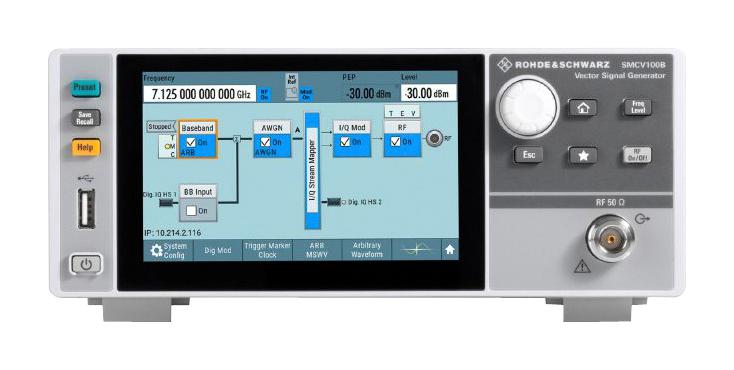

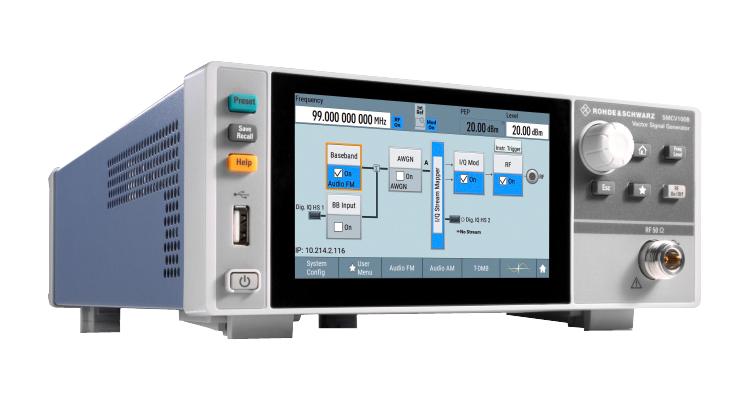

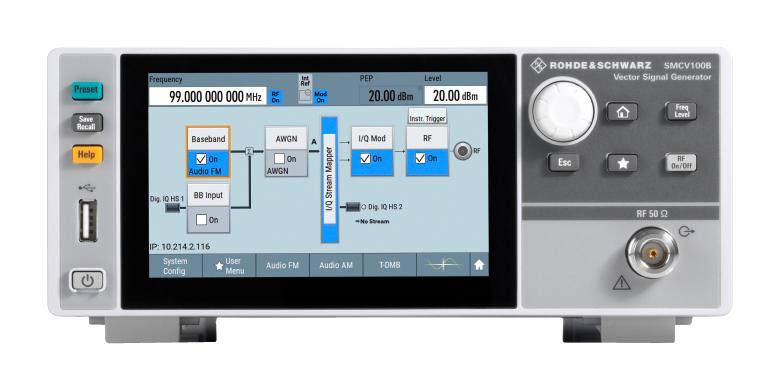

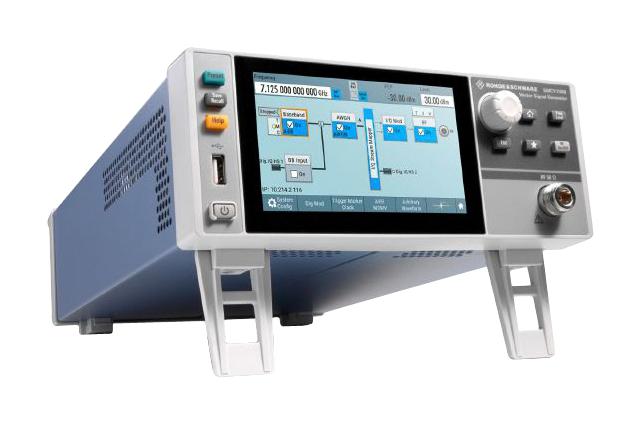

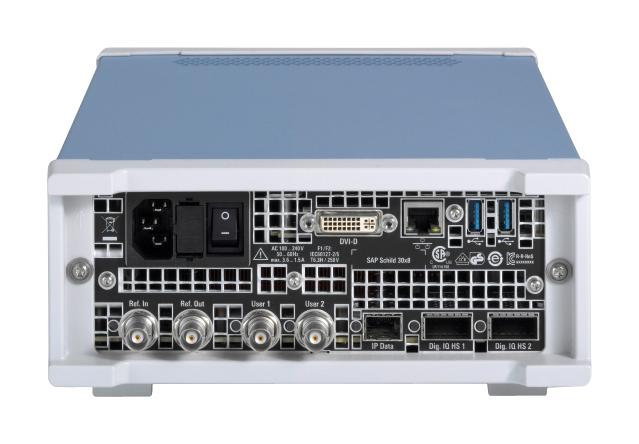

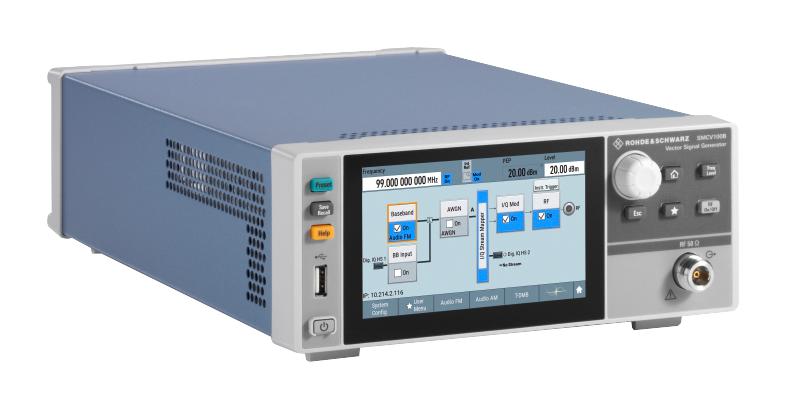

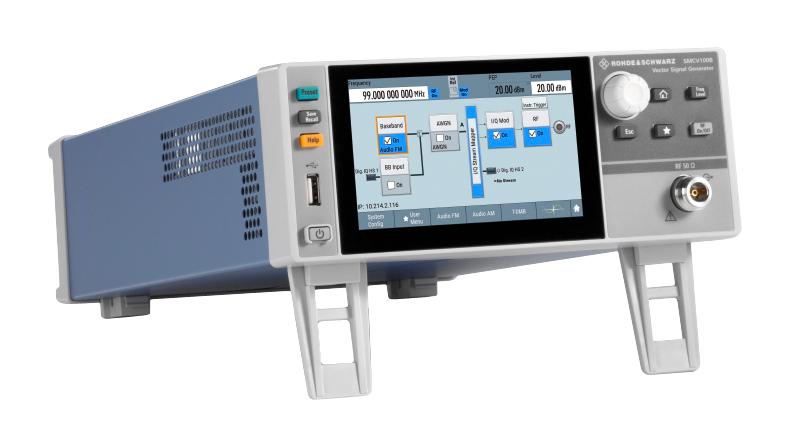

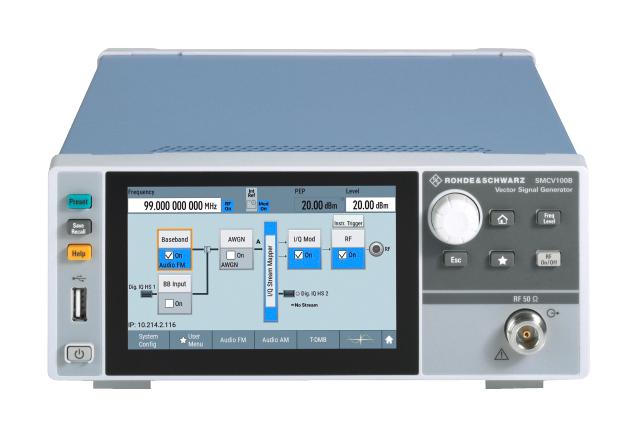

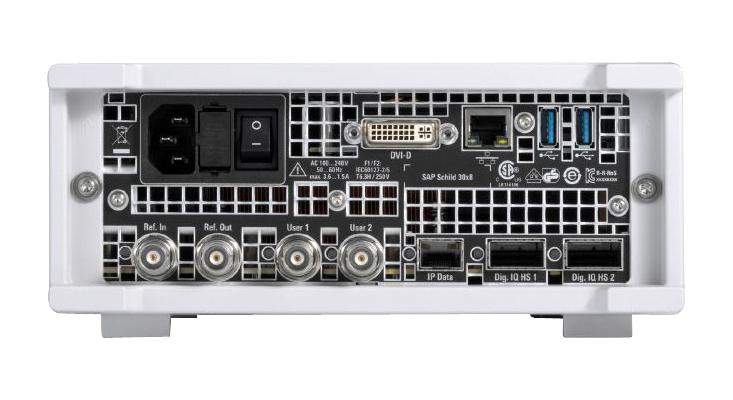

SMCV100BP2 is a SMCV100B vector signal generator bundle. Vector signal generator features a new direct RF DAC concept for RF signal generation. This concept enables I/Q modulation and upconversion in the digital domain, which eliminates the I and Q imbalance errors and LO leakage associated with traditional analogue I/Q modulators.
- First multistandard platform for broadcast, navigation, cellular and wireless applications
- Fully software defined vector signal generator with software based option concept
- Modern RF signal generation concept with direct digital RF upconversion up to 2.5GHz
- High output power up to +25dBm
- Modulation bandwidth up to 240MHz
- Convenient operation on 5" touchscreen
Contents
SMCV100B vector signal generator, SMCVB-B103 8KHz - 3GHz, SMCVB-K197 AM/FM/PHIM (via baseband), SMCVB-K198 pulse modulation (via BB), SMCVB-K199 custom digital modulation.
Product details
| Signal Generator Type |
Arbitrary, Function, Pulse, RF |
| No. of Channels |
1 Channel |
| Product Range |
- |
| Bandwidth |
7.125GHz |
| Signal Generator Modulation |
AM, FM |
| Manufacturer Warranty |
3 Years |
| Plug Type |
- |
Other details
| Brand |
ROHDE & SCHWARZ |
| Part Number |
SMCV100BP2 |
| Quantity |
1 Kit |
| Technical Data Sheet EN |
 |
