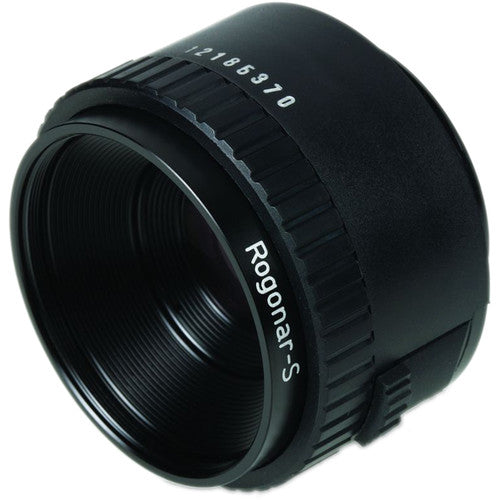

Rodenstock Rogonar-S Overview
A versatile enlarging lens for film formats up to 24 x 36mm, the Rogonar-S 50mm f/2.8 from Rodenstock is well-suited to conventional black and white and color printing applications. Using a four-element, three-group optical design, this simple lens affords notable sharpness and consistent illumination when stopped down to the middle of the aperture range. Its recommended scale range of 2x to 10x is ideal for making mini enlargements up to standard-sized prints. Additionally, for ease of use, the lens is fitted with an illuminated f/stop scale, a convenient preset aperture setting, and a click-stop diaphragm that can be de-clicked depending on preference.
UPC: 053661030268
In the Box
- Rodenstock Rogonar-S 50mm f/2.8 Enlarging Lens
- Limited Lifetime Warranty
Rodenstock Rogonar-S Specs
Focal Length |
50mm |
Aperture Range |
f/2.8 to f/16 |
Maximum Film Format |
24 x 36 mm |
Scale Range |
2 - 10x |
Optical Design |
4 elements in 3 groups |
Front Filter Thread Size |
40.5 mm (x 0.5) |
Flange Focal Length |
47 mm |
Flange to Rear Edge |
6.5 mm |
Mounting Thread |
39 mm (26 tpi) |
Dimensions |
2.0 x 1.5" / 50.0 x 37.5 mm |
Weight |
Not specified by manufacturer |
Packaging Info
Package Weight |
0.435 lb |
Box Dimensions (LxWxH) |
5.7 x 3.4 x 3.3" |
