Rode VLOGVMMC Overview
-
1Description
-
2Setting up the Kit
-
3Microphone Features
-
4SmartGrip Features
-
5Tripod 2 Features
-
6MicroLED Features
Features and Specifications of the R�DE Vlogger KitsIntroducing the R�DE Vlogger Kits
You need to stand out from the crowd of vlogs, livestreams, YouTube videos, and social media posts�and you can easily do that with the Rode Vlogger Kit USB-C Edition, a complete package designed specifically for hassle-free, high-quality audio and video recording to a smartphone with a USB Type-C port.
This bundle features the Rode VideoMic Me-C ultracompact condenser microphone as well as an on-camera light with a diffuser and eight colored filters. Also included are a tripod, a phone holder, and the required accessories to make it all work, such as a mic clip, a furry windscreen, and a USB-C cable. The mic itself is ideal for content creators who can't be slowed down by an intricate setup. Equipped with the Vlogger Kit Universal, you can turn your smartphone into a portable, convenient production system that will markedly improve the caliber of your sound and picture.
Setting up the Kit
What You Get
The Vlogger Kit USB-C Edition comes with everything you need (and more) to easily start recording quality video and audio with your smartphone, so you can shoot your next vlog, Instagram story, Facebook Live session, YouTube special, or behind-the-scenes footage looking and sounding better than ever.
- VideoMic Me-C ultracompact condenser microphone
- Shock-absorbing rubber clip
- WS9 furry windshield to drastically reduce wind noise
- SmartGrip phone holder and compact tripod stand
- MicroLED on-camera light with clip-on diffuser and eight colored filters
- USB Type-C cable for recharging the MicroLED on-camera light

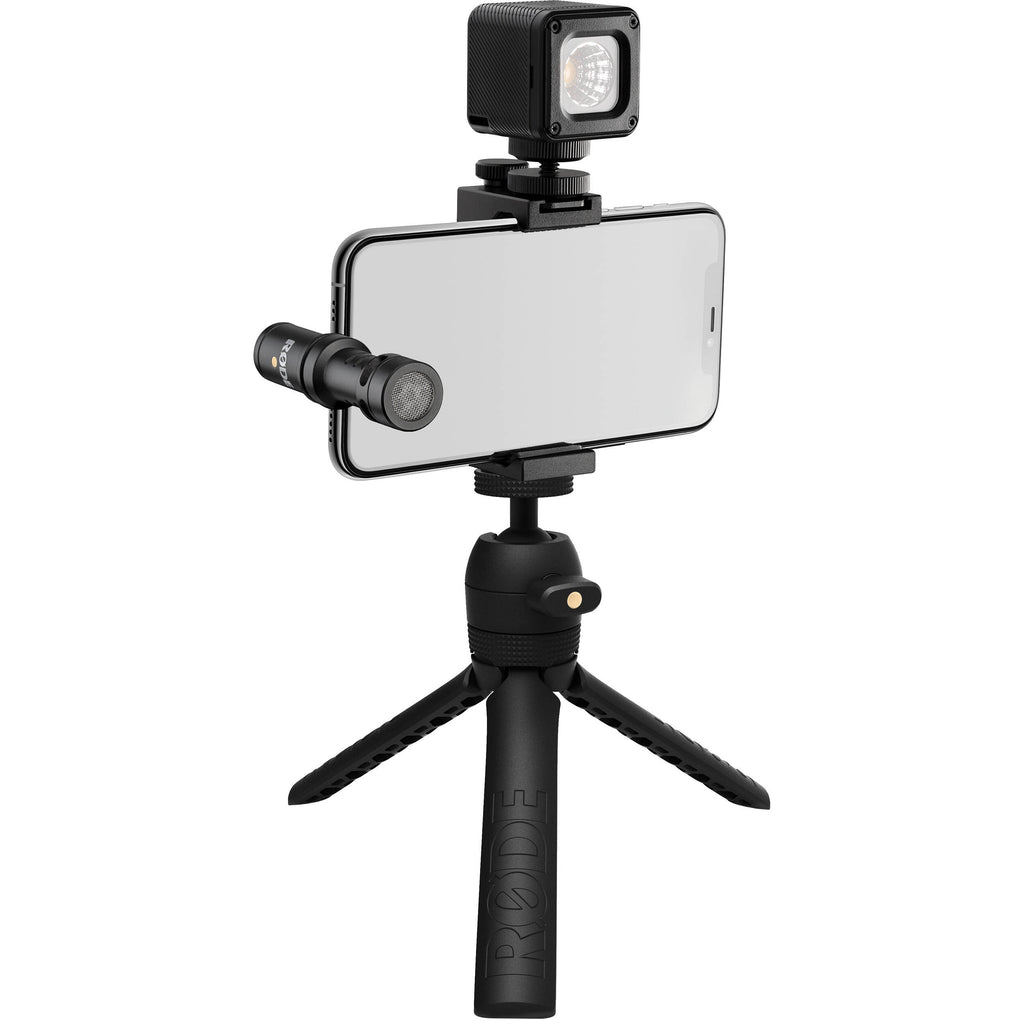

How It Works
Unbox the Vlogger Kit USB-C Edition with confidence, knowing that all you have to supply is your mobile device and an idea for your next shoot. In a few simple steps, you'll be set up and ready to roll.
- Mount the phone holder atop the tripod stand and secure your smartphone in the phone holder
- Attach the MicroLED light to the phone holder and plug the microphone into the USB Type-C port of your smartphone
- Turn on the MicroLED light, open your app of choice, and begin filming
To monitor audio from the mic or from playback of your recording, just connect headphones to the 3.5mm port on the microphone.

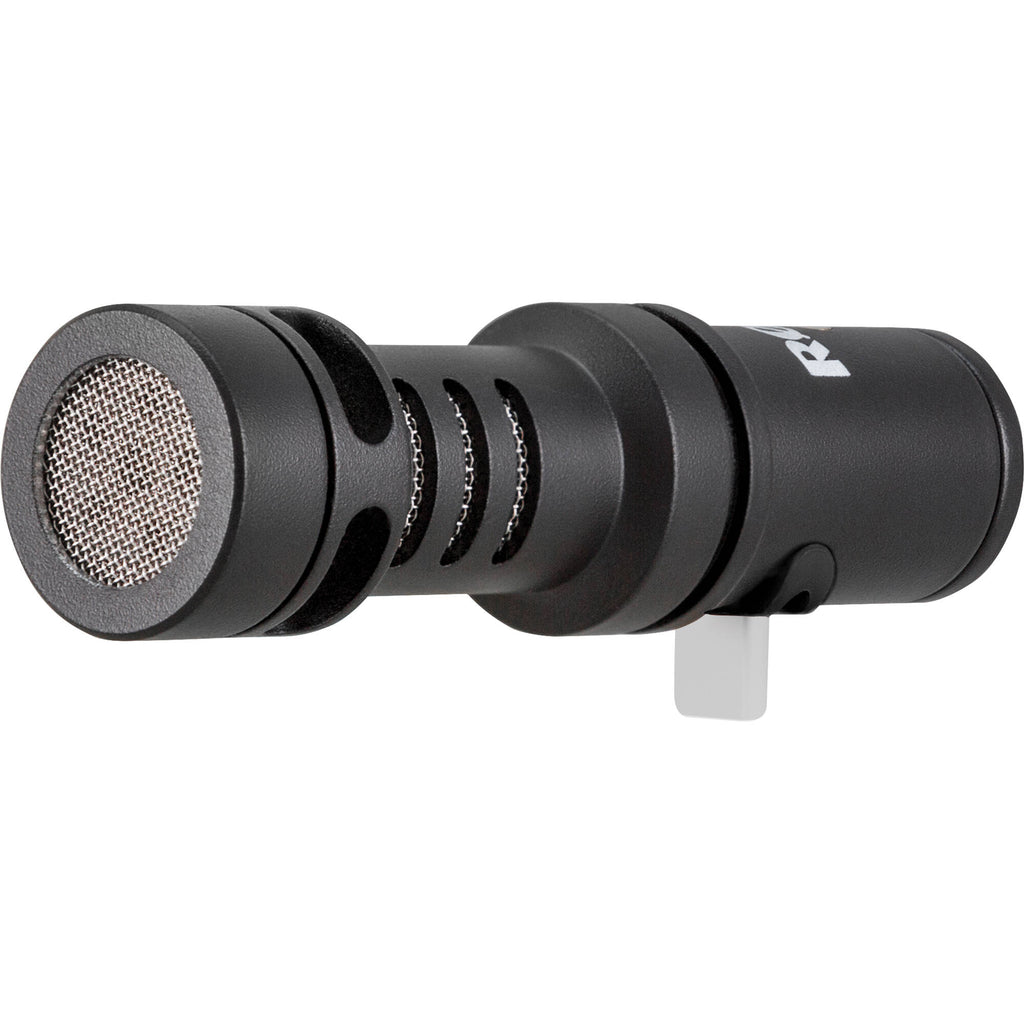

Microphone Features
Durable and Small
At under 2.9" long and 1 ounce light, the VideoMic Me-C is an unobtrusive companion for your smartphone and its durable aluminum body aids in RF rejection.
Condenser Mic with Directional Sound Pickup
Whereas most built-in smartphone microphones pick up sound from all directions, this microphone utilizes a cardioid polar pattern to focus on sound in front of it while attenuating sound entering from the rear. Its directional condenser element delivers more detailed audio than the mics typically found in mobile devices.
Easy Connection to Smartphone
Since the VideoMic Me-C is outfitted with a USB Type-C connector, it can plug directly into the USB Type-C port of your smartphone, no cable or adapter required. A rubber clip is included to ensure stable and secure attachment to your mobile device.
Powered by Your Mobile Device
The VideoMic Me-C runs on power from your mobile device, so no batteries are required to operate it. Just connect the microphone to your smartphone and forget about swapping or charging batteries.
Headphone Port
With the VideoMic Me-C, there's no guessing whether your audio sounds good. Its 3.5mm output lets you plug in headphones for convenient real-time monitoring while the mic remains connected to your mobile device. It also allows you to listen to playback of your recorded content.
24-Bit Digital Resolution
The integrated analog-to-digital converter operates at up to 24-bit / 48 kHz for industry-standard signal quality and compatibility with most audio and video recording apps.
Furry Windshield Minimizes Wind Noise
The VideoMic Me-C includes a furry windshield to minimize unwanted wind noise from breezes, fans, heaters, and air conditioners.
SmartGrip Features
Smartphone Mounting
The SmartGrip is a high-quality solution for mounting a smartphone on a tripod. It features rugged metal construction with rubberized grips and is suitable for mounting phones from 2.6 to 3.4" in width.
Extra Mounting Points
The SmartGrip features a cold shoe mount for easy attachment of Rode VideoMics and other accessories. Three 1/4" thread attachment points allow for easy mounting on tripods and grips in a range of orientations.
Tripod 2 Features
Supports a Variety of Devices
The Tripod 2 is a sturdy three-position tripod for mounting cameras, microphones, and other accessories.
Closed or Open Positions
In the closed position, the Tripod 2 is perfect for handheld use. The tripod legs can also be opened out to a mid or wide setting for optimal positioning and stability.
1/4" Thread
The Tripod 2 has a 1/4" thread for attaching cameras and camera accessories.

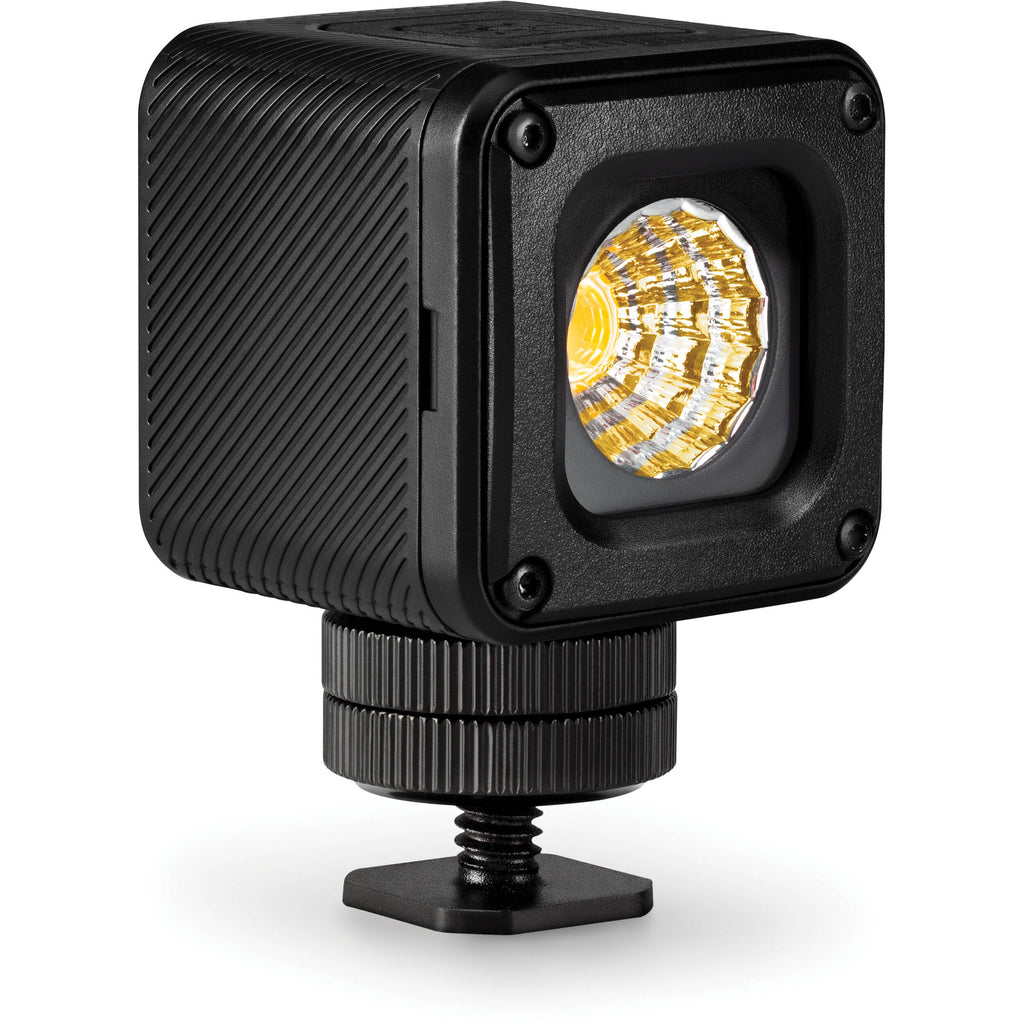

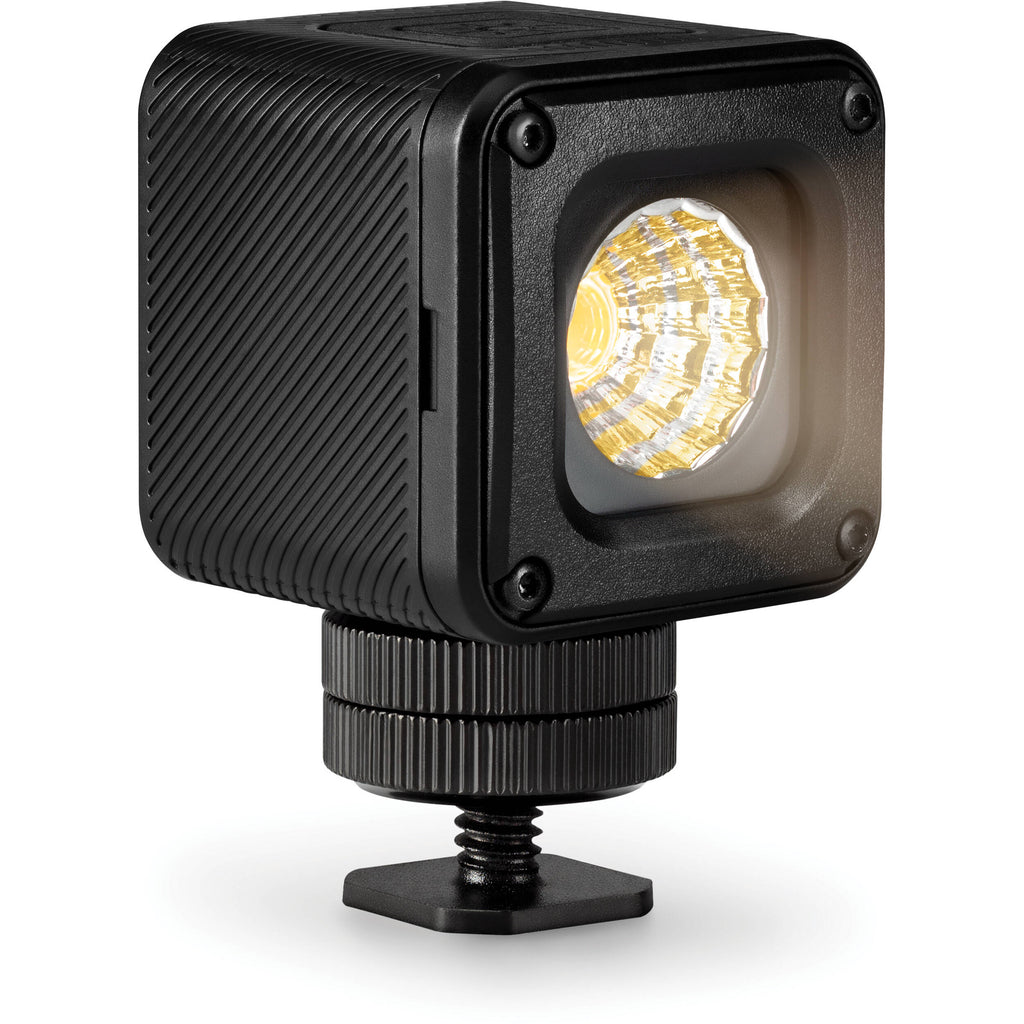

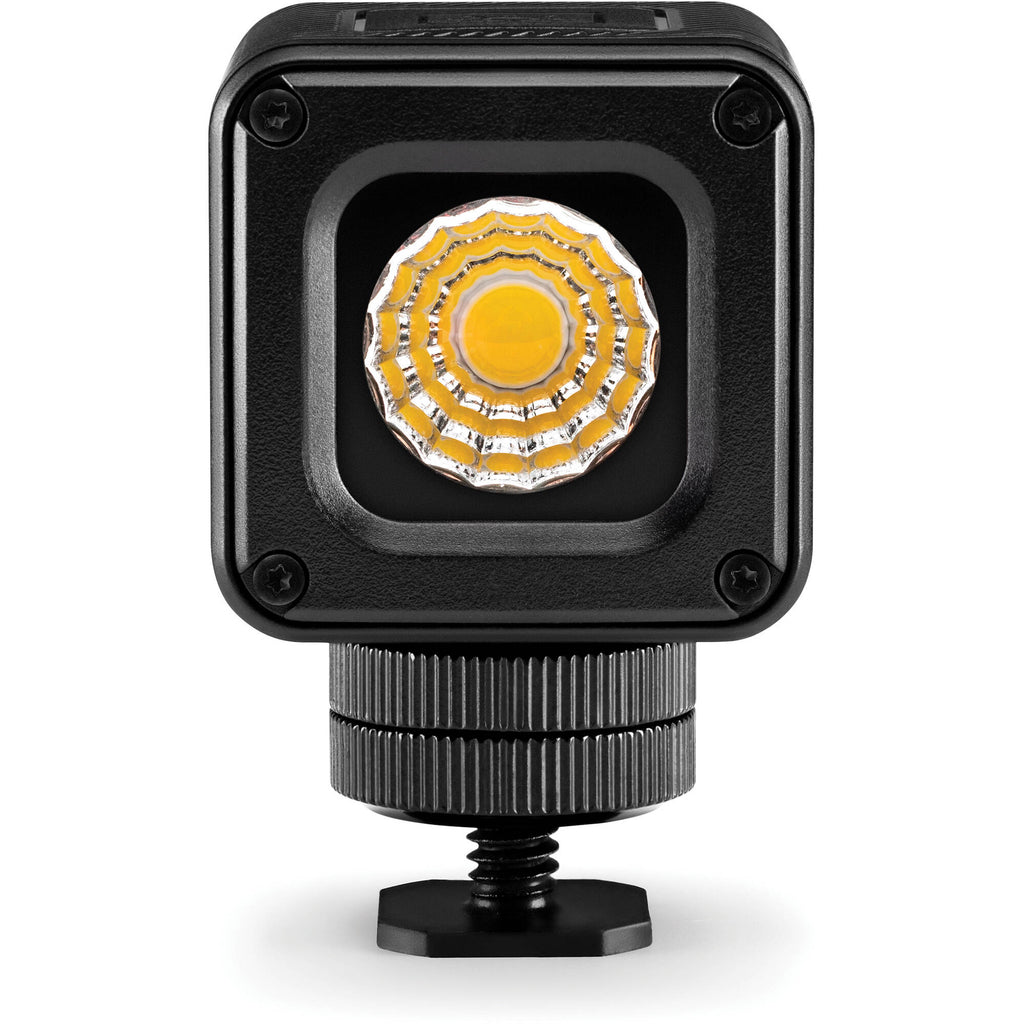

MicroLED Features
Compact and Rechargeable
The MicroLED is a compact rechargeable on-camera light. It is ideal for vlogging, newsgathering, mobile filmmaking, and documentary production.
Adjustable Brightness
The MicroLED features four adjustable brightness settings, and a clip-on diffuser with eight colored filters.
Over Four Hours of Run Time
Power is supplied via the USB Type-C charging port, which both charges the internal battery and can also operate the light. Run time is over four hours at low brightness.
UPC: 698813007257

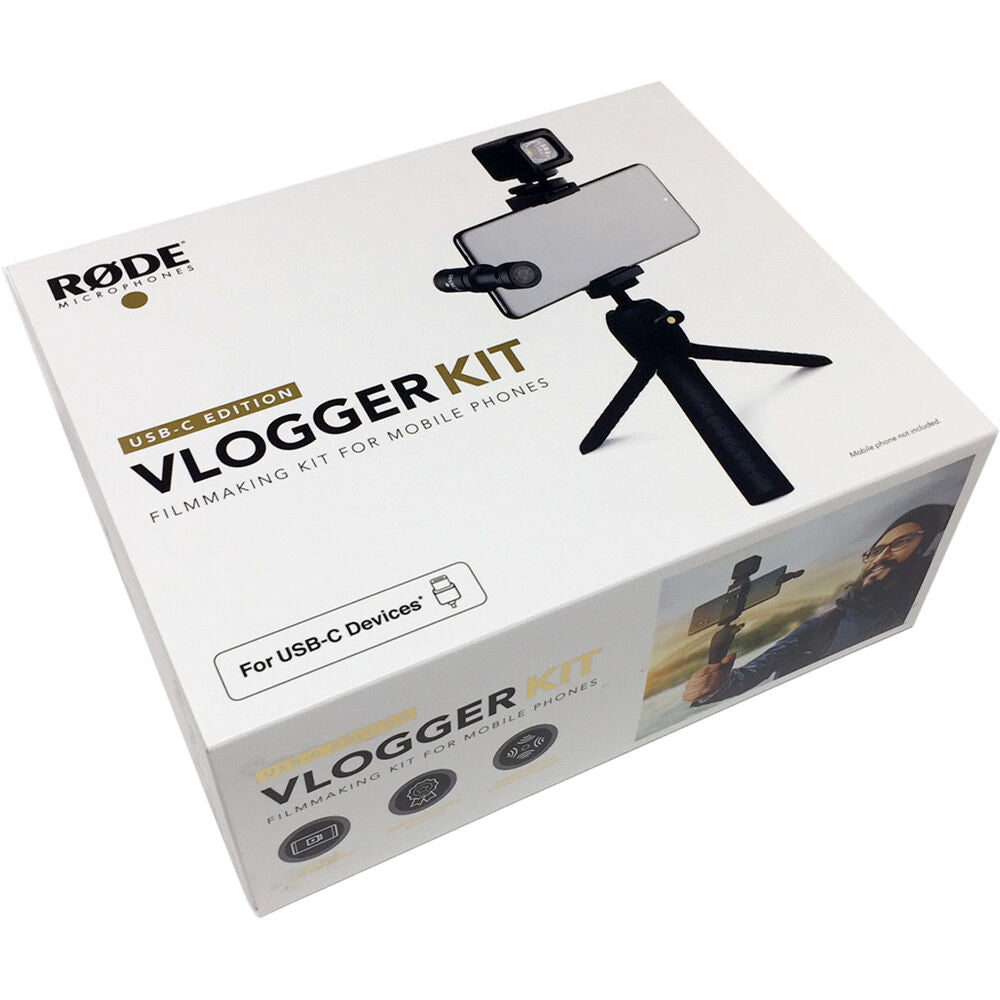

In the Box
- Rode Vlogger Kit USB-C Edition Filmmaking Kit for Mobile Devices with USB Type-C Ports
- VideoMic Me-C Directional Microphone for USB Type-C Devices
- Rubber Mic Clip
- Rode WS9 Deluxe Windshield for Rode VideoMicro & VideoMic Me-L
- SmartGrip
- Tripod 2
- MicroLED On-Camera Light
- Clip-On Diffuser
- 8 x Colored Filters
- USB Type-C Cable
- Limited 1-Year Warranty, Extendable to 2 Years upon Online Registration
Table of Contents
- Description
- Setting up the Kit
- Microphone Features
- SmartGrip Features
- Tripod 2 Features
- MicroLED Features
Rode VLOGVMMC Specs
Microphone
Form Factor |
Mobile Device Mic / Shotgun Mic |
Sound Field |
Mono |
Operating Principle |
Pressure Gradient |
Capsule |
1 x Electret Condenser |
Polar Pattern |
Cardioid |
Orientation |
End Address |
Circuitry |
Solid-State |
Pad |
None |
High-Pass Filter |
None |
Tone Adjustment |
None |
Gain Adjustment |
None |
Indicators |
None |
On-Board Controls |
None |
Windscreen |
Windsock/Windjammer (Included) |
Performance
Frequency Range |
20 Hz to 20 kHz |
Maximum SPL |
115 dB SPL (1 kHz) |
Off-Axis Rejection |
1 dB at 60° 10 dB at 120° >22 dB at 180° |
Signal-to-Noise Ratio |
74.5 dB |
Equivalent Noise Level |
19.5 dB SPL A-Weighted |
Connectivity
Output Connectors (Analog) |
None |
Output Connectors (Digital) |
1 x USB Type-C Male (on Mic) |
Headphone Connector |
1 x 1/8" / 3.5 mm |
Digital Audio
A/D Conversion |
24-Bit |
Sample Rate |
44.1 / 48 kHz |
Operating System Support |
Android |
Available Port |
USB (Interface Unspecified) |
Power
Bus Power |
USB |
Operating Voltage |
Not Specified by Manufacturer |
Physical
Color |
Black |
Mounting |
Direct Connection to Mobile Device (via Integrated Hardware) |
Construction Material |
Aluminum |
Dimensions |
H: 1 x W: 0.8 x L: 2.9" / H: 25.4 x W: 20.1 x L: 73.5 mm (Microphone) |
Weight |
1 oz / 27 g (Microphone) |
Packaging Info
Package Weight |
1.375 lb |
Box Dimensions (LxWxH) |
7.9 x 6.45 x 3.45" |
