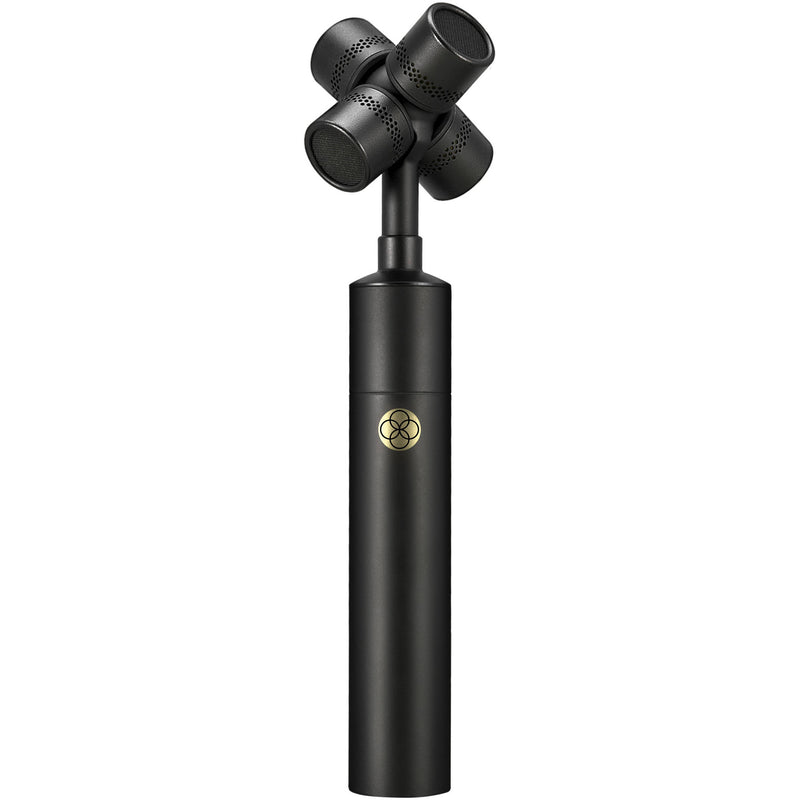

The Rode SoundField NT-SF1 is an ambisonic microphone designed to provide clear and accurate reproduction of 360° sound for recordists in VR, film production, and audio for video games. It features four 1/2" TF45C cardioid condenser capsules arranged in a tetrahedral array, wired to an XLR 10-pin connector for four-channel, A-format output. Each capsule is powered via 48 VDC phantom power and delivers a frequency response of 20 Hz to 20 kHz. Flexible B-format manipulation of polar patterns and output format is supported through the downloadable SoundField by Rode ambisonic processor plug-in. The NT-SF1 includes a custom shockmount, a spherical windscreen, a furry wind cover, and a breakout cable that converts the XLR 10-pin output to four standard XLR 3-pin connectors.
Microphone Features
- Tetrahedral array with four externally biased cardioid condenser capsules
- Created in-house at Rode's Sydney headquarters, each TF-45C capsule is machined to tolerances of less than one micron
- JFET impedance converter with bipolar output buffer
- Low noise of 15 dBA
- Handles SPLs up to 129 dB
- Sturdy brass body
Plug-In Features
- Utilizes frequency-domain processing instead of matrices and correction filters to deliver spatial accuracy at all frequencies
- Change polar patterns in post-production and even create shotgun-type patterns
- Set up mixes for all common surround-sound formats from 5.1 to 7.1.4, and accommodate custom formats and speaker arrays
- Intuitive user interface with sound level visualization for immediate feedback on levels and soundscape information
- Advanced mode opens up all parameters and controls for precise, detailed manipulation
- Accepts A-Format, B-Format (FuMa), or B-Format (Ambix)
- Outputs B-Format (FuMa), B-Format (Ambix), mono, stereo, 5.1, 7.1, 5.1.2, 7.1.2, 5.1.4, or 7.1.4
- Compatible with macOS 10.11 or later, and Windows 10
- Supports AAX, Audio Units, and VST plug-in formats
![]()
UPC: 698813005314
In the Box
- Rode SoundField NT-SF1 Ambisonic Microphone
- Custom Suspension Shockmount
- Blimp-Style Spherical Windshield
- Furry Wind Cover
- XLR Breakout Cable
- Limited 1-Year Warranty with 9-Year Extension upon Online Registration within 90 Days
Rode NT-SF1 Specs
Microphone
| Sound Field | Tetrahedral |
| Operating Principle | Pressure Gradient |
| Capsule | Condenser |
| Polar Pattern | Cardioid |
| Circuitry | Solid-State |
| Pad | None |
| Low-Cut Filter | None |
Performance
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 129 dB SPL |
| Impedance | 63 Ohms |
| Sensitivity | -30.4 dBV/Pa |
| Equivalent Noise Level | 15 dB A-Weighted |
Connectivity
| Output Connectors | 1 x 10-Pin XLR |
Physical
| Length | 7.57" / 192.3 mm |
| Diameter | 1.80" / 45.7 mm |
| Weight | 10.09 oz / 286 g |
Packaging Info
| Package Weight | 6.835 lb |
| Box Dimensions (LxWxH) | 15.2 x 10.8 x 6.4" |
