- Cardioid Polar Pattern
- Low-Noise Output

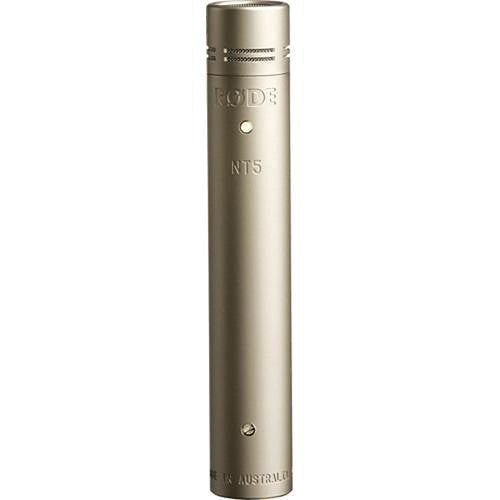

The NT5 from Rode is a small diaphragm microphone featuring full frequency response and low-noise output circuitry. Designed for general instrument recording and sound reinforcement.
The cardioid polar pattern effectively minimizes audio at the off-axis sections, reducing noise caused by, leakage, monitors, additional instruments etc. The NT5 offers a frequency response of 20 Hz to 20 kHz allowing the microphones to be used in a wide variety of applications such as drum over-head miking, stereo capturing of instruments, vocal capturing etc. The NT5 is powered via +24V or +48V phantom power. The package includes dual windscreens and stand mounts in a durable road case.
- Cardioid Pattern

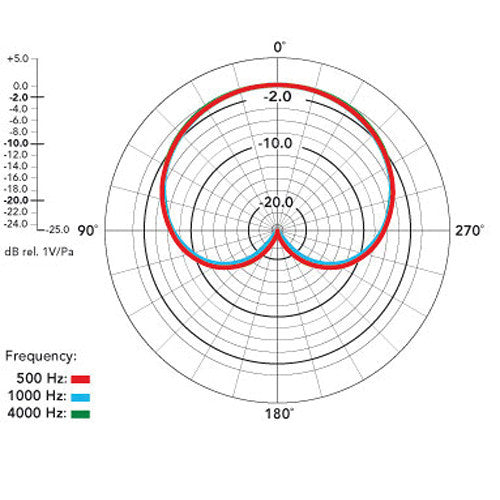

- The cardioid polar pattern is effective in minimizing of-axis noise due to leakage, additional instruments, room ambiance etc.
- Wide Frequency Response

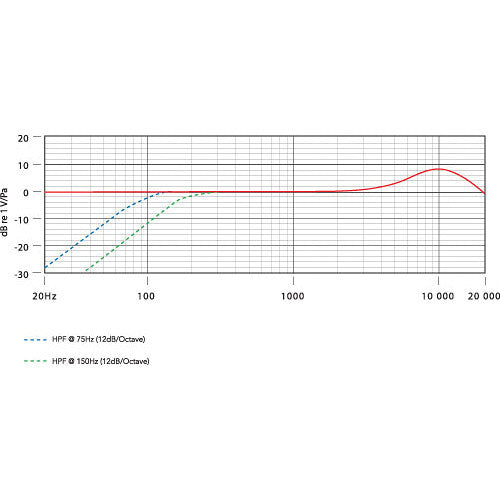

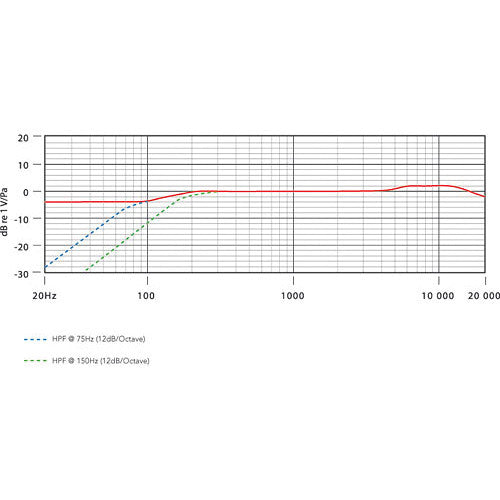

- The NT5 features a frequency response of 20 Hz to 20 kHz allowing the flexibility to capture accurately in any recording or sound reinforcement scenario.
UPC: 698813000661
| Operating Principle | Pressure Gradient |
| Transducer | Condenser |
| Diaphragm | 0.5" (12.70 mm) |
| Polar Pattern | Cardioid |
| Frequency Range | 20 Hz to 20 kHz |
| Signal to Noise Ratio | 78 dB |
| Equivalent Noise Level | 16 dB A-Weighted |
| Maximum SPL | 143 dB SPL 1% |
| Impedance | 100 ohms |
| Sensitivity | -38 dB, re: 1 V/Pa |
| Power Requirements | 24 V, 48 V |
| Output Connectors | 3-Pin XLR |
| Dynamic Range | 128 dB |
| General |
| Length | 4.65" (118 mm) |
| Diameter | 0.79" (20 mm) |
| Weight | 0.22 lb (100 g) |
| Packaging Info |
| Package Weight | 0.8 lb |
| Box Dimensions (LxWxH) | 10.709 x 5.197 x 2.126" |

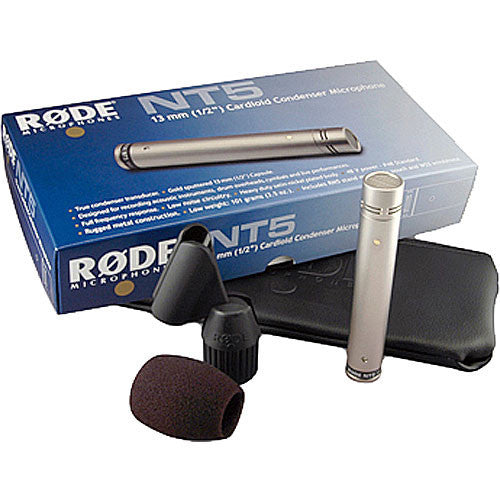

In the Box
Rode NT5 Cardioid Studio Condenser Microphones (Single Microphone)
