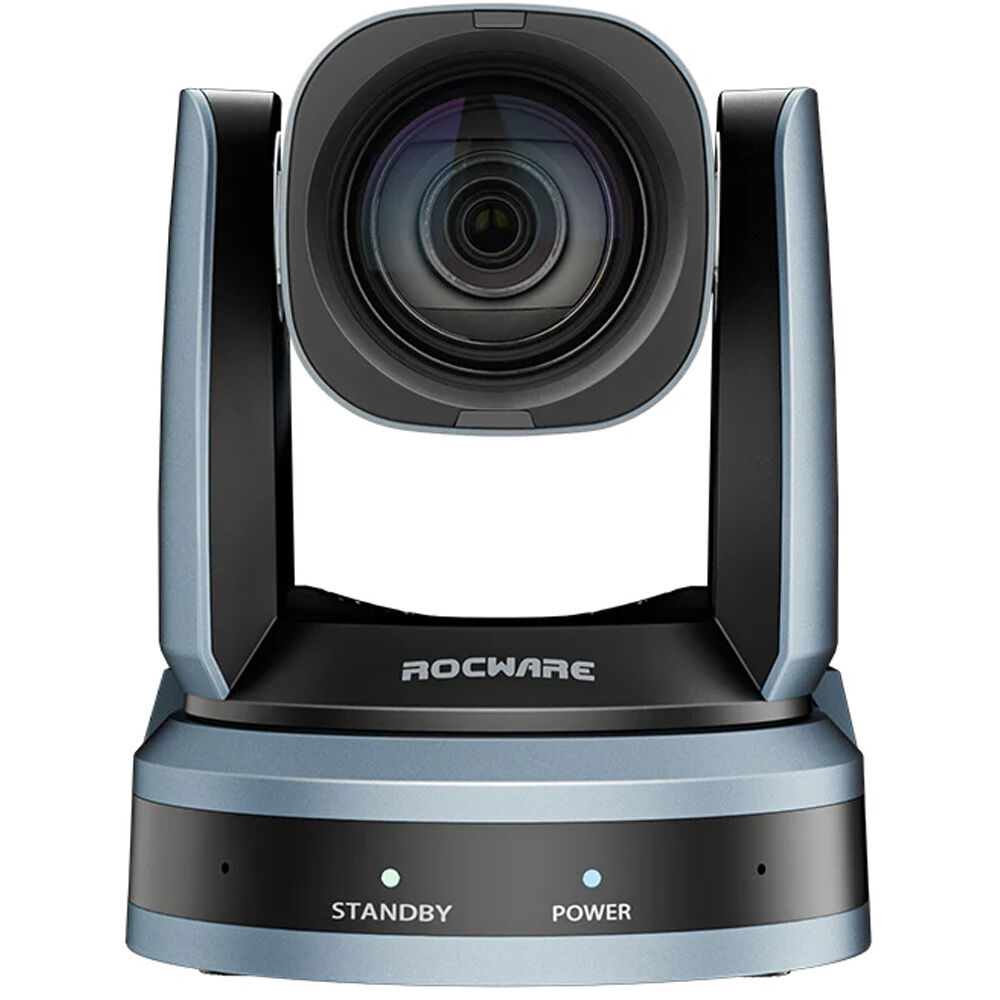

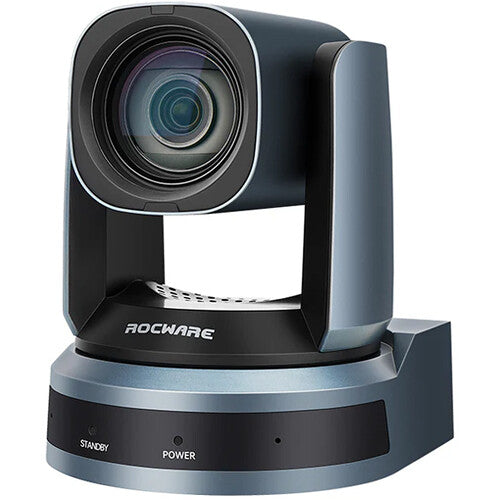

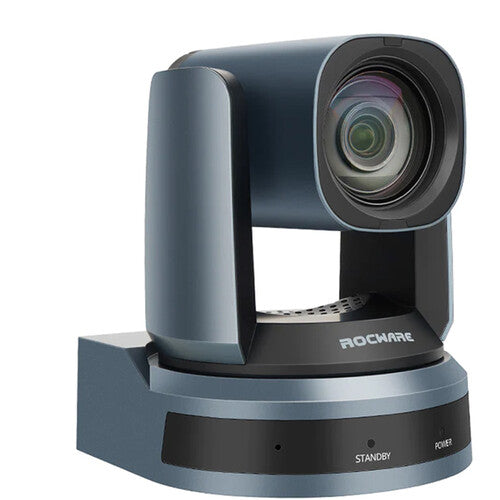

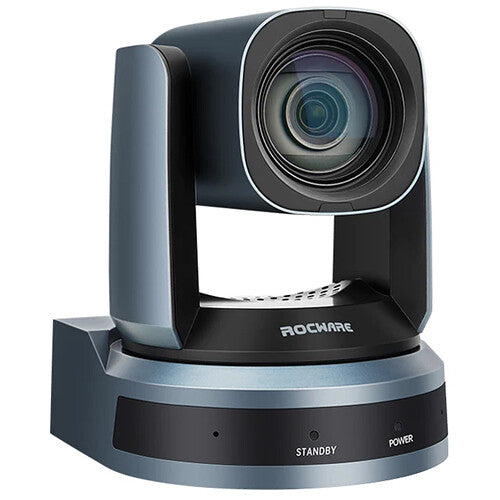

ROCWARE RC821U 1080p PTZ Live Streaming & Conference Camera with 12x Optical Zoom

The RC821U 1080p PTZ Live Streaming & Conference Camera with 12x Optical Zoom from ROCWARE features a cutting-edge Panasonic 1/2.8-inch HD CMOS sensor with 2.07 million pixels, providing exceptional image quality at a maximum resolution of 1080p60. It delivers vibrant colors and sharp video even in challenging lighting conditions. With its 12x optical zoom and PTZ capability, it offers a wide 72.5 to 6.9° field of view, ensuring clear image capture. The cutting-edge auto framing technology of this versatile camera makes it ideal for various applications such as live events, webcasting, video conferencing, and online teaching, augmented by multiple powering options, including PoE (Power over Ethernet).

The RC821U supports 12x optical zoom and 16x digital zoom to catch every details in up to 39.3'. The horizontal rotation range of the PTZ is close to 360° while the vertical tilt range is from -30 - +90°.

Exclusive customized high-quality ultrahigh-resolution, ultrawide-angle lens with a horizontal field of view up to 72.5°, an optical zoom up to 12x, and a 16x digital zoom.

The RC821U can accurately obtain the number and distribution of participants through face detection, intelligently control PTZ cameras to capture all participants in the screen, and adjust to the best screen.

The camera offers three power supply options, as it simultaneously supports the use of a 5V USB 3.0 cable, 12V power cable, and an Ethernet cable for PoE.

ROCWARE RC821U Specs

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 2.07 Megapixel
Shutter Speed	1/10000 to 1/30 Second
Optical Zoom Ratio	12x
Max Digital Zoom	16x
External Recording Modes	HDMI 1920 x 1080 1280 x 720 1024 x 576 960 x 540
Broadcast Output	NTSC/PAL
PoE Support	PoE 802.3af

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 2.07 Megapixel

Shutter Speed	1/10000 to 1/30 Second
Signal-to-Noise Ratio	55 dB
Minimum Illumination	0.5 Lux
Flip / Mirror Support	Image Flip
White Balance	Presets: Auto, Indoors, Manual, One Push, Outdoors, VAR

Focal Length	3.5 to 42.3mm
Optical Zoom Ratio	12x
Max Digital Zoom	16x
Field of View	Horizontal: 72.5 to 6.9° Vertical: 44.8 to 3.9°
Maximum Aperture	f/1.8 to 2.8

External Recording Modes	HDMI 1920 x 1080 1280 x 720 1024 x 576 960 x 540
Broadcast Output	NTSC/PAL

Presets	255
Pan/Tilt	Pan: 340° (-170 to 170°)  Tilt: 120° (-30 to 90°)

Video I/O	1x HDMI 1.4b Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Line Input

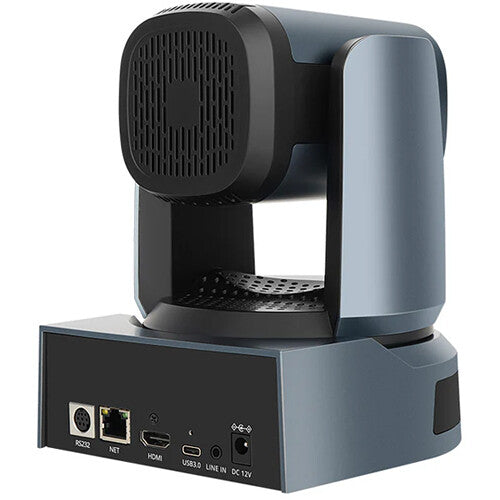

Other I/O	1x DIN 8-Pin 1x RJ45 1x USB-C
Built-In Microphone	No
Built-In Speaker	No

PoE Support	PoE 802.3af
Power I/O	1x Barrel (12VDC)

Operating Conditions	14 to 104°F / -10 to 40°C
Storage Conditions	-40 to 140°F / -40 to 60°C

Certifications	CE, FCC
Dimensions (W x H x D)	6.9 x 6 x 5.6" / 175.8 x 151.9 x 142.2 mm
Weight	3.3 lb / 1.5 kg (Body Only)

Package Weight	5.265 lb
Box Dimensions (LxWxH)	10.6 x 9.5 x 9.2"
