ROCWARE RC10 All-in-One UHD 4K USB Video Bar with Auto Framing

Add a plug-and-play conferencing system to your small to medium-sized meeting room with the charcoal RC10 All-in-One UHD 4K USB Video Bar with Auto Framing from ROCWARE. The RC10 is designed as an efficient video conferencing solution that provides an easy-setup video camera, microphone, and speaker to connect with remote participants. Via a simple USB interface, it can quickly connect to a computer host via USB-C and be set up with any application that supports standard USB video and audio drivers, including popular collaboration platforms such as Teams, Meet, Slack, Zoom, and more.

The RC10 features a wide 121° field of view and built-in ±15° pan and tilt functions, and its lens features a 5x optical zoom customized for conference rooms, making it easier for remote attendees to feel part of the conference meeting.

The R10 features a powerful camera with a 1/2.5", 8.51MP CMOS sensor that captures up to UHD 4K 3840 x 2160p30 high-resolution video. It can also capture HD resolutions such as 1080p, 720p, and more, depending on your streaming needs, to provide clear, accurate communication.

The built-in beamforming (BF) omnidirectional microphone features a pickup distance of 19.7'. A low-distortion beamforming algorithm can direct the microphone directly to the speaker, with high-quality sound and clear, and authentic communication. Its full-duplex design features automatic gain control, noise reduction, and echo cancellation for crisp, clear sound.

The unit can be used as a Bluetooth microphone and speaker while connected to a mobile phone or other devices via a Bluetooth connection, and the call can be connected to the audio and video conference. It features a full-frequency Hi-Fi loudspeaker, professional acoustics design with a noise-reduction interference, provide outstanding sound effect.

The built-in intelligent analysis algorithm supports speaker position identification and an intelligent ePTZ linkage function. This ensures the speaker is automatically tracked, and it switches the speaker screen so the speaker is always centered on the screen.

Adjust the screen ratio according to the change of the number of participants to present a better meeting effect.

ROCWARE RC10 Specs

Resolution and Frame Rate	UHD 4K at up to 30 fps 1080p at up to 30 fps 720p at up to 30 fps
Image Sensor	1/2.5"-Type CMOS
System Connection	USB-C 3.0 / 3.1/3.2 Gen 1

Resolution and Frame Rate	UHD 4K at up to 30 fps 1080p at up to 30 fps 720p at up to 30 fps
Number of Lenses	1
Image Sensor	1/2.5"-Type CMOS
Field of View	Diagonal: 121° Horizontal: 110° Vertical: 75°
Zoom	No

System Connection	USB-C 3.0 / 3.1/3.2 Gen 1

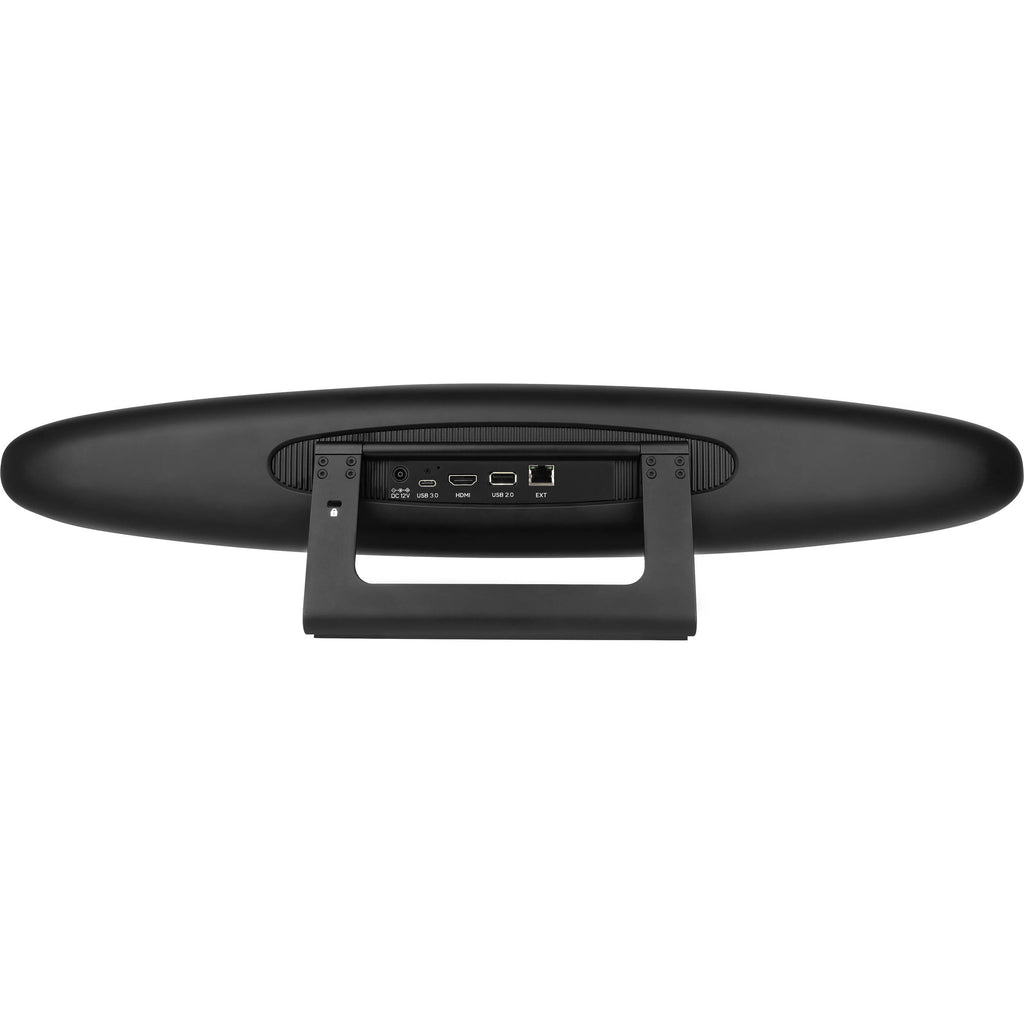

Other I/O	1x HDMI Output 1x USB-A Output
Wireless	Wi-Fi *Built-In
Bluetooth	5.0
Wi-Fi	Yes
Power Source	AC Adapter
Low-Light Correction	No
Input Power	12 VDC at 2 A
OS Compatibility	Windows / macOS
OS Compatibility	Windows macOS

Microphone	1
Pickup Range	19.7' / 6 m
Polar Pattern	Omnidirectional
Microphone Features	Beam Forming

Built-In Speakers	1
Maximum Sound Pressure Level (SPL)	96 dB

Privacy Shutter	No
Security	No
Built-In Light	No
Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-40 to 140°F / -40 to 60°C
Dimensions (W x H x D)	23.7 x 5.6 x 4.5" / 601.0 x 141.1 x 115.4 mm
Weight	5.5 lb / 2.5 kg

Package Weight	8.625 lb
Box Dimensions (LxWxH)	26 x 9.7 x 8.7"
