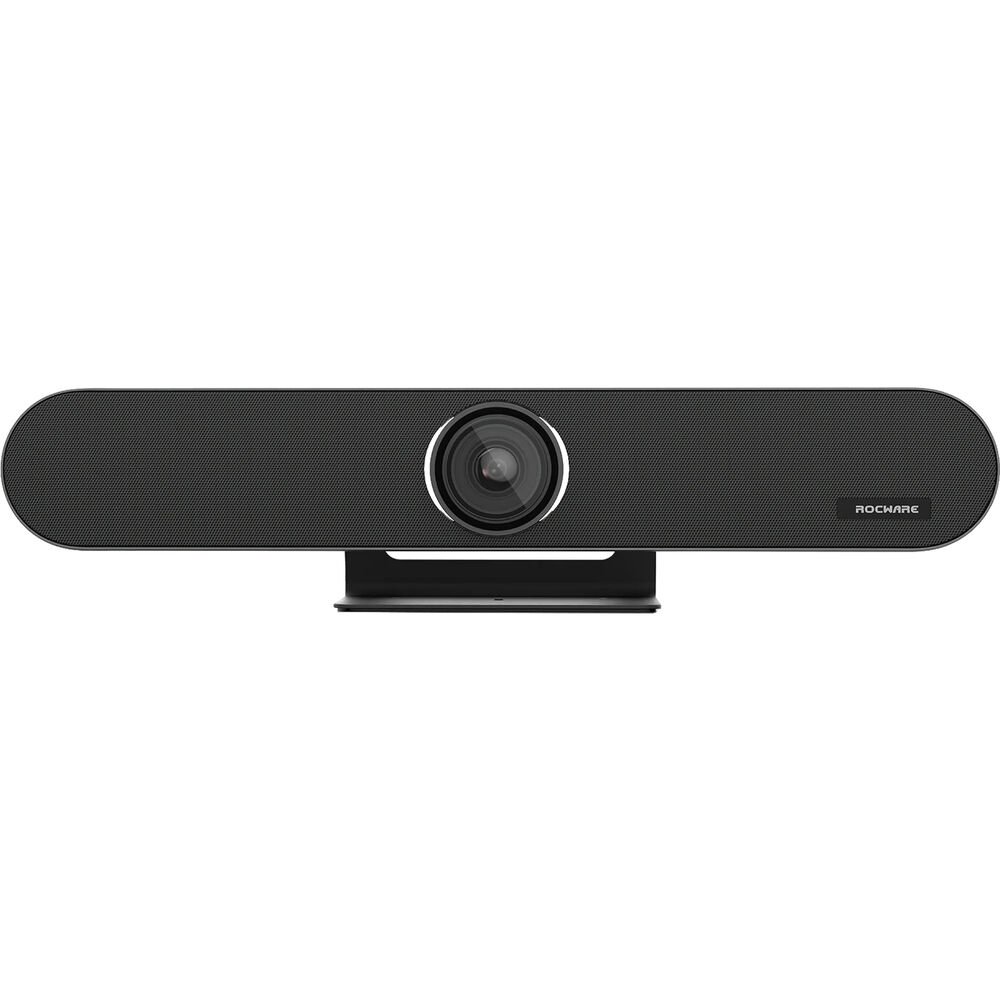

ROCWARE RB10 USB Smart Conferencing Video Bar

Add sharp, clear videoconferencing to your small to medium-sized meeting with the RB10 USB Smart Conferencing Video Bar from ROCWARE. The RB10 features a 20MP video camera, 5x zoom, wireless screen mirroring, 19.7' microphone range, and AI-assisted auto-framing and speaker tracking.

Easily pair the RB10 for BYOD (bring your own device) and BYOM (bring your own monitor) setups. Wireless screen sharing lets you easily display content to your audience.

The RB10 features a powerful camera with a 1/8", 20MP CMOS sensor that captures up to UHD 4K30 high-resolution video. It can also capture HD resolutions such as 1080p, 720p, and more, depending on your streaming needs, to provide clear, accurate communication.

The RB10 features a wide 120° field of view and built-in ±15° pan and tilt functions, and its lens features a 5x optical zoom customized for conference rooms, making it easier for remote attendees to feel part of the conference meeting.

A 5x zoom function and ±15° pan/tilt/zoom motion enable the RB10 to focus sharply on all participants, even as they move around the room.

An auto-framing feature automatically adjusts the camera to cover all participants, keeping everyone in view.

The smart speaker-tracking function employs head, facial, body, and sound recognition to automatically track and focus on the speaker.

Ideal for larger groups, the Smart Gallery function automatically arranges the screen layout, displaying an overview and closeups of the participants simultaneously. The speaker's image flashes with color to enable easy identification.

ROCWARE RB10 Specs

Resolution and Frame Rate	UHD 4K at up to 30 fps 1080p at up to 30 fps 720p at up to 30 fps
Image Sensor	1/1.8"-Type CMOS
Sensor Resolution	20 MP
System Connection	USB-C 3.0 / 3.1/3.2 Gen 1

Resolution and Frame Rate	UHD 4K at up to 30 fps 1080p at up to 30 fps 720p at up to 30 fps
Number of Lenses	1
Image Sensor	1/1.8"-Type CMOS
Sensor Resolution	20 MP
Field of View	Diagonal: 120° Horizontal: 105°
Zoom	5x (Digital)
Pan	30° (-15 to 15°)
Tilt	30° (-15 to 15°)

System Connection	USB-C 3.0 / 3.1/3.2 Gen 1

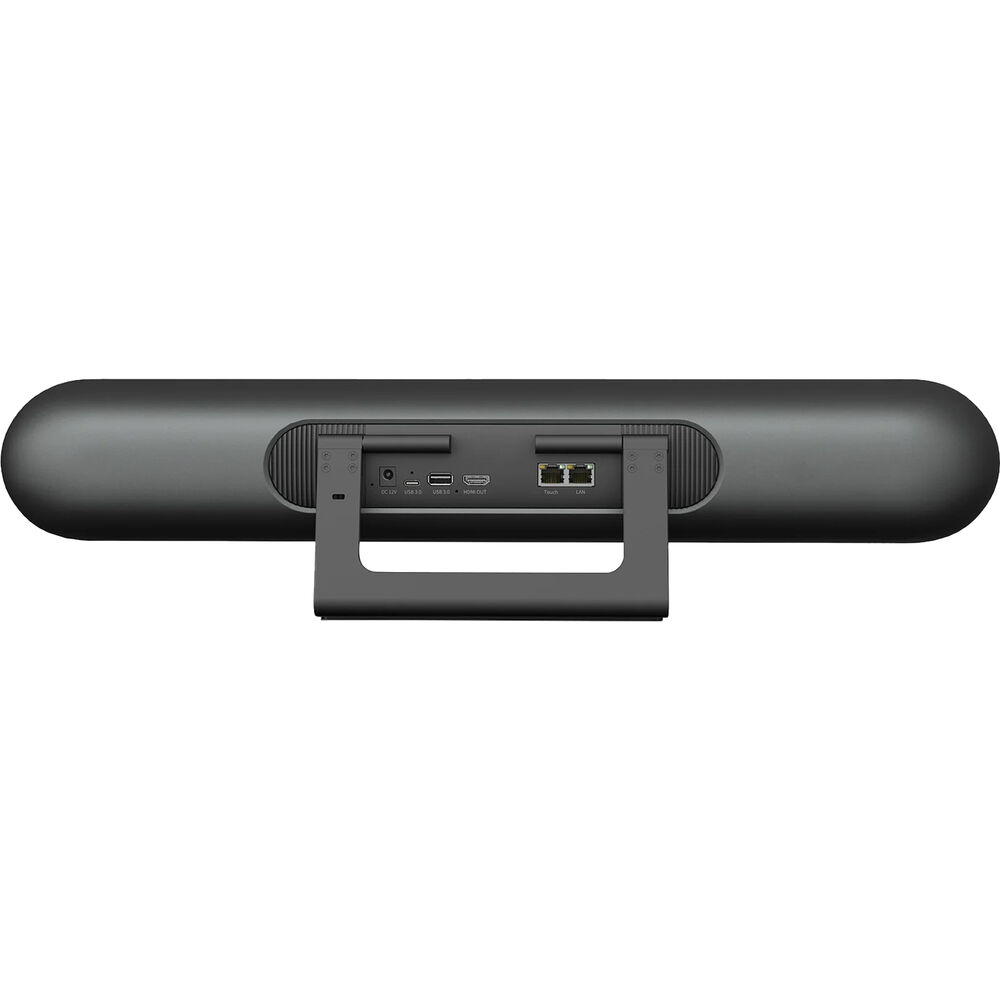

Other I/O	1x HDMI Output 1x USB-A Output 2x RJ45
Bluetooth	5.3
Wi-Fi	Yes
Power Source	AC Adapter
Low-Light Correction	No
Input Power	12 VDC at 2 A
OS Compatibility	Windows / macOS

Microphone	1
Pickup Range	19.7' / 6 m
Polar Pattern	Omnidirectional
Microphone Features	Beam Forming

Built-In Speakers	Yes, 1
Maximum Sound Pressure Level (SPL)	98 dB

Privacy Shutter	No
Security	No
Built-In Light	No
Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-40 to 140°F / -40 to 60°C
Dimensions (W x H x D)	23.6 x 5.3 x 4.6" / 60.0 x 13.5 x 11.7 cm
Weight	5.5 lb / 2.5 kg

Package Weight	9.495 lb
Box Dimensions (LxWxH)	26.2 x 9 x 9"
