Description
Rocstor TrueReach 4K60 Overview
Extend your HDMI reach over IP at distances of up to 230' when using an optional Cat 6 or higher cable with this TrueReach 4K60 HDMI over Cat 6 Extender Kit from Rocstor. Boasting support for HDMI 2.0 and HDCP 2.2 with up to DCI 4K24 and UHD 4K60 resolutions and HDR compatibility, the transmitter and receiver kit is ideal for professional presentations, multimedia centers, and digital signage systems. The integrated IR passthrough feature provides convenient control of HDMI source devices.
The kit features lightning, surge, and electrostatic discharge (ESD) protection and the integrated ipcolor Image technology facilitates usage with security systems and remote monitoring. The sturdy iron construction of the transmitter and receiver reliably protects the units and provides enhanced durability. A set of mounting ears is included, along with 10 screws for mounting.
- Zero-latency HDMI extender for seamless audiovisual transmission
- Supports up to DCI 4K HDR resolution for breathtaking visuals
- Transmission distance of up to 131' for UHD 4K60 and 230' for 1080p60 signals
- ipcolor Image capability for application flexibility including security systems
- Built-in lightning, surge, and ESD protection for equipment safety
- IR pass-through feature for convenient control of HDMI source devices from the remote display location
- EDID passthrough ensures smooth communication between source and display
- Compatible with Cat 6, Cat 6a, and Cat 7 network cables
- Adaptive technology automatically adjusts parameters for optimal display performance
In the Box

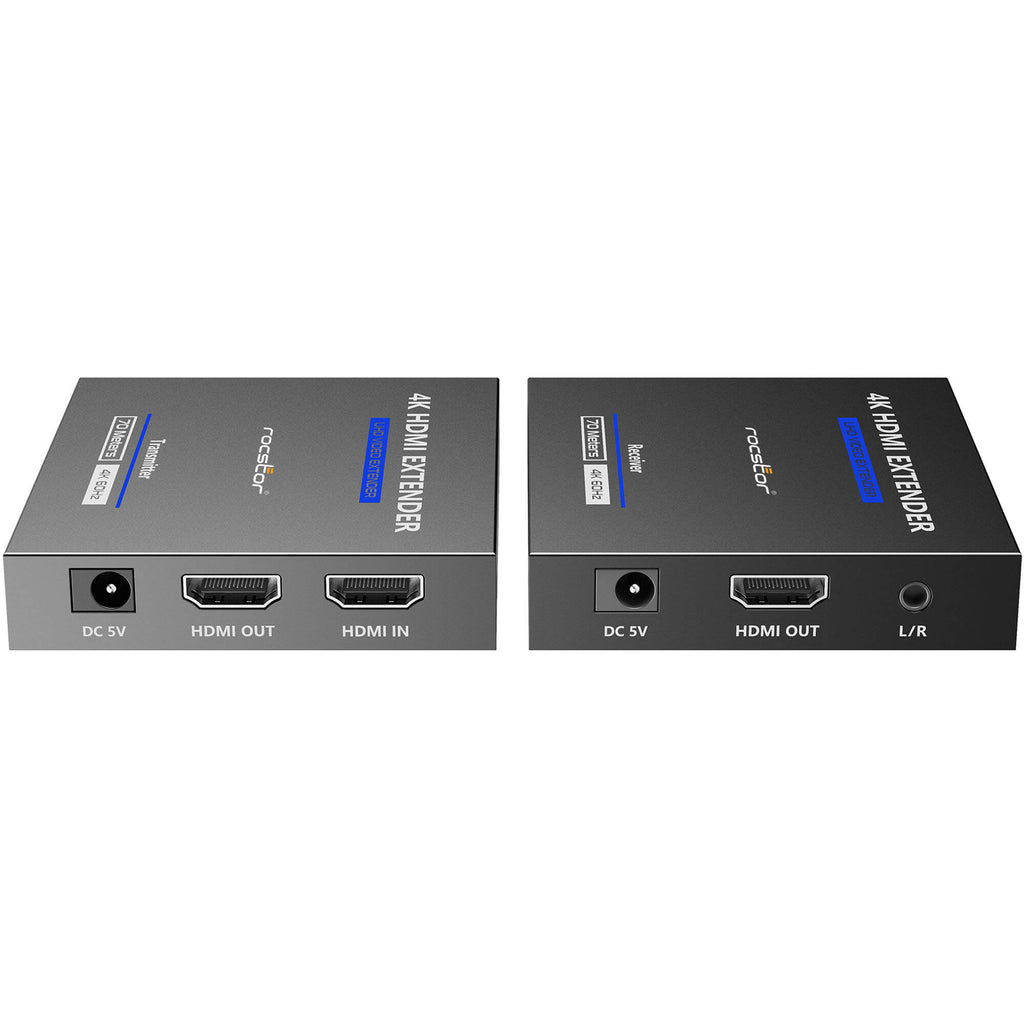

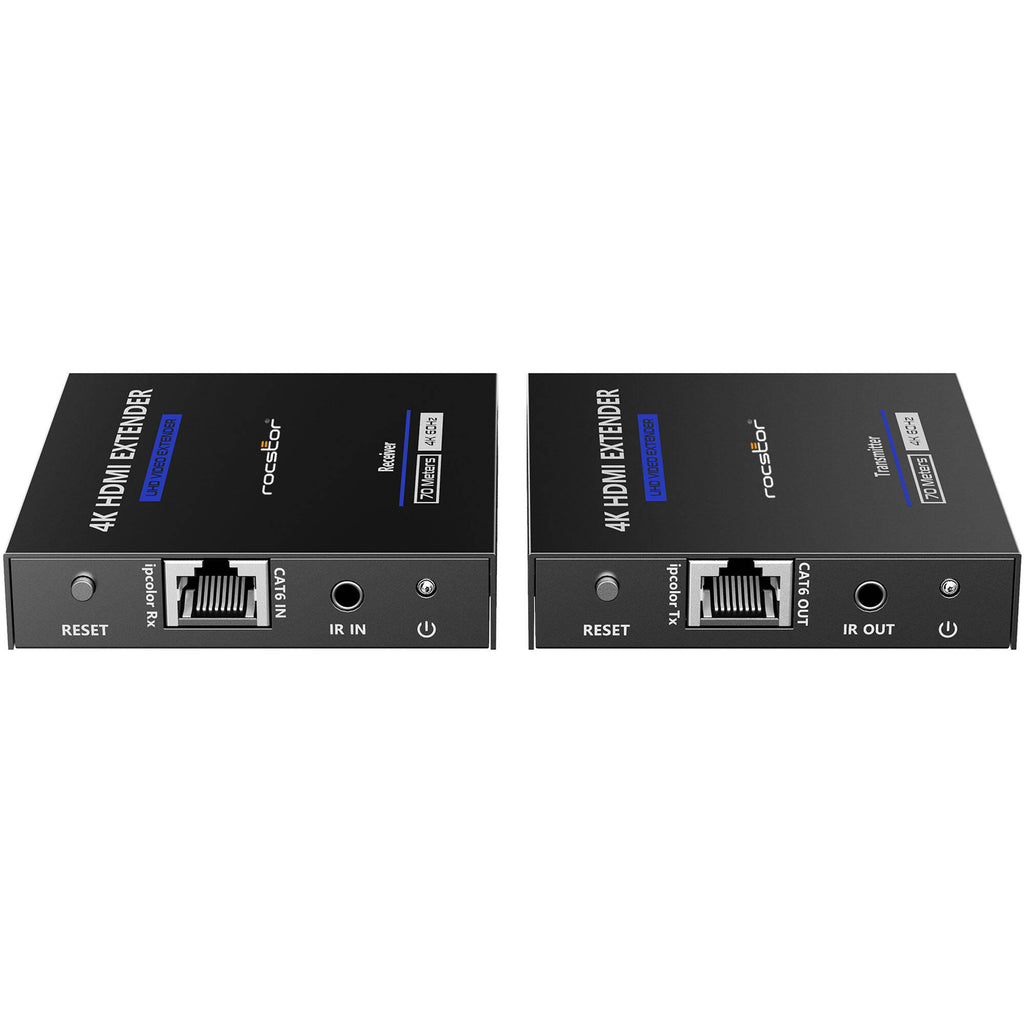

- Rocstor TrueReach 4K60 HDMI over Cat 6 Extender Kit (up to 230')
- Transmitter
- Receiver
- 2 x 5 VDC, 1A Power Adapter
- IR Blaster Extension Cable
- IR Receiver Extension Cable
- 4 x Mounting Ear
- 10 x Screw
- Limited 1-Year Manufacturer Warranty
Rocstor TrueReach 4K60 Specs
| Inputs |
1x HDMI (HDMI 2.0)
|
| Embedded Audio Input |
HDMI
|
| Outputs |
1x RJ45
1x HDMI (HDMI 2.0) |
| Transmitter Other I/O |
1x 1/8" / 3.5 mm IR Output
|
| Inputs |
1x RJ45
|
| Outputs |
1x HDMI (HDMI 2.0)
1x 1/8" / 3.5 mm TRS (Stereo Audio) |
| Receiver Other I/O |
1x 1/8" / 3.5 mm IR Input
|
| HDR Compatibility |
HDR10
|
| Reclocking |
No
|
| HDCP Support |
Yes, Version 2.2
|
| EDID Support |
Passthrough
|
| Max Transmission Distance |
UHD 4K at 60 Hz:
229.7' / 70 m (via Cat 6/6a/7) |
| Video Format |
HDMI
DCI 4K: 24/25 fps UHD 4K: 24/25/30/50/60 fps 1080p: 50/60 fps 1080i: 50/60 fps 720p: 50/60 fps 576p: 50 fps 576i: 50 fps 480p: 60 fps 480i: 60 fps |
| PC Resolutions |
1280 x 2160
1280 x 800 1280 x 768 1680 x 1050 1360 x 768 1366 x 768 1600 x 900 1024 x 768 800 x 600 |
| Audio Format |
S/PDIF
|
| DTS Compatibility |
DTS, DTS-HD High Resolution
|
| Dolby Compatibility |
Dolby Atmos, Dolby Digital
|
| Supported Cable Types |
Cat 6/6a/7
|
| Latency |
0 Frame
|
| Transmitter Power I/O |
1x Barrel (5 VDC at 1 A) Input
|
| Receiver Power I/O |
1x Barrel (5 VDC at 1 A) Input
|
| Transmitter Power Consumption |
(3 W)
|
| Receiver Power Consumption |
(3 W)
|
| Operating Temperature |
-4 to 140°F / -20 to 60°C
|
| Storage Temperature |
-22 to 158°F / -30 to 70°C
|
| Operating Humidity |
0 to 90% ()
|
| Certifications |
FCC, CE, RoHS
|
| Transmitter Dimensions |
3.3 x 3 x 0.6" / 85 x 75.5 x 16.5 mm
|
| Receiver Dimensions |
3.3 x 3 x 0.6" / 85 x 75.5 x 16.5 mm
|
| Transmitter Weight |
4.9 oz / 140 g
|
| Receiver Weight |
4.9 oz / 140 g
|
| Package Weight |
1.41 lb
|
| Box Dimensions (LxWxH) |
7.9 x 5.9 x 3.2"
|
