Description

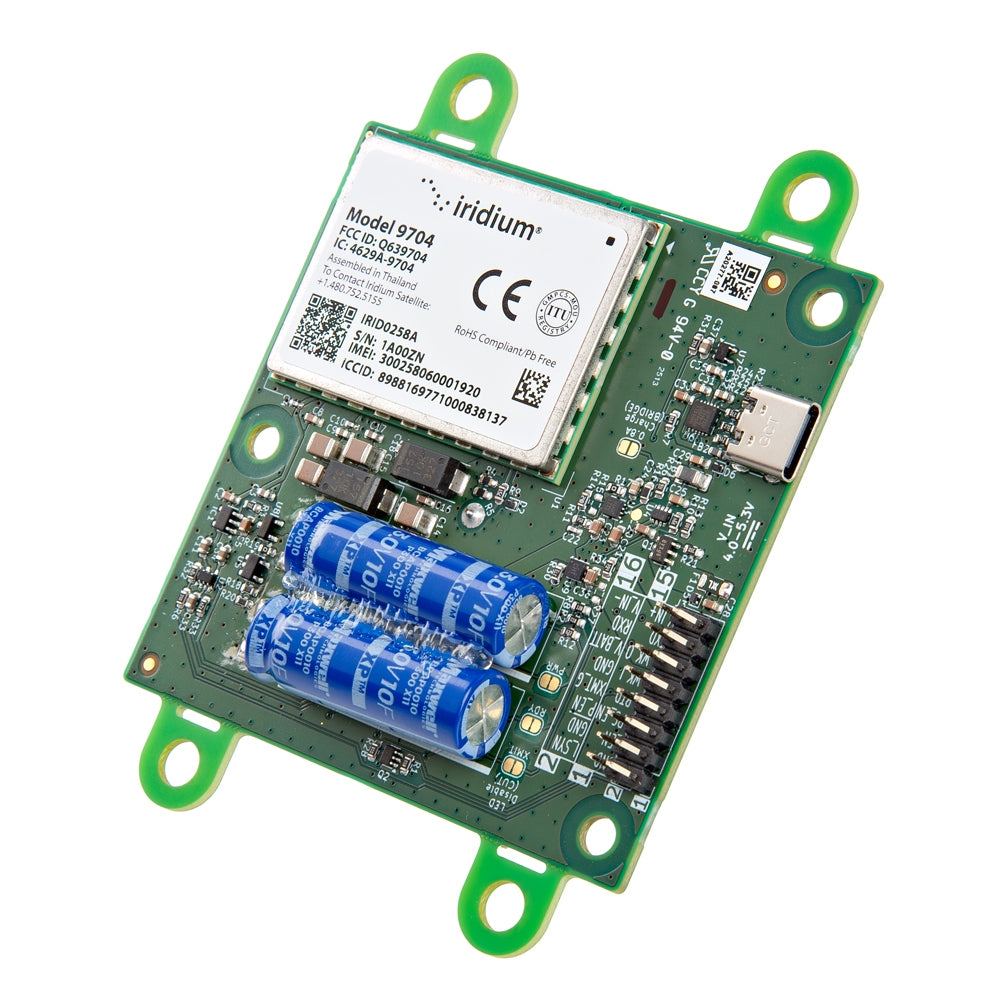

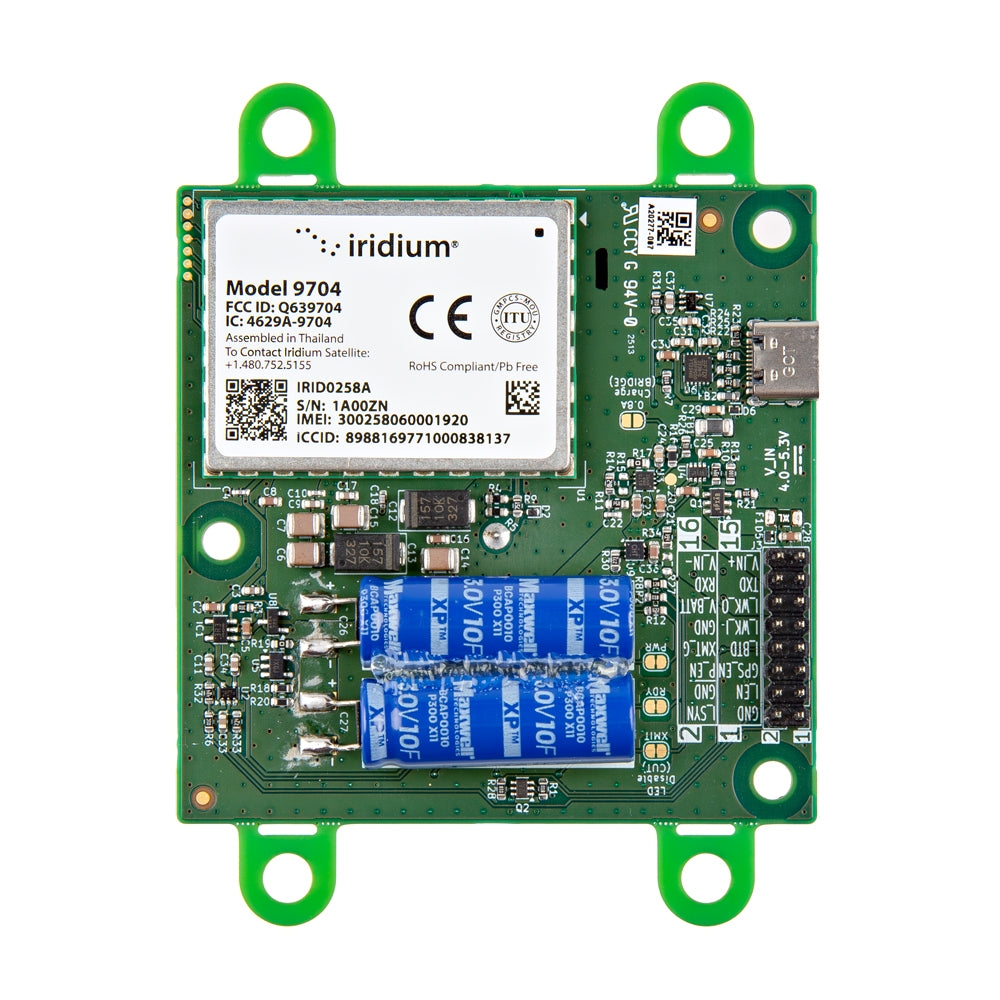

The RockBLOCK 9704 by Ground Control is a breakout board for the new Iridium 9704 including a built-in patch antenna and a supercap charger to enable low power operation. If you need low data rate connectivity over the entire globe, Iridium is the answer.
Features & Specs
Physical – Patch Antenna

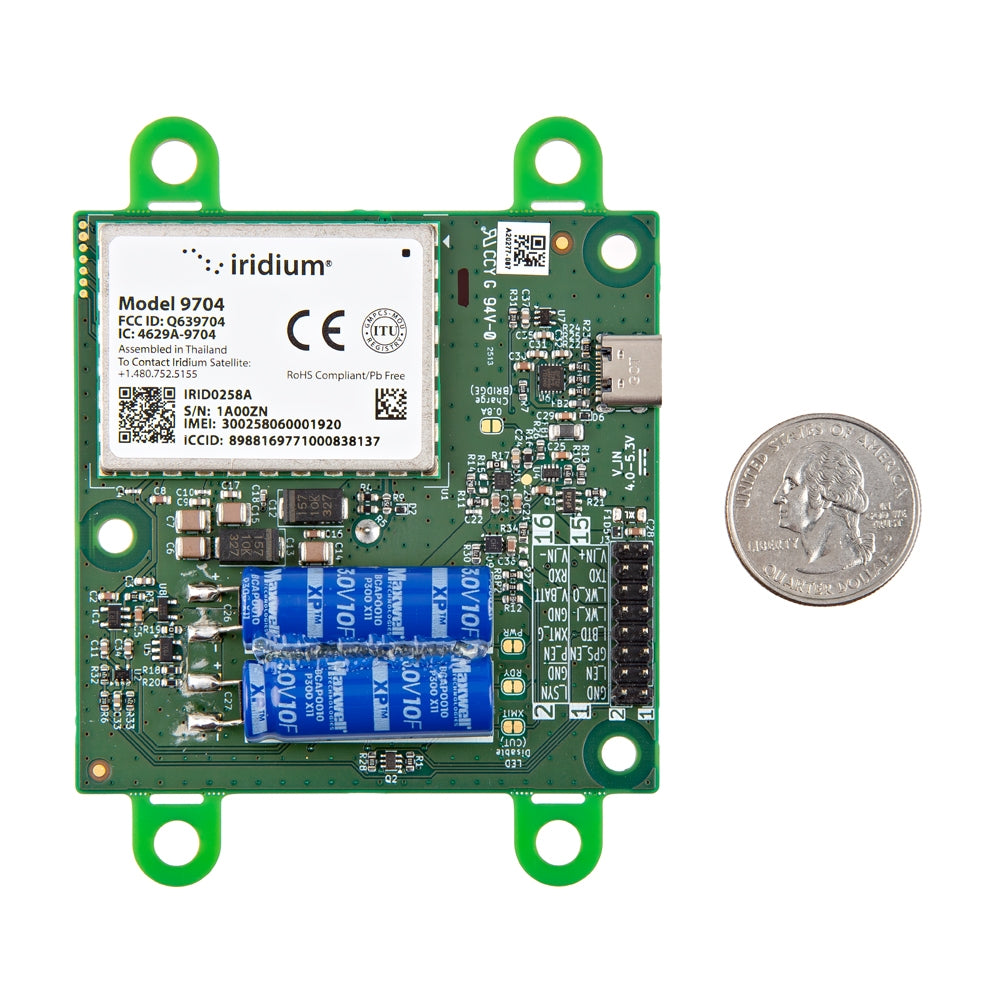

- Dimensions: 72 (95) x 75 x 16.5 mm
- Weight: <50g (inc. patch antenna)
- Form Factor: PCB assembly with 4mm mounting holes

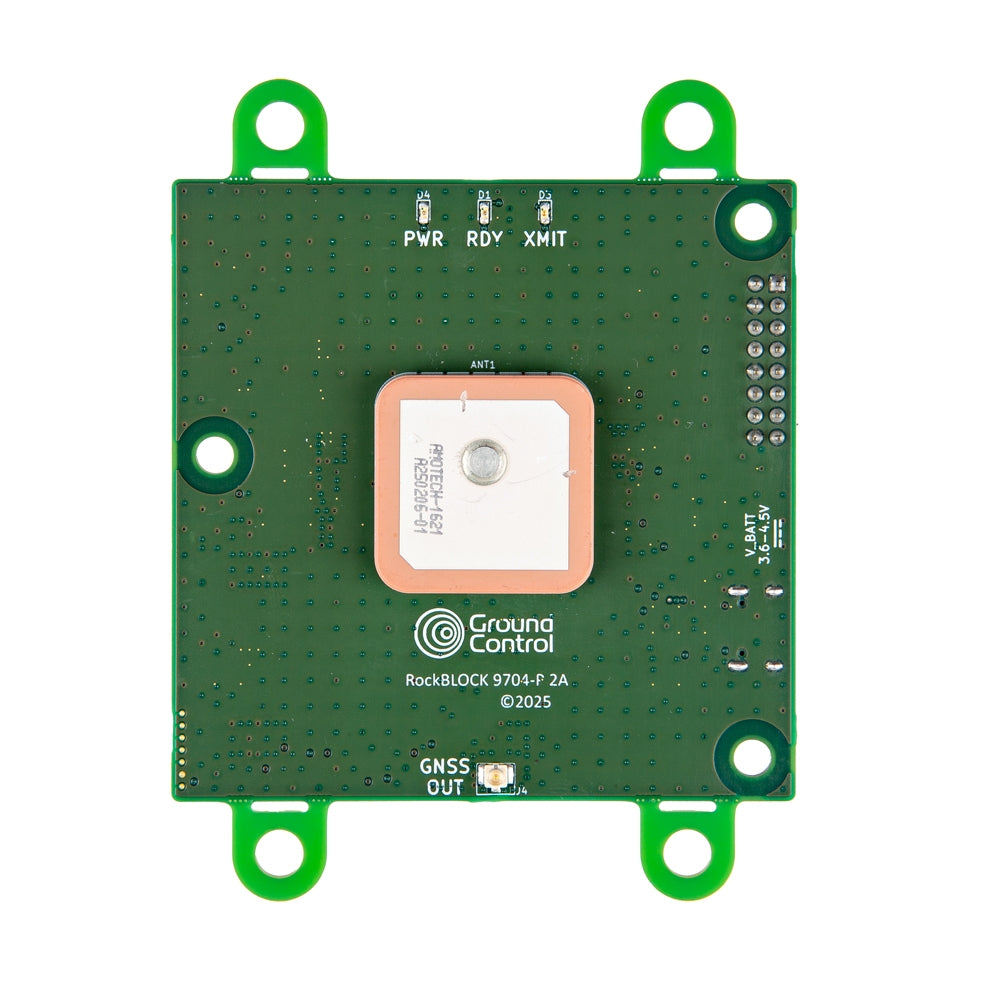

- Antenna: Integrated patch antenna
Environmental
- Operating temperature: -40C to +70C, <95% RH
- Vibration & Shock: SAE J 1455
- Ingress Rating: n/a
Connections
- 16-pin 0.1" pitch male header
- USB-C
- U.FL for GNSS
Electrical & Power
- Voltage: 4.0-5.3 V DC, 3.6-4.5 V Battery, 5 V USB-C
- Power consumption (max): 1.4 W
- Power consumption (min): < 5 mW (sleep mode)
- Power consumption (idle): < 60 mW (registered with network, listening, ready to transmit/receive)
Communication Interfaces
- Iridium Messaging Transport: 4.8kbps bi-directional messages from 10 to 100,000 bytes. Latency typically < 10s between remote and cloud applications
- GNSS: U.FL connector available for separate GNSS Passthrough
- Serial: TTL UART connection (default: 230400baud)
- USB-C: USB-Serial bridge (default: 230400baud)
- Digital GPIO: 5x inputs, 3x outputs. Connection via 16 way cable assembly
Developer & Platform Support
- C & Python libraries, tutorials, and example code
- Cloudloop integration for message handling and cloud service delivery
- Prepaid airtime with automatic suspension for cost control
Features & Specs
Physical – Patch Antenna
- Dimensions: 72 (95) x 75 x 16.5 mm
- Weight: <50g (inc. patch antenna)
- Form Factor: PCB assembly with 4mm mounting holes
- Antenna: Integrated patch antenna
Environmental
- Operating temperature: -40C to +70C, <95% RH
- Vibration & Shock: SAE J 1455
- Ingress Rating: n/a
Connections
- 16-pin 0.1" pitch male header
- USB-C
- U.FL for GNSS
Electrical & Power
- Voltage: 4.0-5.3 V DC, 3.6-4.5 V Battery, 5 V USB-C
- Power consumption (max): 1.4 W
- Power consumption (min): < 5 mW (sleep mode)
- Power consumption (idle): < 60 mW (registered with network, listening, ready to transmit/receive)
Communication Interfaces
- Iridium Messaging Transport: 4.8kbps bi-directional messages from 10 to 100,000 bytes. Latency typically < 10s between remote and cloud applications
- GNSS: U.FL connector available for separate GNSS Passthrough
- Serial: TTL UART connection (default: 230400baud)
- USB-C: USB-Serial bridge (default: 230400baud)
- Digital GPIO: 5x inputs, 3x outputs. Connection via 16 way cable assembly
Developer & Platform Support
- C & Python libraries, tutorials, and example code
- Cloudloop integration for message handling and cloud service delivery
- Prepaid airtime with automatic suspension for cost control
