Description
RME HDSPe AoX-M Overview

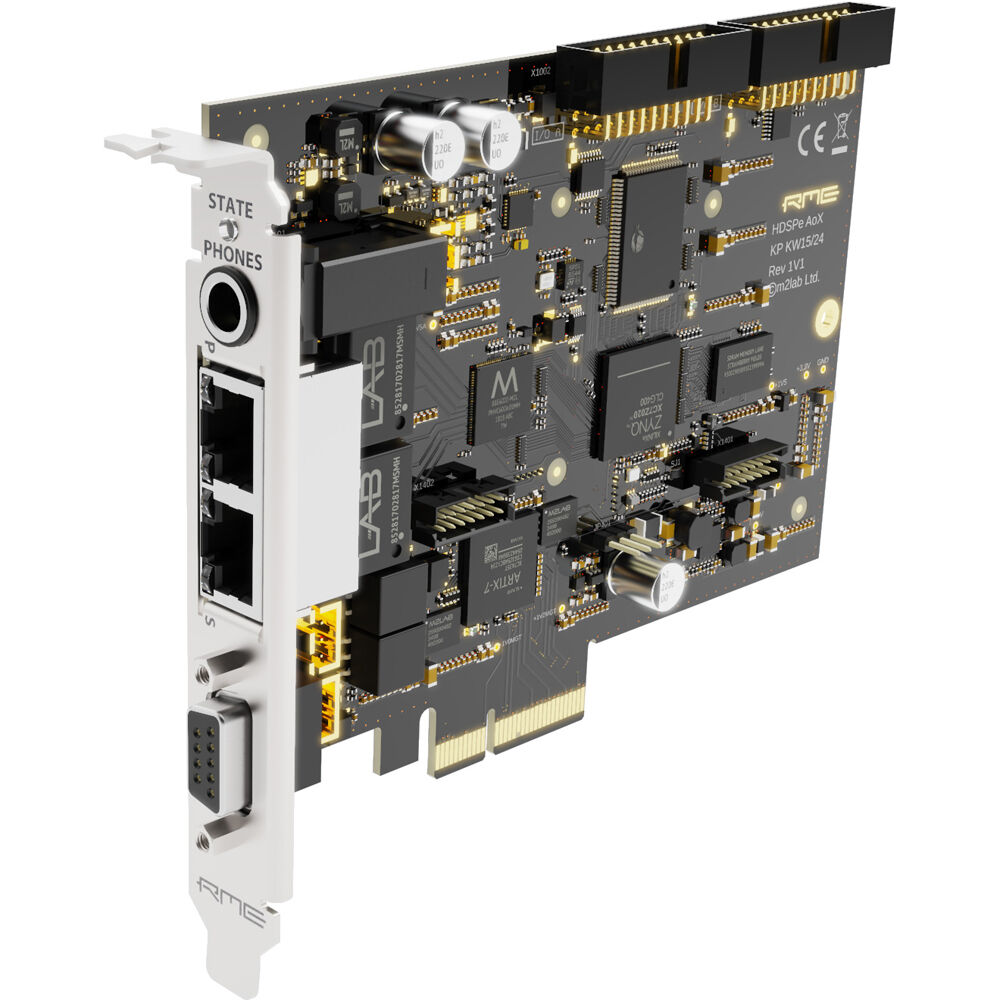

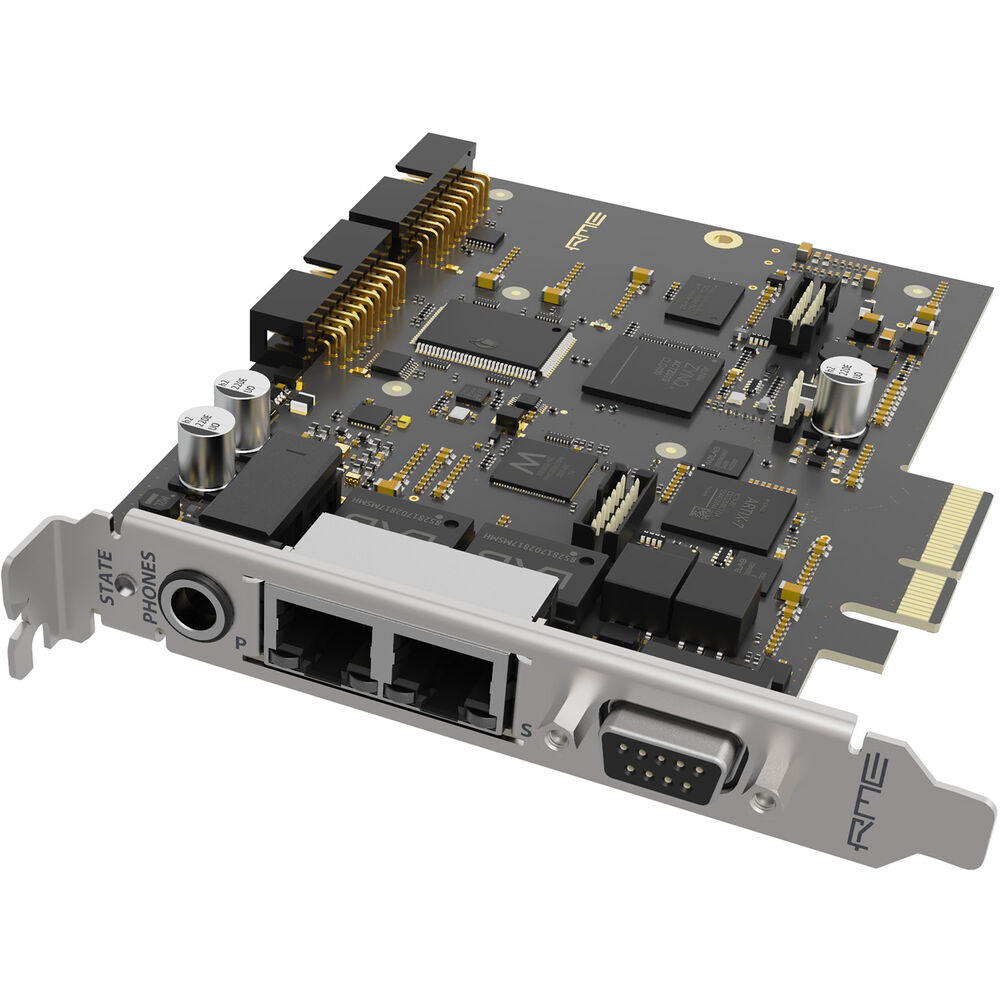

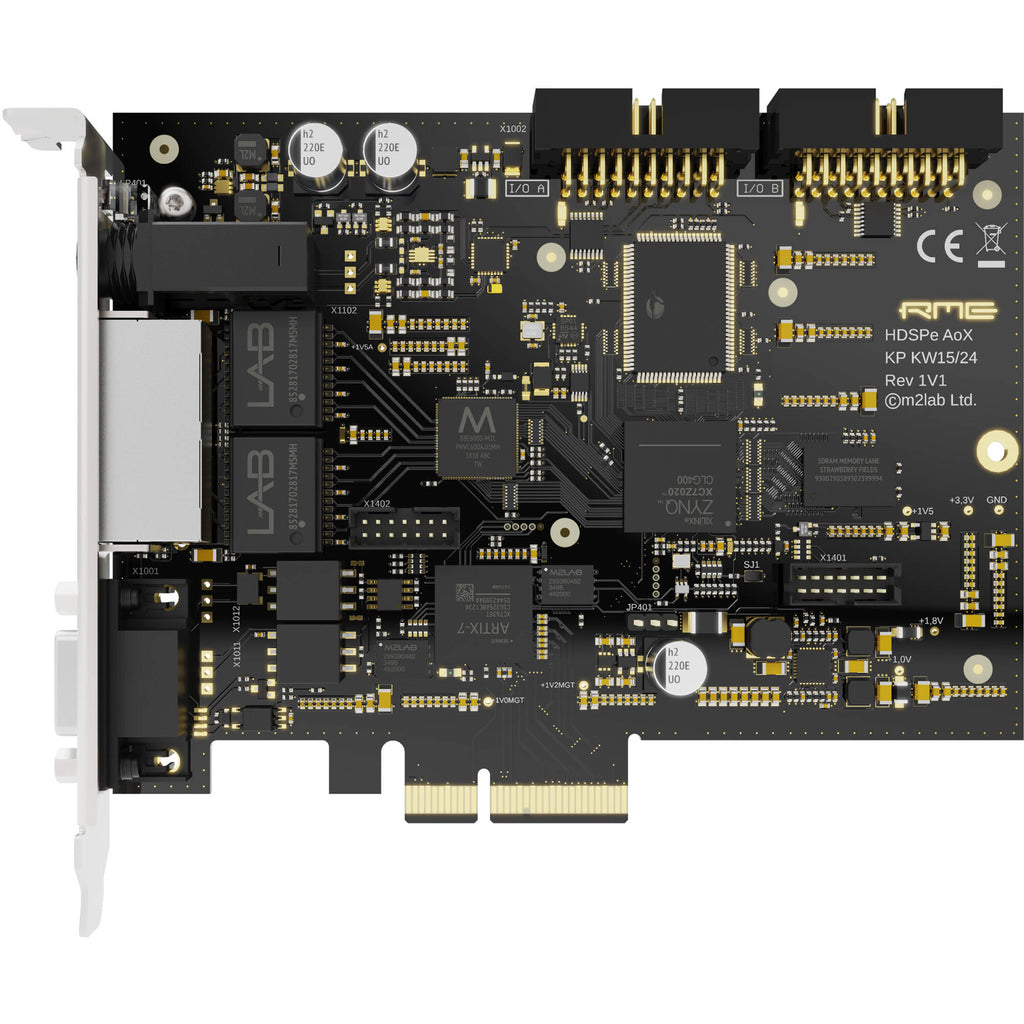

Deliver high-channel AVB/Milan and MADI counts to any Mac/Windows digital audio workstation with the RME HDSPe AoX-M 512-Channel PCI Express Card. Occupying a single slot, this PCIe interface transmits and receives up to 128 channels of AVB/Milan audio signals on two separate RJ45 gigabit Ethernet ports.
The network audio channels can partially be replaced with MADI signals by adding up to two optional dual-optical SFP (AOX MADI Coax) or dual-coaxial (AoX MADI Optical) extension cards, making it possible to integrate four MADI I/O signals, plus up to 256 network audio channels per direction, within a single audio interface.
- The DSP-based TotalMix mixer allows fully independent routing and mixing of input and playback channels to all physical outputs. Independent stereo submixes and a comprehensive Control Room section offer unrivalled monitoring capabilities and unsurpassed routing flexibility.

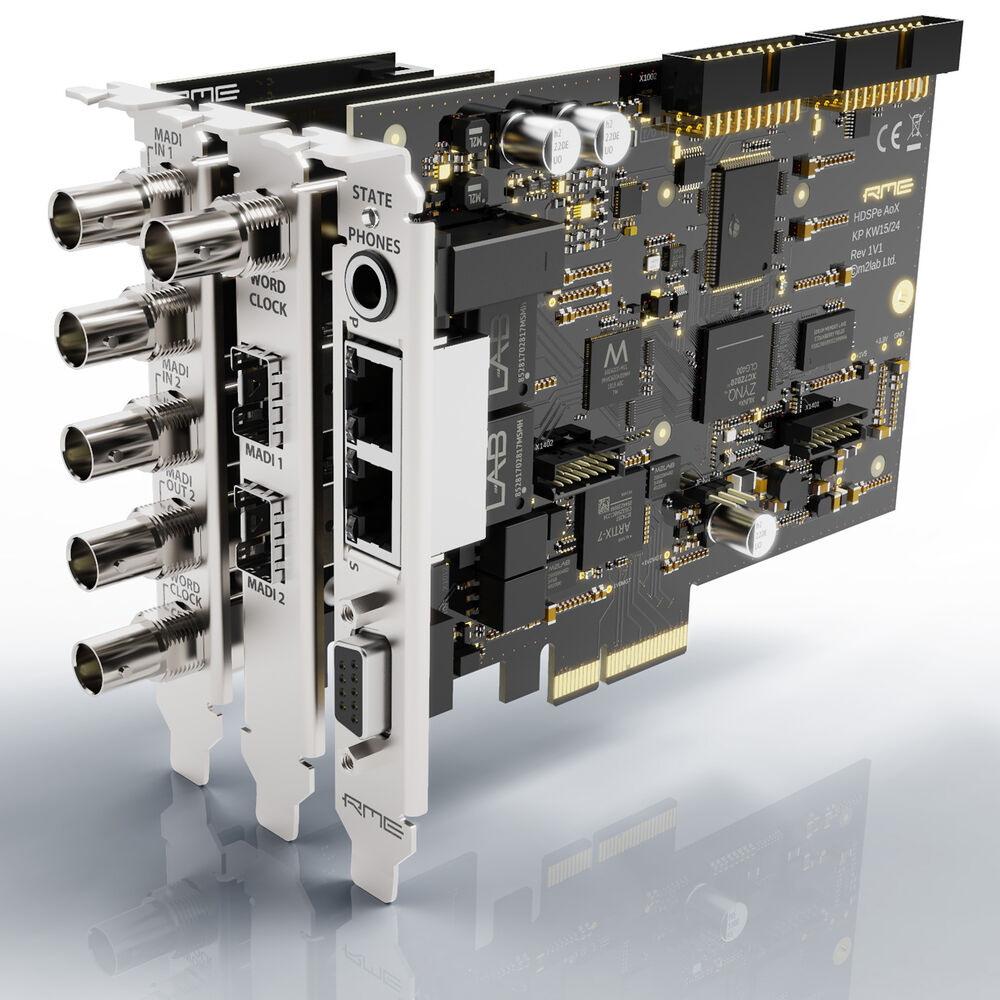

- AoX MADI Optical 128x128 MADI Expansion Board enables you to add 128 channels of MADI audio to the PCIe card. The board features two optical SFP I/O connectors and a BNC Word Clock I/O connector (SFP Multi Mode MADI modules included, SFP Single Mode MADI module optional).
- AOX MADI Coax 128x128 MADI Expansion Board enables you to add 128 channels of MADI audio to the PCIe card. The board features two BNC MADI input connectors and two BNC MADI output connectors. There is also a BNC Word Clock IN/Out connector.
- 128x128 channels of AVB/Milan audio
- Up to 128x128 channels of MADI audio (with optional expansion boards)
- 2 x Gigabit Ethernet (802.3 compliant)
- 1 x stereo AES/EBU I/O
- 1 x MIDI I/O
- 1 x stereo phones output
- 24-bit / 192 kHz audio
- ARC USB remote control for TotalMix FX (via computer's USB port)
- The card can be installed in external Thunderbolt enclosures as a perfect addition to mobile recording setups, or installed in common DAWs or audio processors
- RME HDSPe AoX-M 512-Channel PCI Express Card AVB/Milan and MADI
- Breakout Cable (AES3 and MIDI I/O)
- Limited 2-Year Manufacturer Warranty
