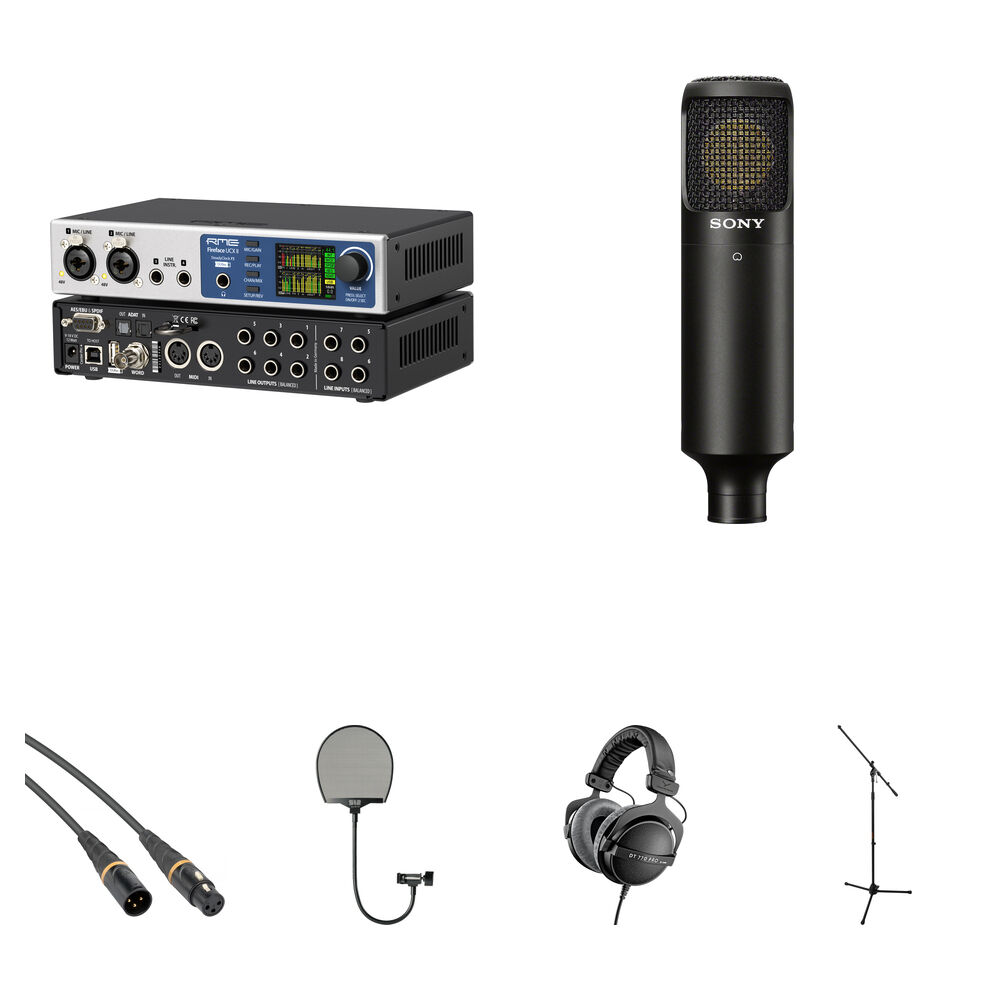

RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface with Songwriting Kit

Big on Features, Small on Size

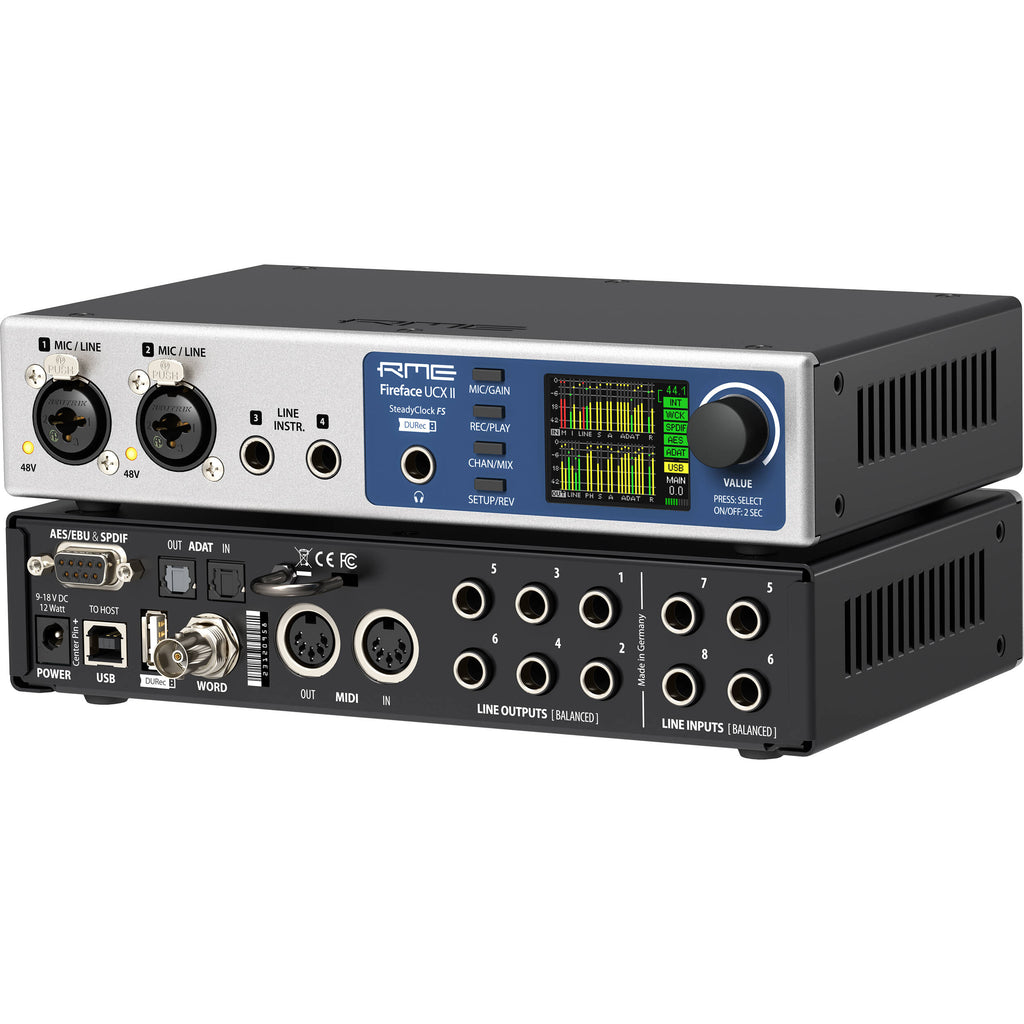

The Fireface UCX II is a highly integrated pro-audio solution in an ultracompact format for studio and live recordings. It continues RME's long tradition of designing advanced compact interfaces, packing into a half-rack size unit what usually would be spread outover two or three 19" panels.

With up to 20 channels for recording and playback, SteadyClock FS, high-performance microphone inputs, parametric EQ, dynamics processing, echo, reverb, DURec (Direct USB Recording), MIDI I/O, a powerful headphone output, and full standalone operation, the Fireface UCX II excels with RME's highest feature-to-space ratio ever.

TotalMix FX with Room EQ and Binaural Crossed for Immersive Audio

• The Fireface UCX II comes with the TotalMix FX DSP mixer offering comprehensive routing and monitoring options, as well as the DIGICheck Analyzer allowing to measure and analyze the digital data feed in both directions with maximum precision.
• The integration of Room EQ adds room calibration to the RME eco-system, making your Fireface perfect for Immersive audio setups including Dolby ATMOS. Room EQ consists of nine bands of fully parametric EQ, individual output delay, and volume calibration. Users can freely assign up to twenty 20 Room EQs at once to any output(s) they wish including stereo, headphone, and digital outputs for maximum flexibility. Settings can be input manually or imported using tools like Sonarworks or Room EQ Wizard.
• Also added is a feature called Binaural Crossed. This functionality provides speaker emulation in headphones-perfect for mixing stereo or ATMOS in headphones. The Crossfeed function emulates speaker behavior in terms of channel separation, so the extremely wide ambience experienced in headphones can be set in 5 stages.

Special Functionality

• Full standalone operation, no computer required
• DURec-integrated digital recorder allows you to record directly to USB memory devices
• All channels (20 inputs and 20 outputs) can be individually chosen for recording and playback
• CV/gate low-latency voltage control for automating synthesizers, mixing consoles, and effects
• SteadyClock FS reference-class digital clocking
• USB out for ARC USB remote control (available separately)
• Compatible with TotalMix FX for iPad
• DIGICheck turns the interface into a highly versatile front-end for audio measurements and software development
• Class-compliant mode for Linux environments and compatibility with iPads and iPhones (separately available connection kits may be needed)
• Crisp high-resolution color display shows metering for all input and output channels

Eight Analog Inputs

• Two XLR-1/4" combo mic/line preamps with phantom power and up to 75 dB of gain, plenty even for low-output dynamic mics such as the Shure SM7B
• Two 1/4" TRS inputs for balanced line-level sources or unbalanced Hi-Z instruments
• Input sensitivity for line/Hi-Z inputs switchable to 19 or 13 dBu
• Four rear-panel balanced 1/4" TRS line-level inputs with up to 12 dB of gain, perfect for patching in synths or outboard gear
• All analog inputs are digitally controlled

Eight Analog Outputs

• Six balanced 1/4" TRS line outputs with high dynamic range (115 dBA) and three selectable output levels (+19, +13, or +4 dBu)
• High-power 1/4" stereo headphone output

Digital I/O

• 8-channel ADAT I/O via TOSLINK optical ports
• 2-channel AES3 I/O via breakout cable
• 2-channel S/PDIF I/O via breakout cable
• USB-B host connection for Mac/Windows/Linux supports USB 2.0 and 3.0 standards

Extra Connections

• DIN 5-pin MIDI I/O for connecting keyboard controllers, arranger workstations, and synthesizers
• BNC wordclock jack can be assigned as an input or output
• Barrel input for included power adapter

Dual-Diaphragm Design

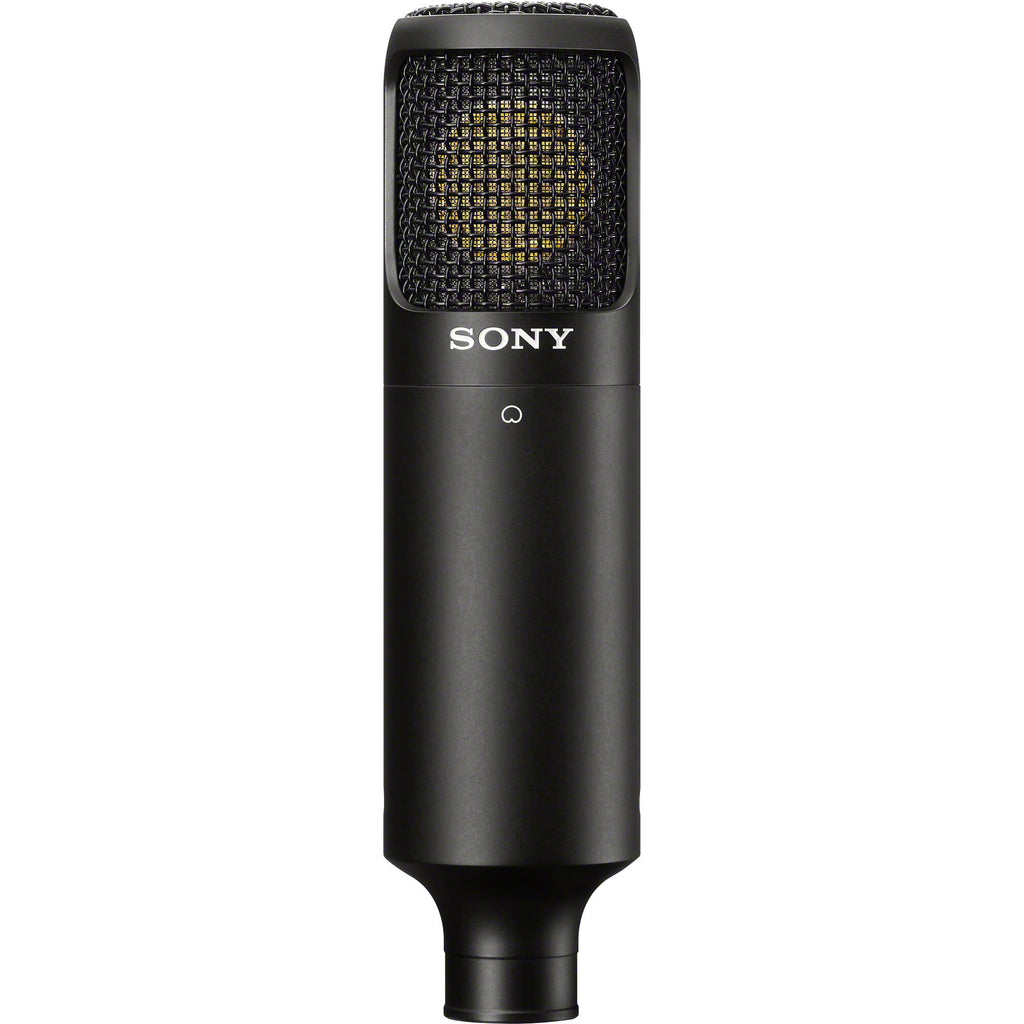

At the core of the C-80's excellent sonic character is the dual-diaphragm microphone element, which helps to minimize proximity effects for sonically consistent recordings. In addition, the cardioid polar pattern focuses audio capture at the area around the mic, reducing unwanted sound from the rear and sides.

Exceptional Signal Response

The large-diaphragm condenser element yields a true frequency response of 20 Hz to 20 kHz with a dynamic range of more than 125.5 dB. The result is a flat-frequency response that maintains detail with low signals and transients. With a high sensitivity of -30 dB/Pa, the C-80 microphone can capture subtle nuances at high frequencies with low noise levels and minimum distortion.

Aluminum Body

The C-80 microphone incorporates a two-part aluminum body that helps to prevent acoustic vibration from reaching the microphone capsule, resulting in clarity of sonic reproduction.

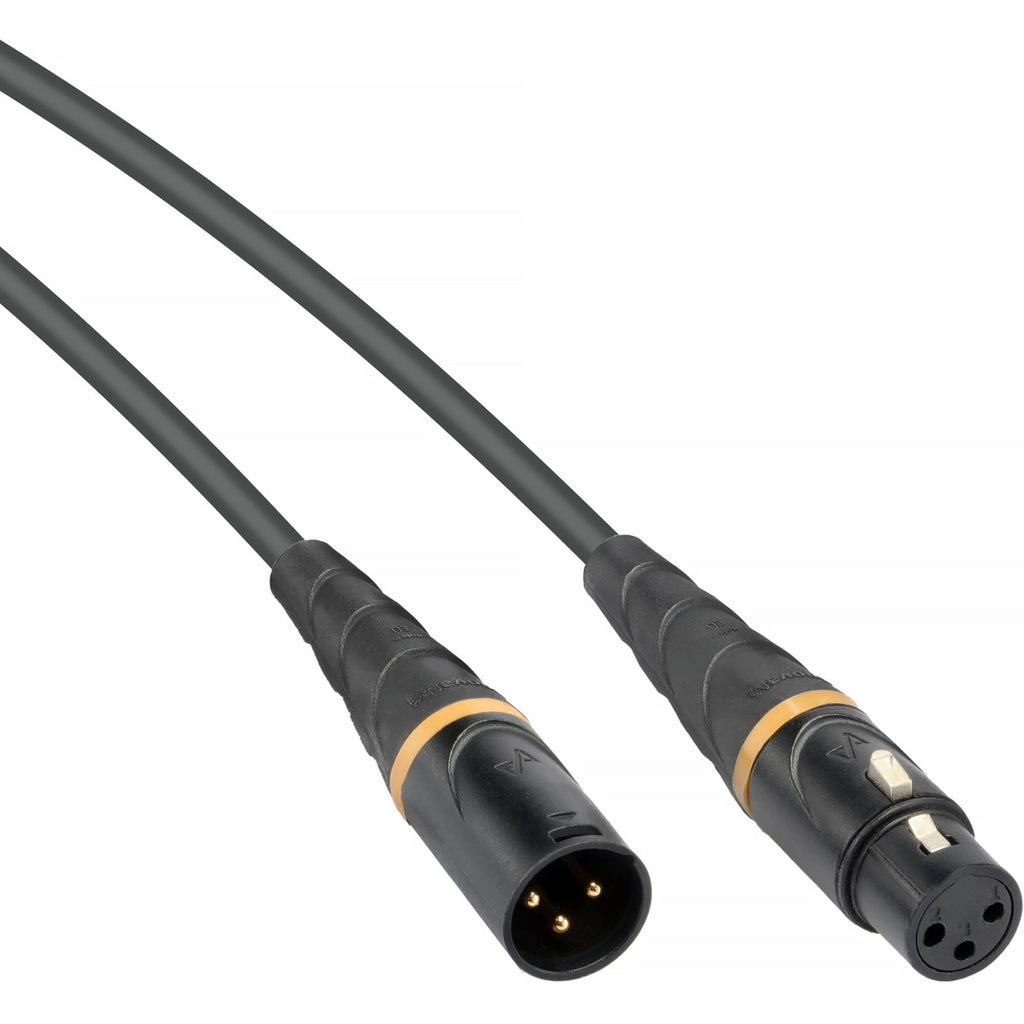

The True Mold technology merges the connectors and the cable to a fully integrated, ready-made-cable. Only the essential components of the XLR connectors are used and as a result overcoming the weaknesses of the individual connectors.

Manufactured in Europe, the EnovaNxt cable is designed for on-stage applications and offers an improved production again dust and water.

Gold-plated XLR contacts ensure an optimal conductivity, better corrosion protection and increased durability when mating frequently.

98% copper spiral shield offers protection from EMI and RFI noise.

To avoid short-circuit faults, the solder joints are protected and secured by a true injection mold.

The cable features an interchangeable color coding ring; with this feature, event technicians and musicians can change the color coding of the cable at any time making cumbersome rewiring obsolete.

Environmentally friendly manufacturing and packaging.

Lifetime Warranty?Made in Europe.

Cleaner Sound

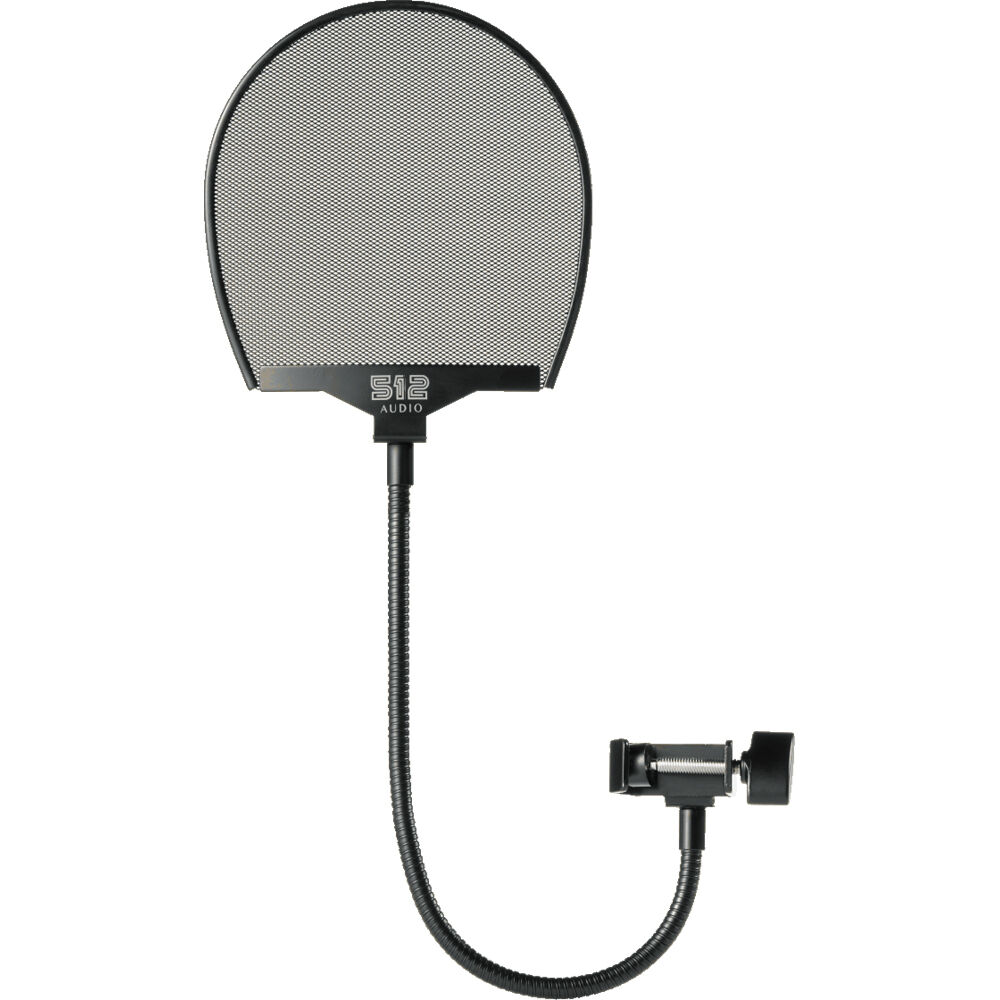

By preventing intrusive pops and plosives caused by bursts of air from p, f, and s sounds, the 512-Pop delivers a clear sound while saving you the time and energy often spent removing such sounds in postproduction.

Enhanced Protection

The 512-Pop features a metal mesh filter that more effectively disperses pops and plosives from speech and vocals compared to ordinary nylon pop filters. With its flexible yet sturdy gooseneck, you'll easily find the perfect placement that reliably stays in place.

Easy Attachment

An adjustable swivel C-clamp ensures a solid grip and attaches securely to any mic stand, boom arm, or custom desk stand.

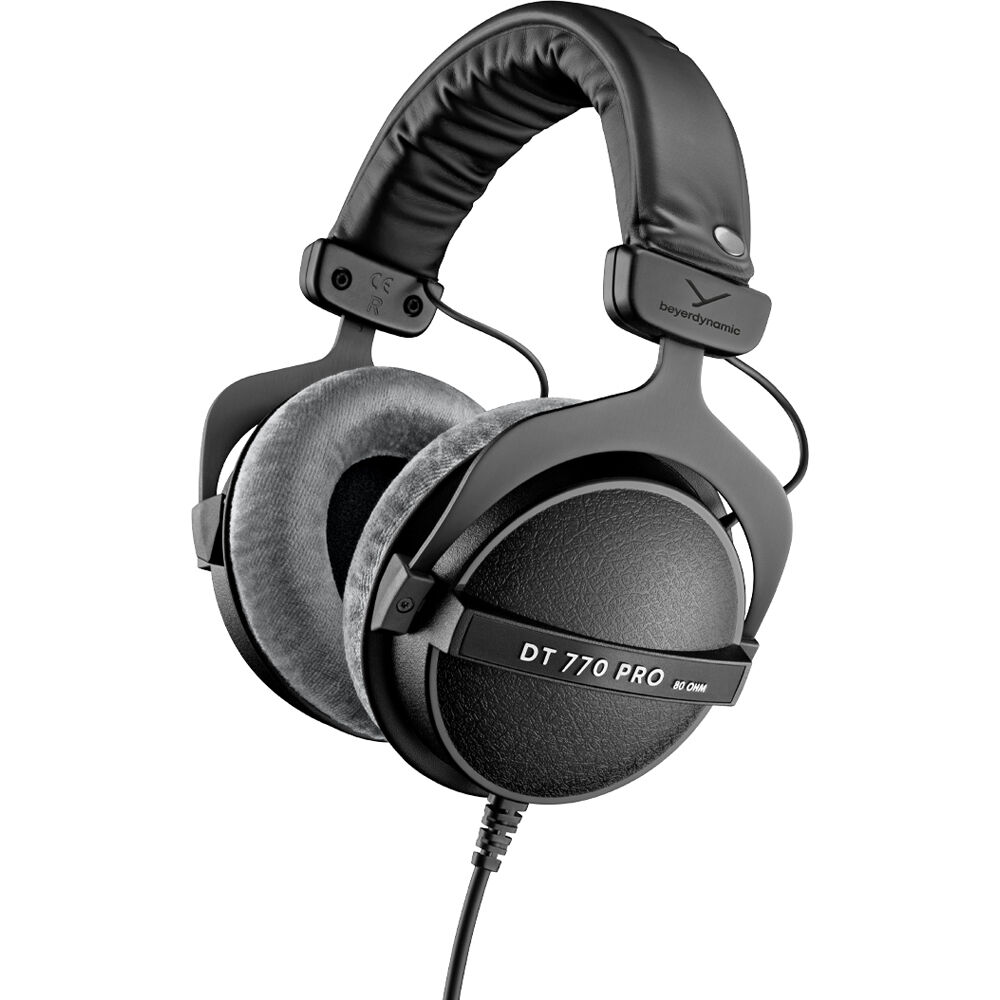

Reference Headphones for Professional Monitoring

Delivering legendary resolution and neutral transparency for decades of professional studio work, the 80-ohm DT 770 PRO from Beyerdynamic are over-ear, closed-back reference headphones designed for studio work and audiophile use. With an innovative bass reflex system and a lightweight design, these headphones offer premium sound for long listening sessions.

With 80-ohm impedance, this configuration sits in a balanced place between being able to power demanding 250-ohm and consumer-grade 32-ohm headphones, providing a versatile design that will excel on high-end audio sources while being easily driven by smart devices. The wide frequency range of 5 Hz to 35 kHz reproduces nuance and detail within audio signals, and the DT 770 PRO sports an optimized impulse response for clear transients and accuracy. The ergonomics are refined for long-lasting durability and comfort, thanks to soft and replaceable velour earpads and a padded headband with a sturdy spring steel hoop. The DT 770 PRO includes a 1/4" TRS plug adapter.

For decades, professionals all over the world have placed their trust in the classic DT 770, 880, and 990 PRO headphones. These studio headphones boast extremely detailed resolution and a very transparent sound.

Previously available in only 250- and 32-ohm versions, these 80-ohm editions are an ideal choice for professionals or enthusiasts seeking versatility. Capable of delivering top-notch audio from high-powered amps and DACs while also being easily driven by mobile devices, 80 ohms offer the best of both worlds. Advantages include:

• Super sound quality, especially when paired with a dedicated headphone amp
• A wider soundstage with more precise imaging
• High scalability, with the ability to improve sound quality when a better audio source or amp is used

The headphones are designed for critical music and sound monitoring, providing a perfectly neutral listening environment with exceptional isolation and top-notch impulse response. High frequencies are translated into an analytical and differentiated sound. Ultralow bass sounds are defined and reproduced crisply.

• Breathable velour: The soft velour earpads offer breathability, for a high level of comfort and long-lasting durability.
• Flexible temple construction: The robust spring steel hoop gives the headphones a secure fit.
• Lightweight construction: At a mere 13.2 oz including the cable, the headphones are surprisingly light and yet sturdy, so nothing stands in the way of long studio sessions.
