- For Suspended Rail Sliders & Dollies
- Two 13" Cross Bars with Rail Brackets
- Supports 1 to 2" Pipe Sizes
- Works with Square Rail up to 1.75"
- 5 to 11" Rail Bracket Width
- 3/8"-16 Center and End Mounting Threads
- Baby Junior Stand Adapters Included
- Compatible with MicroWheel Carriages

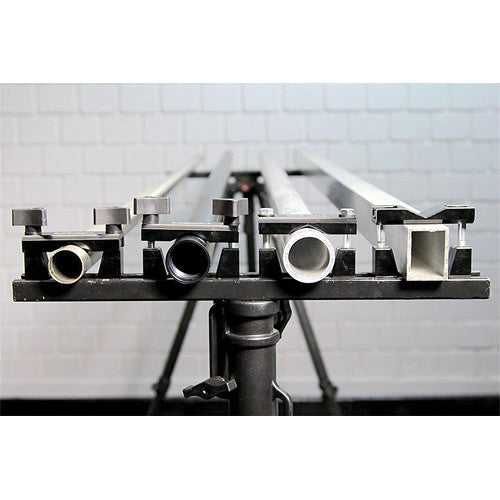

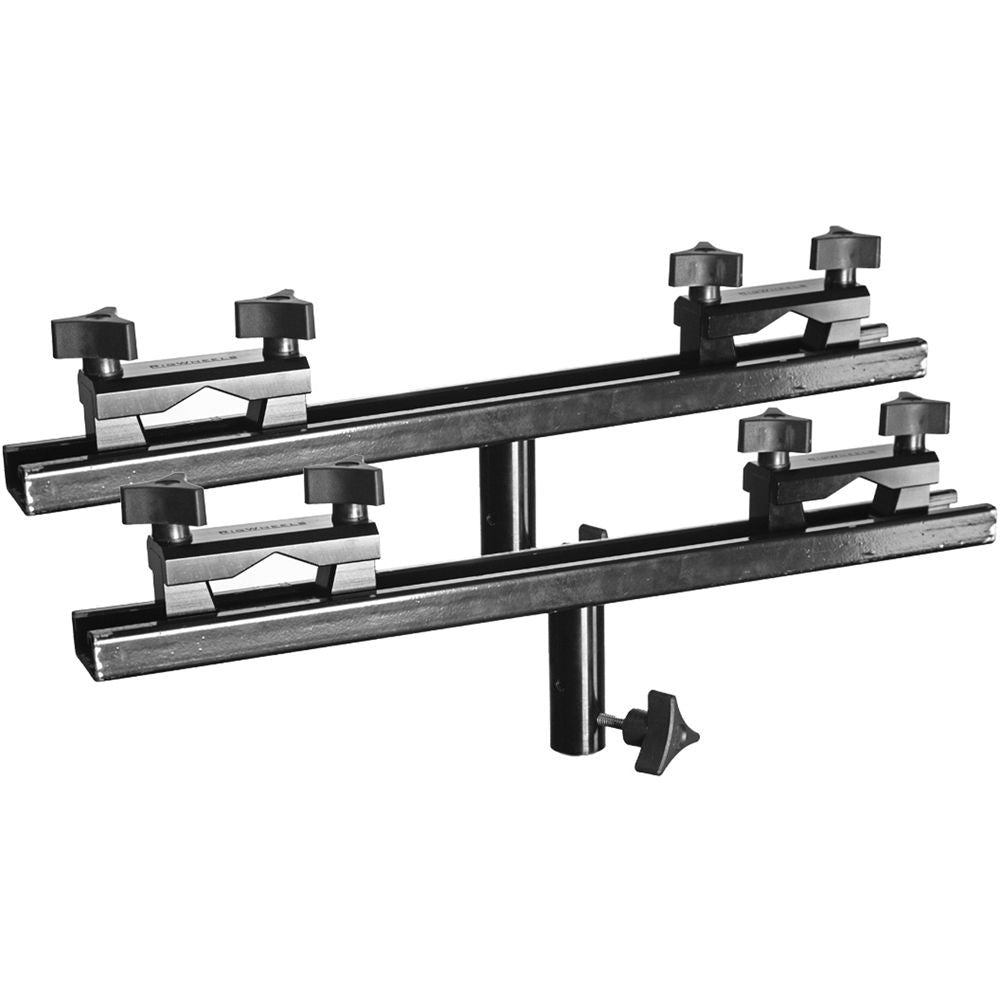

Accommodating various track widths and pipe sizes, the Universal Rail Brackets with 13" Cross Bars from RigWheels can be used with a wide range of suspended rail type sliders and dollies. The package includes two 13" cross bars, each coming with a pair of rail brackets that support pipes with an outside diameter between 1 and 2". The brackets will also support square or rectangular rails up to 1.75" wide.

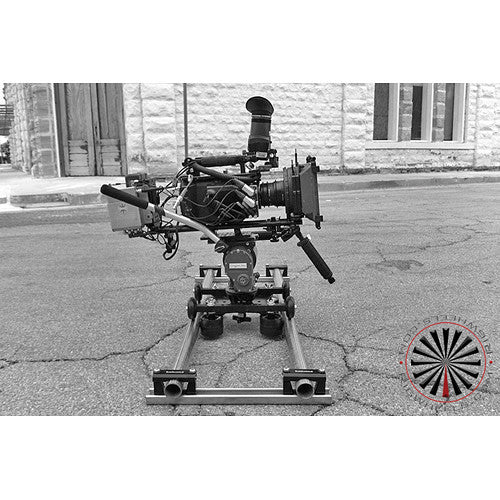

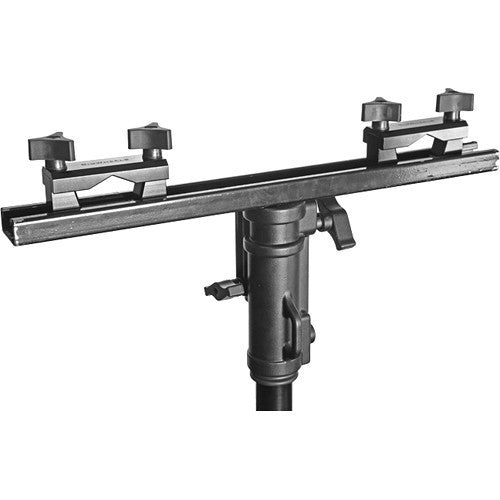

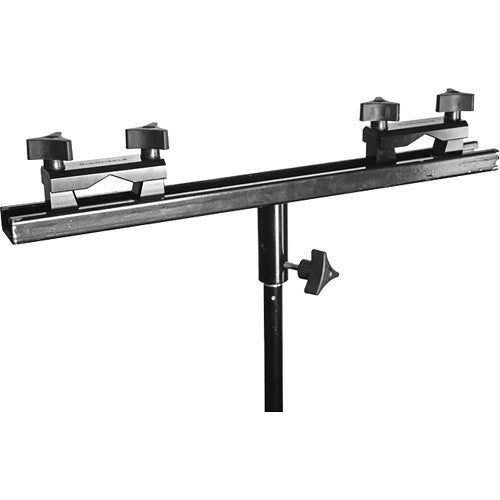

For a truly universal system, the distance between the rails (center to center) is adjustable along the 13"" support, with a minimum distance of 5" and maximum distance of 11". The 13" bar is the ideal size for the RigWheels MicroWheel Stage-1, Stage-2, and Stage-3 Camera Slider Carriages. For versatile mounting, the cross bar features 3/8"-16 threaded holes in the center and ends of the track. A pair light stand adapters are included for supporting the track using light stands with a 5/8" baby pin.
UPC: 854821004439
In the Box
RigWheels Universal Rail Brackets with 13" Cross Bars
- 2 x 13" Cross Bar
- 4 x Variable Size Pipe Clamp
- 2 x Baby Junior Adapter
- 8 x 3 Prong Knob with 5/16"-18 Screw
- 2 x 3 Prong Knob with 1/4"-20 Screw
- 8 x 5/16" Washer
- 2 x 3/8" x 3/4" Bolt
- 2 x 3/8" Split Washer
- 2 x 3/8" Washer
- Limited 1-Year Warranty
| Bar Length | 13" (33 cm) |
| Clamp Diameter | Pipe: 1 to 2" (24 to 50 mm)
Square/Rectangular Rails: up to 1.75" (44.5 mm) |
| Packaging Info |
| Package Weight | 8.3 lb |
| Box Dimensions (LxWxH) | 14.1 x 10.4 x 10.2" |
