Description
RigWheels RDR-P Overview
- 1 Description
- 2 RigWheels RailDolly
- 3 RigWheels Universal Rail Brackets with 18" Cross Bars
- 4 RigWheels 100mm Bowl Adapter for RigPlate Pro
- 5 RigWheels 75mm Bowl Adapter for RigPlate Pro
- 6 RigWheels Flat Mount Adapter for RigPlate Pro
- 7 RigWheels 3" Stand Offs with 1/4"-20 Threads (Set of 4)

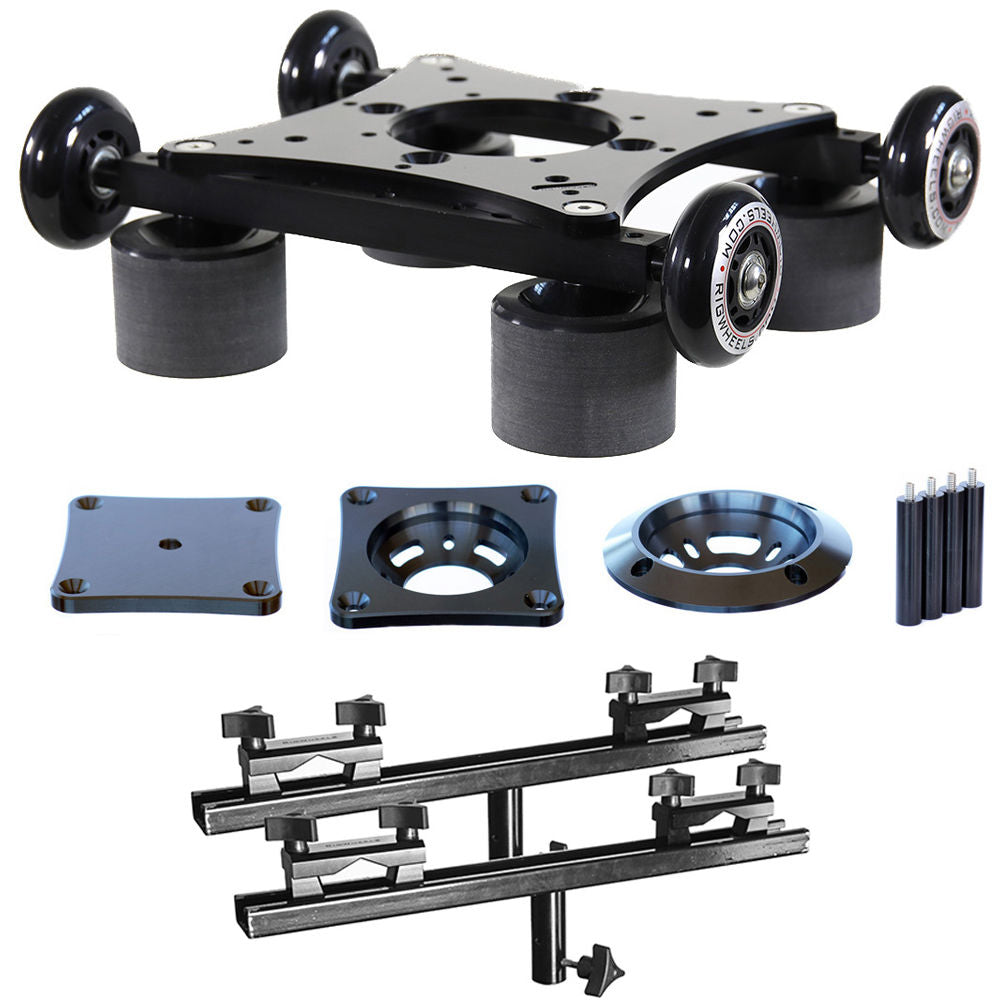

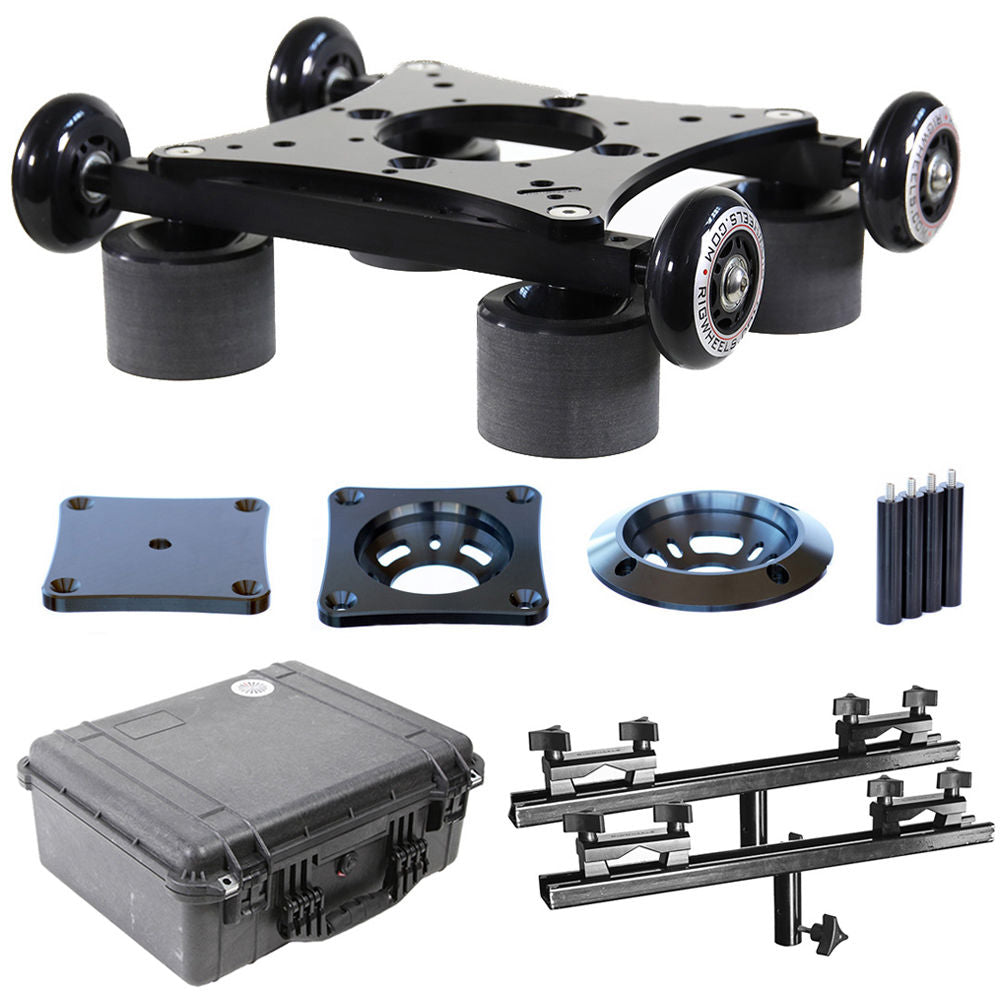

The RailDolly Pro Kit from RigWheels is designed for uses where you can provide your own rails and support stands. The kit includes the RailDolly Carriage, Universal End Brackets with 18" crossbars, three Pro head adapter plates (flat, 75mm bowl, 100mm bowl), and a set of 3" plate risers. In keeping with RigWheels' multipurpose philosophy, the kit components can also be configured for use as the RigSkate Pro.
RigWheels RailDolly
Flexibility and ease of use are at the heart of Rig Wheel's Rail Dolly a multi-function camera slider/dolly. The heart of the rail dolly is the RigWheels RigPlate, which is a superellipse (square with inwardly curved sides) shaped metal plate that features 1/4", 3/8", and 5/16" through holes. The pre-drilled through holes allow you to mount a variety of optional accessories directly to the plate. The RailDolly glides silently on round, square, or rectangular track, riding on semi-soft skate wheels that incorporate ABEC 7 rated precision bearings.
The Rig Plate is black anodized and features chamfered edges. It features a threaded 3/8"-16 threaded hole in the center for mounting optional flat base tripod heads. Optional collars are available for mounting ball leveling fluid heads. The components included with the RailDolly allow you to configure it to ride on track or convert it to a tabletop skate dolly.
RigWheels Universal Rail Brackets with 18" Cross Bars
Accommodating various track widths and pipe sizes, the Universal Rail Brackets with 18" Cross Bars from RigWheels can be used with a wide range of suspended rail type sliders and dollies. The package includes two 18" cross bars, each coming with a pair of rail brackets that support pipes with an outside diameter between 1 and 2". The brackets will also support square or rectangular rails up to 1.75" wide.
For a truly universal system, the distance between the rails (center to center) is adjustable along the 18"" support, with a minimum distance of 5" and maximum distance of 16". The 18" bar is the ideal size for the RigWheels RailDolly configurations. For versatile mounting, the cross bar features 3/8"-16 threaded holes in the center and ends of the track. A pair light stand adapters are included for supporting the track using light stands with a 5/8" baby pin.
RigWheels 100mm Bowl Adapter for RigPlate Pro
The RigWheels 100mm Bowl Adapter for RigPlate Pro enables you to quickly mount a ball-leveling tripod head to the versatile RigPlate Pro plate component. This adapter fastens to separately available 3" or 6" RigWheels risers for greater flexibility.
RigWheels 75mm Bowl Adapter for RigPlate Pro
The RigWheels 75mm Bowl Adapter for RigPlate Pro enables you to quickly mount a ball-leveling tripod head to the versatile RigPlate Pro plate component. This adapter fastens to separately available 3" or 6" RigWheels risers for greater flexibility.
RigWheels Flat Mount Adapter for RigPlate Pro
The RigWheels Flat Mount Adapter for RigPlate Pro enables you to quickly mount a flat-based tripod head to the versatile RigPlate Pro plate component. This adapter fastens to separately available 3" or 6" RigWheels risers for greater flexibility.
RigWheels 3" Stand Offs with 1/4"-20 Threads (Set of 4)
One of several sizes offered by RigWheels , this set of four 3" Stand Offs with 1/4"-20 Thread s can be used in a variety of camera or grip rigs. With a diameter of 5/8", these risers can be used with standard grip heads.
In the Box
- RigWheels RailDolly
- RigWheels RP01 RigPlate
- 2 x RigWheels RA01 1-RigAxle
- RigWheels Inline Wheels (4-Pack)
- RigWheels LW04 Longboard Wheels (4-Pack)
- 4 x 5/16" Bolts, 3.5" Long
- 4 x 5/16" Bolts, 1.25" Long
- 4 x 5/16" Wing Nut
- 4 x 5/16" Washer
- 3/8" Bolt, 0.75" Long
- 3/8" Washer
- RigWheels Universal Rail Brackets with 18" Cross Bars
- 2 x 18" Cross Bar
- 4 x Variable Size Pipe Clamp
- 2 x Baby Junior Adapter
- 8 x 3 Prong Knob with 5/16"-18 Screw
- 2 x 3 Prong Knob with 1/4"-20 Screw
- 8 x 5/16" Washer
- 2 x 3/8" x 3/4" Bolt
- 2 x 3/8" Split Washer
- 2 x 3/8" Washer
- Limited 1-Year Warranty
- RigWheels 100mm Bowl Adapter for RigPlate Pro
- Limited 1-Year Warranty
- RigWheels 75mm Bowl Adapter for RigPlate Pro
- Limited 1-Year Warranty
- RigWheels Flat Mount Adapter for RigPlate Pro
- Limited 1-Year Warranty
- RigWheels 3" Stand Offs with 1/4"-20 Threads (Set of 4)
- 4 x 1" Set Screw
- Limited 1-Year Warranty
- Description
- RigWheels RailDolly
- RigWheels Universal Rail Brackets with 18" Cross Bars
- RigWheels 100mm Bowl Adapter for RigPlate Pro
- RigWheels 75mm Bowl Adapter for RigPlate Pro
- RigWheels Flat Mount Adapter for RigPlate Pro
- RigWheels 3" Stand Offs with 1/4"-20 Threads (Set of 4)
RigWheels RailDolly Specs
| Tracks | Rides On Round: 1 to 2" / 2.54 to 5.1 cm Square Rectangular |
| Package Weight | 6.16 lb |
| Box Dimensions (LxWxH) | 15.7 x 12.45 x 6.45" |
RigWheels Universal Rail Brackets with 18" Cross Bars Specs
| Bar Length | 18" (45.7 cm) |
| Clamp Diameter | Pipe: 1 to 2" (24 to 50 mm) Square/Rectangular Rails: up to 1.75" (44.5 mm) |
| Package Weight | 7.495 lb |
| Box Dimensions (LxWxH) | 20.2 x 6.95 x 6.7" |
RigWheels 100mm Bowl Adapter for RigPlate Pro Specs
| Head Fitting | 100 mm bowl |
| Material of Construction | Aluminum |
| Dimensions | 5 x 5 x 3" / 12.7 x 12.7 x 7.6 cm |
| Weight | 1 lb / 0.45 kg |
| Package Weight | 0.67 lb |
| Box Dimensions (LxWxH) | 8.7 x 5.75 x 1.75" |
RigWheels 75mm Bowl Adapter for RigPlate Pro Specs
| Head Fitting | 75 mm bowl |
| Material of Construction | Aluminum |
| Dimensions | 5 x 5 x 3" / 12.7 x 12.7 x 7.6 cm |
| Weight | 1 lb / 0.45 kg |
| Package Weight | 0.35 lb |
| Box Dimensions (LxWxH) | 8.75 x 6 x 1.2" |
RigWheels Flat Mount Adapter for RigPlate Pro Specs
| Head Fitting | Flat |
| Material of Construction | Aluminum |
| Dimensions | Not specified by manufacturer |
| Weight | Not specified by manufacturer |
| Package Weight | 0.465 lb |
| Box Dimensions (LxWxH) | 11.9 x 5.5 x 0.4" |
RigWheels 3" Stand Offs with 1/4"-20 Threads (Set of 4) Specs
| Mounting Threads | 1/4"-20 |
| Thread Depth | 0.75" / 19 mm |
| Dimensions (Ø x L) | 5/8" x 3" / 76.2 mm |
| Package Weight | 0.39 lb |
| Box Dimensions (LxWxH) | 8.7 x 5.5 x 0.75" |
