Description
RigWheels LR-20-H Overview
- 1 Description
- 2 RigWheels Cloud Mount Slingshot 20 Vibration Isolator
- 3 RigWheels PortaRail Camera Slider Rod (40" Section)
- 4 RigWheels PRC1 PortaRail Connector

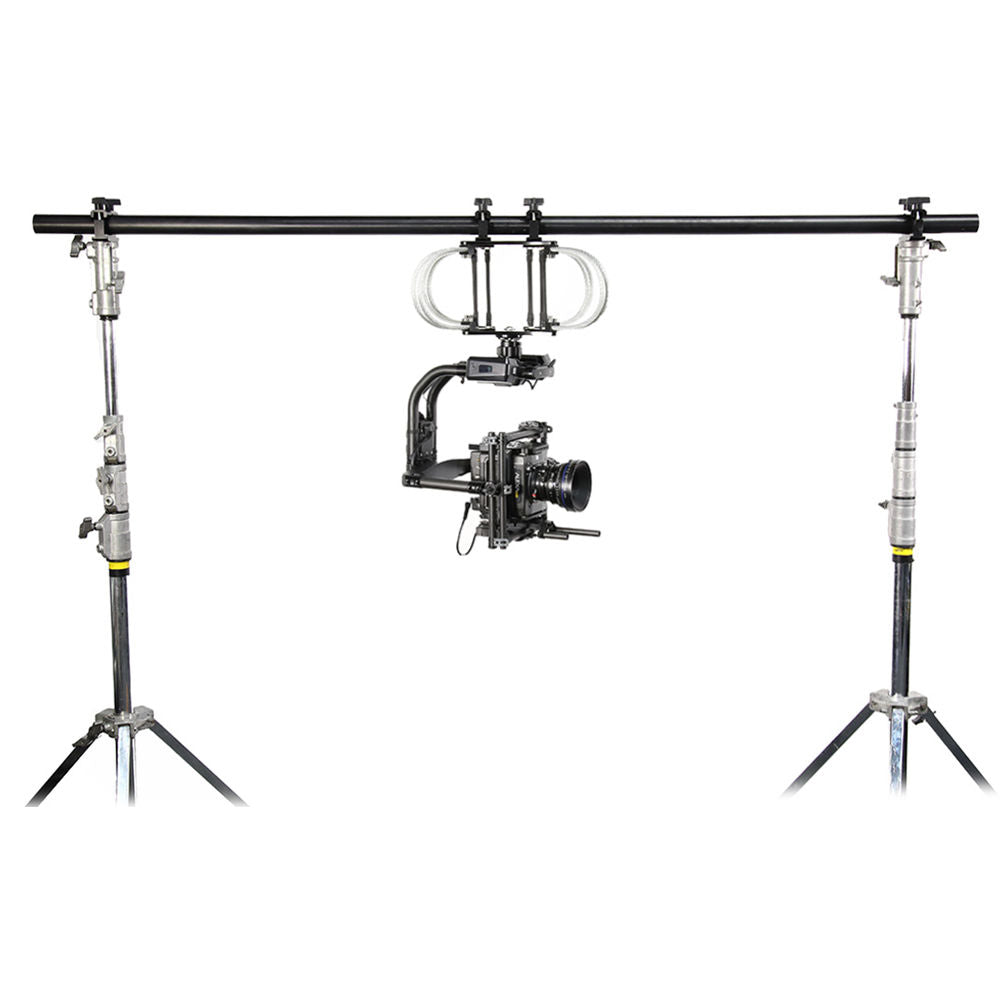

Distribute the weight of your heavier gimbal/camera rig between two people or create longer-running gimbal moves with the RigWheels Lightning Rod . This system suspends your gimbal rig from a Slingshot 20 Vibration Isolator mounted on a PortaRail, enabling each end of the pipe to be carried by an operator or grip.
The upturned "U" design of the pipe clamp enables you to quickly dock your rig using two separately available light stands. Supporting up to approximately 20 lb rigs, the Lightning Rod kit includes two 40" PortaRail sections, two pipe clamp light stand mounts, and two end caps in addition to the Slingshot 20.
RigWheels Cloud Mount Slingshot 20 Vibration Isolator
Capture smooth traveling vehicle shots by underslinging your gimbal camera rig weighing up to approximately 20 lb with RigWheels ' Cloud Mount Slingshot 20 Vibration Isolator . Especially suitable for setups where a hood, roof, or trunk mount is impractical, the Slingshot 20 adds elastic tubing to the standard Cloud Mount configuration for increased vibration isolation.
Additional components include two RigPlates, eight cables, tube connectors, wire cables, thumb knobs, bolts, and hardware. Like the rest of the RigWheels line, the modular Slingshot 20 features quick, reliable mounting and can be scaled to the size of your camera rig using additional components.
Features
- Supports camera/gimbal rigs up to approximately 20 lb
- Uses elastic tubing and wire cable for vibration isolation and support
- Includes two RigPlates, knobs, bolts, and hardware
- Modular system is easily modified using separately available components
RigWheels PortaRail Camera Slider Rod (40" Section)
The PortaRail Camera Slider Rod from RigWheels is a 40" section rod designed for the PortaRail collapsible dolly/slider rail system. The rod is 40" long and can be screwed together via the threaded connectors. The rod is constructed of 6061 aluminum and designed to provide more rigidity. Each piece goes through a 6 step process which makes them straight and round for precision camera movement. You can add as many sections as you need for longer shots. This rod can also be used with other suspended or ground-rail system that work with a 42mm outer diameter.
RigWheels PRC1 PortaRail Connector
The PRC1 PortaRail Connector from RigWheels is a connector used to connect PortaRail Collapsible Rail products.
In the Box
- RigWheels Cloud Mount Slingshot 20 Vibration Isolator
- 10 x Elastic Tube (5/16")
- 100 x SlingShot Zip Tie
- 3 x 3/8" Split Washer
- 4 x 5/16" x 1.5" Thumb Knob
- 2 x Variable-Size Pipe Clamp
- 2 x RigWheels RP01 RigPlate
- 8 x Vibration Isolator Cable Clamp
- 16 x Elastic Tube Connector (1/4"-20 x 1/2" Threads)
- 3/8" Bolt (3/4" Long)
- 3/8" Washer
- 8 x Vibration Isolator Cable (1/4 x 15")
- Limited 1-Year Warranty
- 2 x RigWheels PortaRail Camera Slider Rod (40" Section)
- Limited 1-Year Warranty
- RigWheels PRC1 PortaRail Connector
- Limited 1-Year Warranty
- 2 x Light Stand Pipe Clamp
- 2 x End Cap
- Limited 1-Year Warranty
- Description
- RigWheels Cloud Mount Slingshot 20 Vibration Isolator
- RigWheels PortaRail Camera Slider Rod (40" Section)
- RigWheels PRC1 PortaRail Connector
RigWheels Cloud Mount Slingshot 20 Vibration Isolator Specs
| Payload Capacity | Approximate: 20 lb / 9.1 kg |
| Cable Dimensions | Diameter x Length: 0.25 x 15" / 6.4 x 381 mm |
| Tube Diameter | 0.31" / 7.87 mm |
| Plate | Dimensions: Not Specified by Manufacturer Mounting Points: Multiple 1/4"-20, 3/8"-16 Threads Multiple 5/16", 3/8" Pass-Through Holes |
RigWheels PortaRail Camera Slider Rod (40" Section) Specs
| Outer Diameter | 1.65" (41.9 mm) |
| Length | 40" (1 m) |
| Weight | 3.5 lb (1.6 kg) |
RigWheels PRC1 PortaRail Connector Specs
| Dimensions | 2 x 2 x 2" (5.1 x 5.1 x 5.1 cm) |
| Weight | 0.2 lb (0.1 kg) |
