| ₹ 276.22 includes GST and import duties. | |
| B2B customers can avail ₹ 42.12 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The RT6158A converter is a high efficiency single inductor converter which can operate with wide input voltage such as battery which is higher or lower than the output voltage and it can supply the load current up to 2A. The maximum peak current in the switches is limited to a typical value of 4.5A. Feedback loop is internally compensated for both Buck and Boost operation and it provides seamless transition between Buck and Boost modes and optimal transient response. The Buck-Boost operates at 1.5MHz typical switching frequency in full synchronous operation.
- Input Voltage Range : 2.5V to 5V
- Adjustable Output Voltage : 2.1V to 5.2V by External Divided Resistors
- Up to 2A Maximum Load Capability for VIN = 3V, VOUT = 3.5V
- Up to 96% Efficiency
- OCP, OVP, OTP Protected Function
- 2MHz Switching Frequency
- 5µA Non-Switching Low Quiescent Maximizes Light Load Efficiency
- Forced PWM and Automatic PFM/PWM Mode Selection
- Output Fast Discharge Function
- Automatic/Seamless Step Up and Step Down
- Mode Transitions
Computers & Computer Peripherals, Portable Devices
Other details
| Brand | RICHTEK |
| Part Number | RT6158AWSC |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

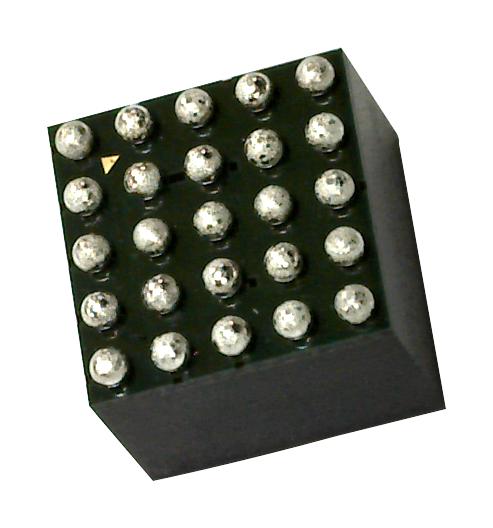

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 270.7 |
| 3-5 | ₹ 267.93 |
| 5-10 | ₹ 262.41 |
| 10+ | ₹ 256.88 |
Bulk discount will be automatically applied during checkout based on quantity.
