Description
RGBlink TAO 1mini Overview
Livestream from your PTZ or DSLR camera to platforms like YouTube, Facebook, and Twitch using this TAO 1mini-HN USB/HDMI Streaming Node from RGBlink. Its ultracompact, circular form factor with integrated 1/4"-20 threads allows you to mount it to the top of your camera of choice with a cold shoe adapter or simply place it on your desk without taking up valuable real estate. The 2.1" touchscreen can monitor and control your LAN or NDI streaming signal. One HDMI and one USB-C UVC input take up to 2K FHD video signals and transmit it to an HDMI output or LAN port.
A 3.5mm audio jack input can also connect a microphone for improved audio quality. For video transmission from your computer's webcam, use the USB-A 3.0 port. You can easily stream to 4 different platforms simultaneously using the separately available TAO app for mobile devices. The 1mini-HN supports both PoE and PD power via a USB-C port for easy integration into your preexisting livestreaming setup.
- Supports 2K Full ND and NDI|HX codecs
- Both encoding and decoding of 2K FHD video
- Backwards compatible with HD/SD resolutions
- Converts HDMI/UVC signals into NDI/RTMP/SRT
- Simultaneously livestreams to up to 4 platforms via mobile app
- 1/4"-20 threads for mounting
- Connect 64G U disk or 2TB SSD to USB 3.0 port

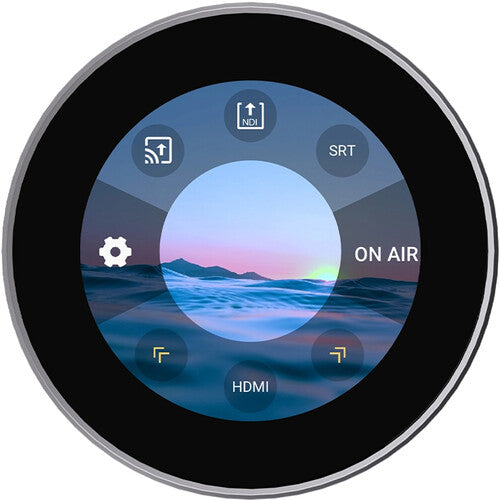

- 2.1" touchscreen monitors and controls signal
In the Box
- RGBlink TAO 1mini-HN USB/HDMI Streaming Node
- Power Adapter
- USB-C Cable
- 1/4"-20 to Cold Shoe Adapter
- Storage Case
- Limited 1-Year Manufacturer Warranty
RGBlink TAO 1mini Specs
| Video Inputs |
1 x HDMI (HDMI 1.3) Female
1 x USB-C (UVC) Female |
| Audio Inputs |
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Analog Female
|
| Video Outputs |
1 x HDMI (HDMI 1.3) Female
|
| Audio Outputs |
No
|
| Other I/O |
1 x RJ45 LAN Input
1 x USB-A Input |
| Expansion Slots |
No
|
| Latency |
HDMI Input: to 3 Frames
|
| Input Video Format |
HDMI (8/10-Bit 4:2:2 YUV)
1080p 30/50/60 fps 1080i 50/60 fps HD+ (1600 x 900) 60 fps 1360 x 768 60 fps FWXGA (1366 x 768) 60 fps SXVGA (1280 x 1024) 60 fps 1280 x 768 60 fps 720p 50/60 fps USB-C 1080p 24/25/30/50/60 fps 1360 x 768 60 fps SXVGA (1280 x 1024) 60 fps 1280 x 768 60 fps 720p 50/60 fps XGA (1024 x 768) 60 fps |
| Input Audio Format |
Analog
|
| Output Video Format |
HDMI
1080p 30/60 fps 1280 x 720 (Non-Standard WXGA) 30 fps 720 x 480 30 fps |
| Embedded Audio |
HDMI
|
| HDR Compatibility |
No
|
| Video IP Encoding |
H.264, H.265, MJPEG: x
|
| Video IP Decoding |
H.264, H.265, MJPEG: x
|
| Display Size |
2.1"
|
| Tally Light |
Yes
|
| Power I/O |
1 x USB-C (5 to 12 VDC) Input
|
| Power Consumption |
Device: 10 W
|
| Operating Temperature |
32 to 131°F / 0 to 55°C
|
| Operating Humidity |
5 to 85%
|
| Dimensions |
3.6 x 1.6" / 91 x 40.8 mm
|
| Weight |
6.3 oz / 180 g
|
