Description
RGBlink 190-0008-01-0 Overview

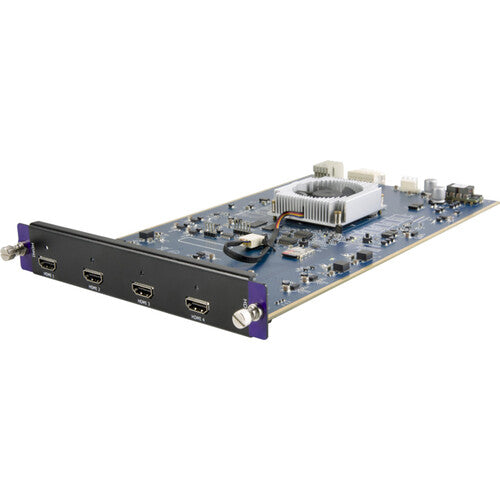

Add HDMI input to your X8 video processing chassis with this Quad HDMI 2.0 Input Module from RGBlink. This hot-swappable module features four HDMI 2.0 inputs that support video signals with up to UHD 4K60 resolution. It supports a maximum input resolution of 7680 x 4320 at 60 Hz via this module.
Key Features
- Fully modular architecture
- Each module supports four HDMI 2.0 inputs
- All the inputs send to the output for processing at the same time, which is different from X3|X7|X14, where only one of the 4K inputs sends to the output for processing
- Input resolution up to 7680 x 1080 at 60 Hz
- Support for hot swapping
In the Box
- RGBlink Quad HDMI 2.0 Input Module for X8
- Limited 1-Year Manufacturer Warranty
RGBlink 190-0008-01-0 Specs
General
| Compatibility |
RGBlink X8 Chassis
|
Inputs / Outputs
| Connector 1 |
4x HDMI 2.0 Inputs Female
|
| Connector 2 |
0x 0
|
| Resolutions |
SMPTE:
2160p: 60, 59.94, 50, 30, 29.97, 25 1080p: 60, 59.94, 50, 30, 29.97, 25 VESA: 640 x 480 60 Hz 800 x 600 75 Hz 1280 x 768 50/60 Hz 1280 x 1024 60 Hz 1360 x 768 60 Hz 1400 x 900 60 Hz 1400 x 1050 60 Hz 1600 x 1200 60 Hz 1680 x 1050 60 Hz 1920 x 1080 60 Hz 2048 x 1152 60 Hz 2560 x 812 60 Hz 2560 x 816 60 Hz 2560 x 1600 60 Hz 3840 x 1080 30/60 Hz 3840 x 2160 30/50/60 Hz 4096 x 2160 60 Hz 7680 x 1080 60 Hz 7680 x 4320 60 Hz |
Physical
| Dimensions |
12.3 x 7.5 x 1.2" / 312.34 x 191.6 x 29.6 mm
|
| Weight |
10.6 oz / 300 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
