Description
RGBlink 791-0020-24-0 Overview

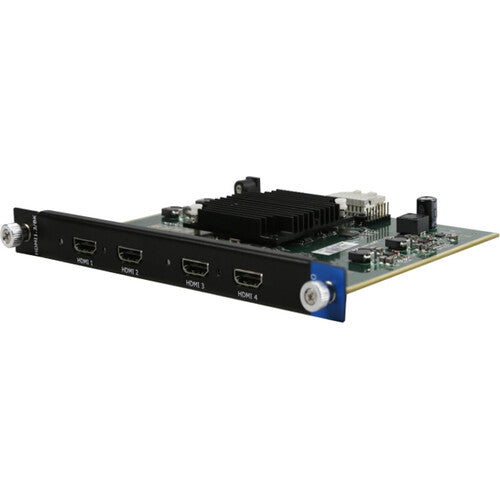

Add HDMI output to your Q16pro video processing chassis with this Quad HDMI 1.3 Output Module with OSD & Background from RGBlink. This hot-swappable module features four HDMI 1.3 outputs that support video signals with up to 1920 x 1080p60 resolution. The module also supports DVI signaling over HDMI, cropping, scaling, 8-layer roaming, background, and OSD scrolling, and it allows you to customize width or height up to 3840 on a single port.
Key Features
- Fully modular architecture
- Supports DVI or HDMI signal output
- Customize within 2.5m pixels for single port, width up to 3840, height up to 3840
- Single port supports up to 8 layers
- Supports cropping, scaling, and roaming of eight layers
- Supports background and OSD scrolling
- Supports hot swapping
In the Box
- RGBlink Quad HDMI 1.3 Output Module with OSD & Background for Q16pro
- Limited 1-Year Manufacturer Warranty
RGBlink 791-0020-24-0 Specs
General
| Compatibility |
RGBlink Q16pro Chassis
|
Inputs / Outputs
| Connector 1 |
4x HDMI-A 1.3 Outputs Female
|
| Connector 2 |
0x 0
|
| Resolutions |
SMPTE:
1080p: 60, 50, 30 720p: 60, 50 VESA: 800 x 600 60 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1280 x 1024 60 Hz 1600 x 1200 60 Hz 1920 x 1200 60 Hz Scaling up to 3840 Pixel Height, 3840 Pixel Width per Port |
| Features |
Cropping, Scaling, 8-Layer Roaming, OSD Scrolling, Background, DVI Signaling
|
Physical
| Dimensions |
7.9 x 6.3 x 0.8" / 199.5 x 160 x 20 mm
|
| Weight |
10.6 oz / 300 g
|
