Description
RGBlink 791-0020-03-0 Overview

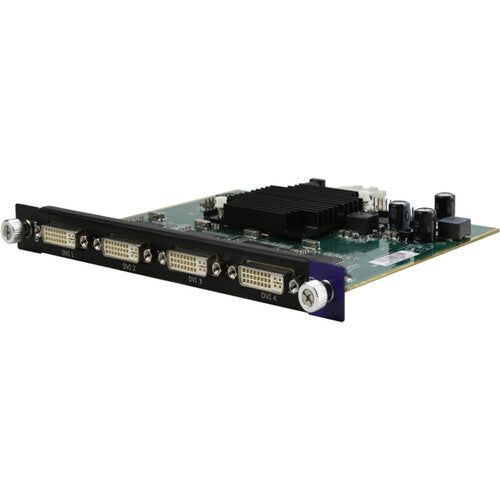

Add DVI-M input to your Q series Q16pro video processing chassis with this Quad DVI-M Input Module from RGBlink. This hot-swappable module features four DVI-M inputs that support up to 1920 x 1200 video at 60 Hz, cropping, parameter adjustment, and EDID management. With a separately available adapter, the card also supports VGA, YCbCr, and CVBS input signals.
Key Features
- Fully modular architecture
- Quad-independent standard DVI-M inputs
- Input resolution up to 1920 x 1200 at 60 Hz
- Supports cropping and signal parameter adjustment
- EDID management support
- Supports hot swapping
- Supports VGA/YCbCr/CVBS input signal with separately available adapter
In the Box
- RGBlink Quad DVI-M Input Module for Q16pro
- Limited 1-Year Manufacturer Warranty
RGBlink 791-0020-03-0 Specs
General
| Compatibility |
RGBlink Q16pro Chassis
|
Inputs / Outputs
| Connector 1 |
4x DVI-M Inputs Female
|
| Connector 2 |
0x 0
|
| Resolutions |
SMPTE:
1080p: 60, 50, 30 720p: 60, 50 VESA: 800 x 600 60 Hz 1024 x 768 60 Hz 1280 x 720 60 Hz 1280 x 800 60 Hz 1280 x 1024 60 Hz 1360 x 768 60 Hz 1440 x 900 60 Hz 1400 x 1050 60 Hz 1600 x 1200 60 Hz 1680 x 1050 60 Hz 1920 x 1080 60 Hz 1920 x 1200 60 Hz |
| Features |
Cropping, Signal Parameter Adjustment, EDID Management
|
Physical
| Dimensions |
7.9 x 6.3 x 0.8" / 199.5 x 160 x 20 mm
|
| Weight |
10.6 oz / 300 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 226242.8 |
| 3-5 | ₹ 223934.2 |
| 5-10 | ₹ 219317.0 |
| 10+ | ₹ 214699.8 |
Bulk discount will be automatically applied during checkout based on quantity.
